Operating Manual Light Control „PULSE HFMD - Vers. IV“ ENG
LED 1 2 3 4 5 6

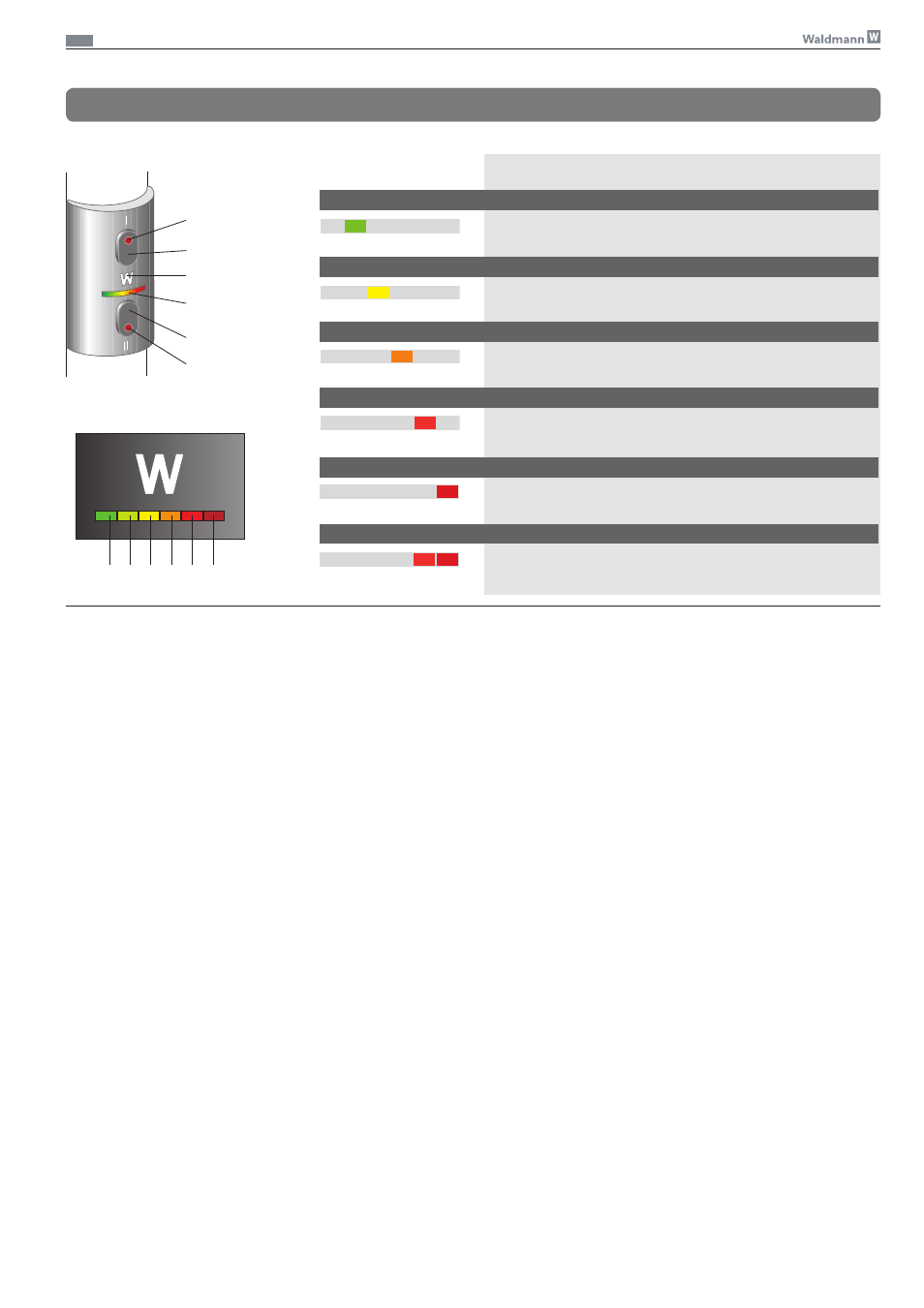

Fig. 6
Change basic settings - Level 1 (cont.)
Fig. 3
Key I
Logo
Light
bar
Key II
LED I
LED II
Activate function 2.2 Switch-on automatic ON/OFF
Logo is off
Bar display light green (LED 2)
Press key II once
Activate function 2.3 Dual sensors ON/OFF
Logo is off
Bar display yellow (LED 3)
Press key II twice
Activate function 2.4 Sensor LED ON/OFF
Logo is off
Bar display orange (LED 4)
Press key II 3 times
Activate function 2.5 Continuous operation ON/OFF
Logo is off
Bar display lightred (LED 5)
Press key II 4 times
Actuation Display
Activate function 2.6 Parameter setting protection ON/OFF
Logo is off
Bar display dark red (LED 6)
Press key II 5 times
Activate function 2.7 Special function ON/OFF
Logo is off
Bar display LED 6+5
Press key II 6 times
Change basic settings - Setting level 2 (continued)
