IV - 12

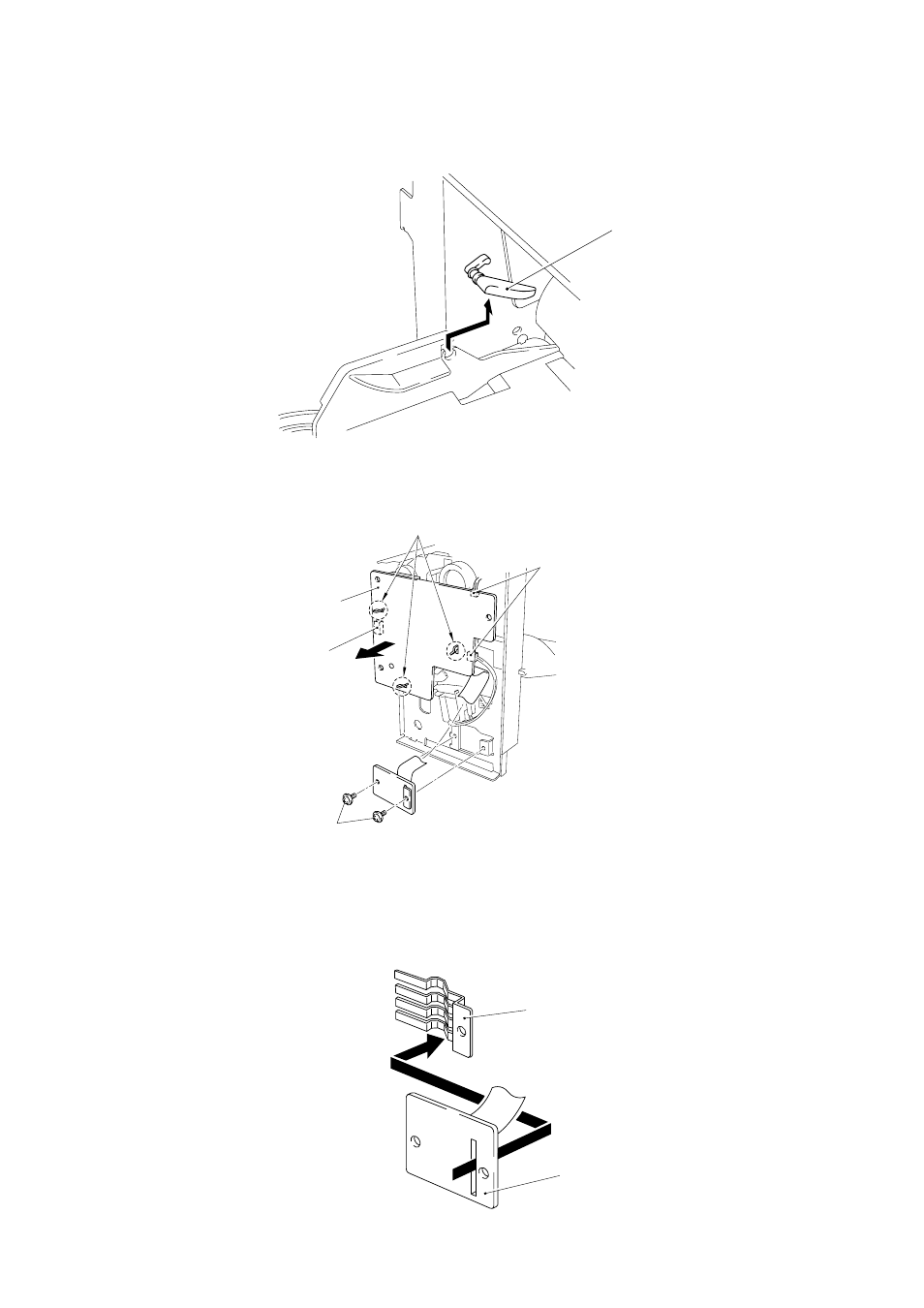

1.14 MP PE Sub Actuator
(1) Pull out the actuator upward from the MP tray assy (pay attention to the hook because it is fragile).
Figure 4.28
MP PE sub actuator
Figure 4.26
1.15 P Feed /Size-SW PCB Assy
(1) Put the 3 chassis L tabs to their original position.
Tabs
2 solenoid harness
connector
2 screws
Paper feed motor
harness connector
Figure 4.27
(2) Unplug the 2 solenoid connector and the paper feed motor harness connector.
(3) Loosen the 2 screws of the size-sw PCB.
Size-switch spring
Size-SW PCB
1.16 Side-Switch Spring
(1) Pull out the size-switch spring.
P feed/ size -SW PCB assy
