IV - 3
PRINTER BODY

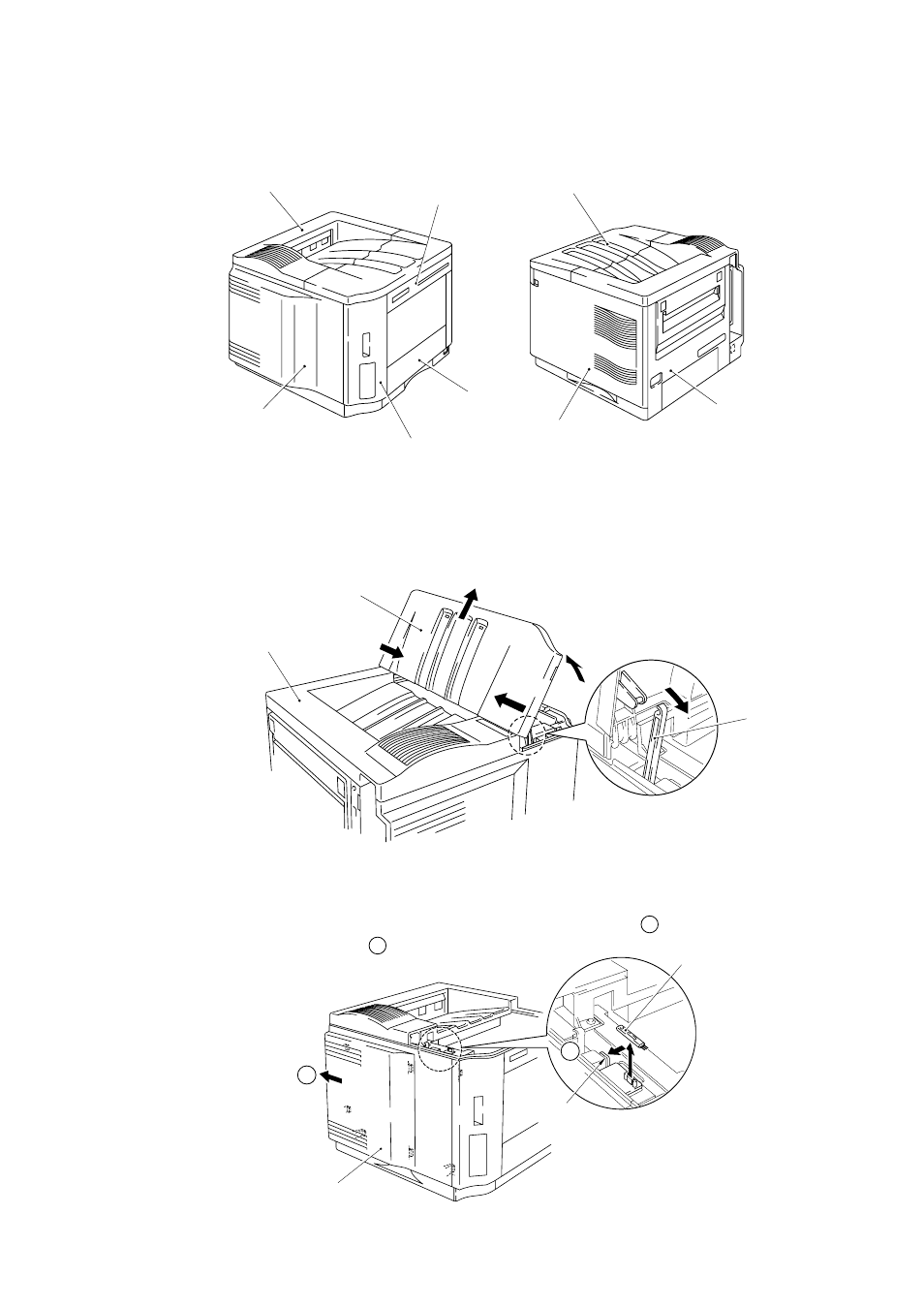

1.1 Configuration
Figure 4.1
1.2 Toner Cartridge Lid
(1) Remove the supporter from the toner cartridge lid.
(2) Remove the toner cartridge lid from the upper cover.
Figure 4.2
1.3 Side Cover L
(1) Release the lock by pinching the lever on the left top surface ( A ) and remove the cover
by pulling it rearward ( B ).
Figure 4.3
Toner cartridge lid Upper cover assy
Control panel unit
Side cover L
Paper tray
Rear cover assy
Cleaner brush
Hook lever
Side cover L
A
Open the toner
cartridge lid
Supporter
Upper cover assy
Toner cartridge lid
Side cover R
B
Font cover assy
