IV - 7

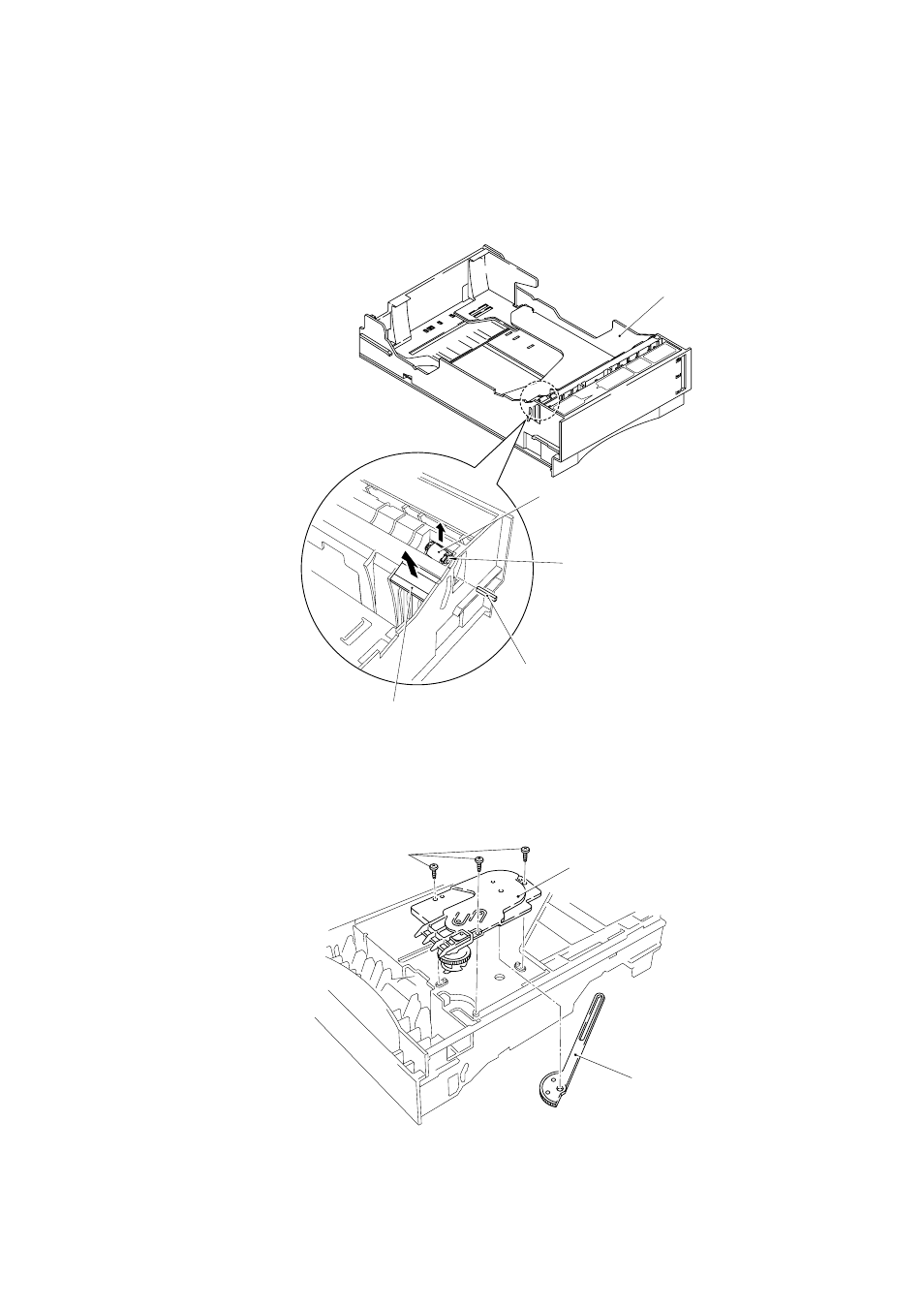

1.36 Paper Tray
(1) Release the roller holder fixing pawl and remove the roller holder by pulling it out
upward.
(2) Remove the roller.
(3) Remove the separation pad assy (pull it out by turning it) .
Separation pad assy and spring
Roller holder fixing pawl
Paper tray
Roller holder
Roller
Figure 4.14
Figure 4.15
Screws
Tray gear holder
Gear 56T link
(4) Remove the tray gear holder from the other side by loosening the 3 screws and remove the
gear 56T link.
