Pathport Manager User’s Guide
51

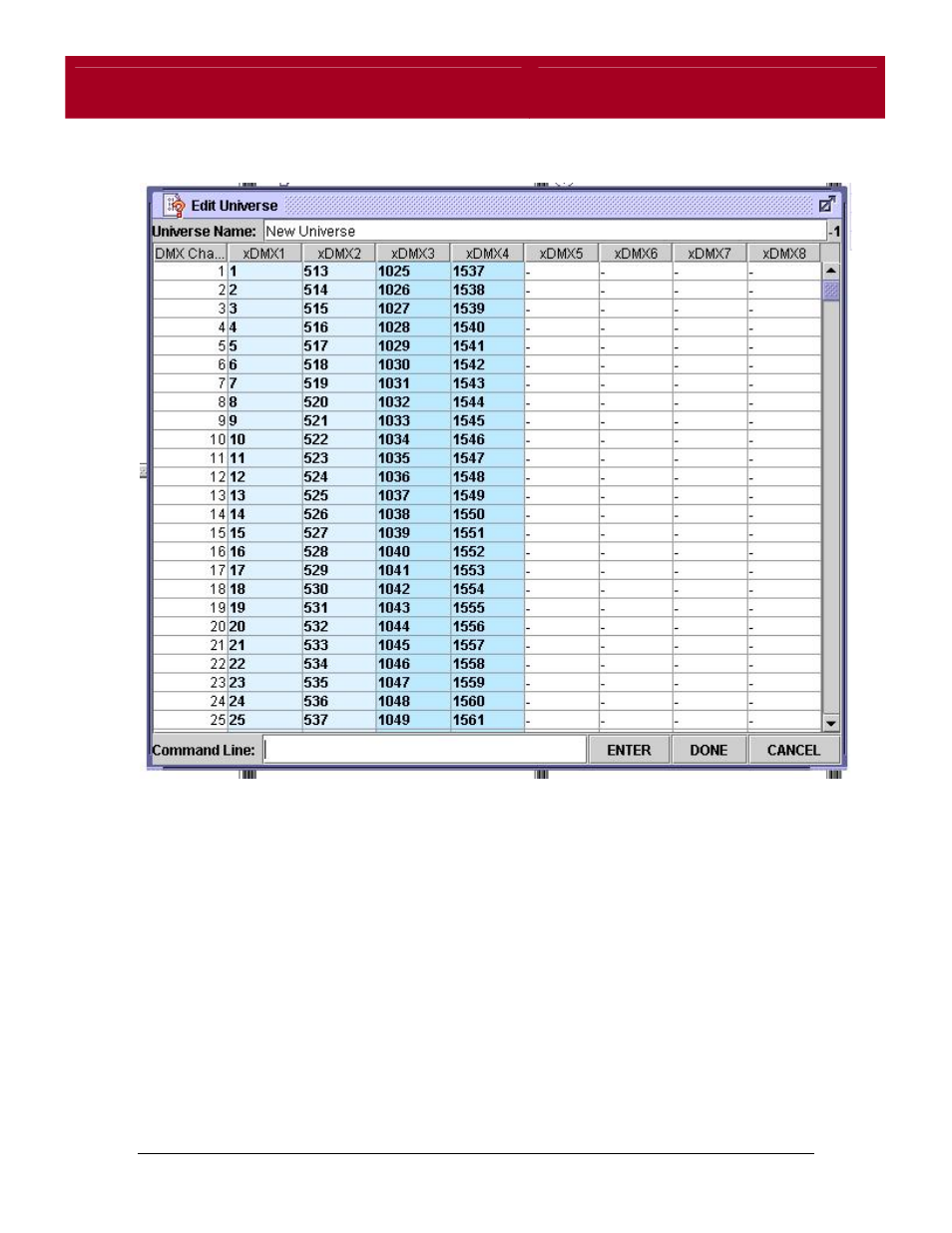

This creates:
Note the 2 sets of 2 equal-priority columns of Patch Elements. The result of this
patch would mean that if either Source 1 or Source 2 became active, The DMX
transmitted would be the HTP result of Sources 1 and 2 -- Sources 3 and 4 would
be ignored. If Sources 1 and 2 were not active, the DMX transmitted would be
the HTP result of Sources 3 and 4.
E DITING AND A PPENDING U NIVERSES
Just as in simple universe creation, the Patch Elements for a given DMX channel
can be replaced with a single channel.
Since it is sometimes inconvenient or undesirable to enter long commands into
the command line, Patch Elements can also be added to a universe without
deleting existing elements.
