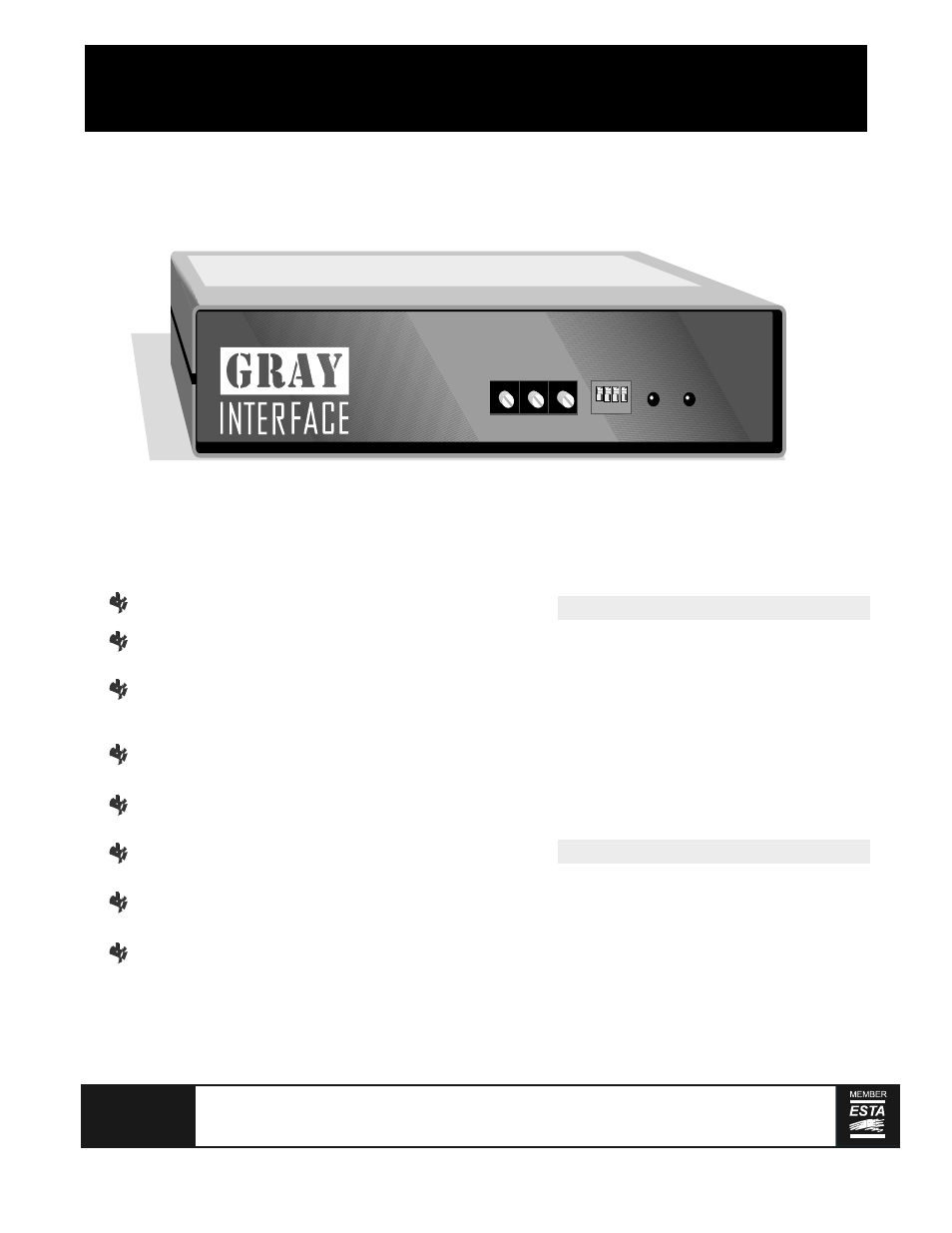

Pathway #8721, 8723, 8725, 8741, 8743, 8745 User Manual
Dmx manual decoder dmx manual decoder, Gray
Connect DMX512, AMX192 or Strand D54 control systems to analog dimmers
Microprocessor-based electronics
Rotar y address switch selects unit address in
one-dimmer increments
Selectable status quo memor y retention feature
maintains output levels at last known values for
five minutes upon loss of input control signal
Auto recognition of control protocol on 24
channel models
User-configurable positive or negative analog
outputs on 48 channel models
LED indicators for control signal detect and
microprocessor status
Built in output test function allows dimmers to
be turned on from front panel switches
19 inch rack mount kit available
8721
8723
8725
8741
8743
8745
8700
- DMX512 input, 24 channel output
- AMX and DMX inputs, 24 channel output
- D54 and DMX inputs, 24 channel output
- DMX512 input, 48 channel output
- AMX and DMX inputs, 48 channel output
- D54 and DMX inputs, 48 channel output
- 19" rack mount bracket kit
Dimensions, 24 ch: 203mm x 44mm x 165mm ( 8" x 1 / " x 6 / " )
3
1
4
2
48 ch: 203mm x 44mm x 279mm ( 8" x 1 / " x 11" )
3
4
Shipping weight, 24 channel: 1.3 kg (2.9 lbs)
48 channel: 1.5 kg (3.3 lbs)
Power supply: 9-12 VDC @ 250mA (adapter incl.)
DMX
Manual
Decoder
DMX
Manual
Decoder
SPECIFICATIONS
MODEL DESCRIPTION
X 100 X 10
X 1
made in Canada
address select
mode
pow
e
r
da
ta
4
3
2
1
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
D M X D e c o d e r
visit us at
www.gray-interfaces.com
GRAY
Gray Interfaces, 480C - 36 Avenue S.E.,
Calgary, AB T2G 1W4 Canada
tel (403) 243-8110 fax (403) 287-1281
Printed in Canada
