Media Technology Systems ION8.8 User Manual
Page 19
Page 19 of 26
Jul‐09

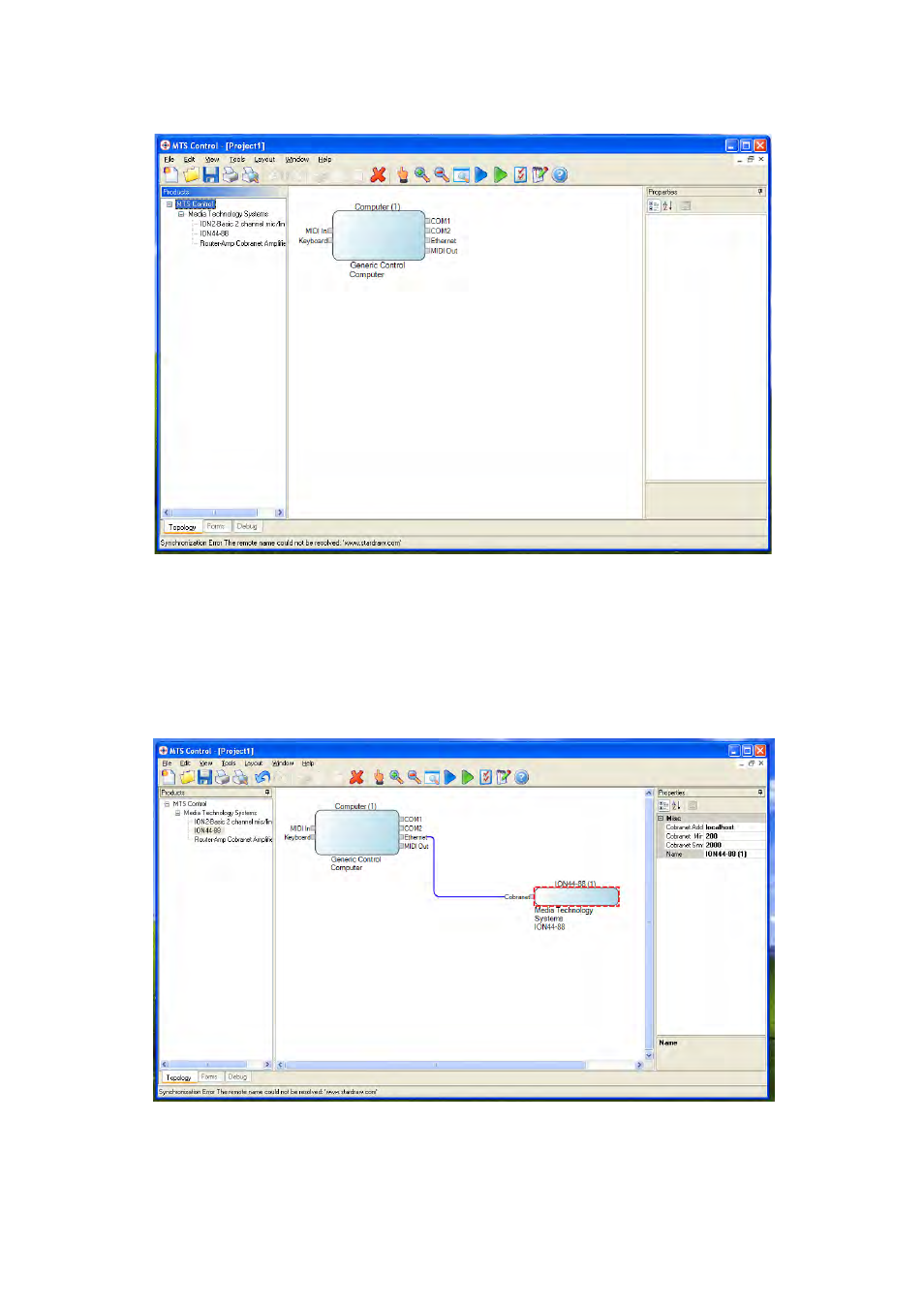

Figure 5-3: MTS Control – Main Screen
The
devices
in
MTS
Control
are
the
Serial
and
Network
Amplifiers,
as
well
as
the
ION
interfaces.
This
manual
covers
the
ION4.4
and
ION8.8,
but
the
techniques
are
equally
applicable
to
all
devices.
Adding
a
device
is
simple,
drag
the
ION4.4/ION8.8
icon
across
to
the
main
panel
and
then
drag
a
wire
from
the
Ethernet
port
of
the
Computer
to
the
Cobranet port of the ION4.4/ION8.8 – see
Figure 5-4 below.
Figure 5-4: Adding a device
As
many
devices
as
needed
can
be
added
to
the
panel
and
connected
to
the
Ethernet
port
of
the
Computer.
