B-3-12 ALARM SETTING
The integrated high speed dome provides eight alarm inputs and two alarm
outputs (N.O. and N.C.) to connect alarm devices. With this function, dome will
cooperates with alarm system to catch the event images. For wiring, please refer
to the installation guide and/or qualified service personnel. Alarm parameters can
be set on this page.
♦ ALARM PIN
The dome provides 8 alarm inputs and 2 outputs ( 1 x N.O. and 1 x N.C.).
Select an alarm connector which you want to set its alarm-related parameters
with this item, and then set its alarm-related parameters in Alarm Setting
menu.
♦ ALARM SWITCH
The item is used to enable or disable the selected alarm pin function.
♦ ALARM TYPE

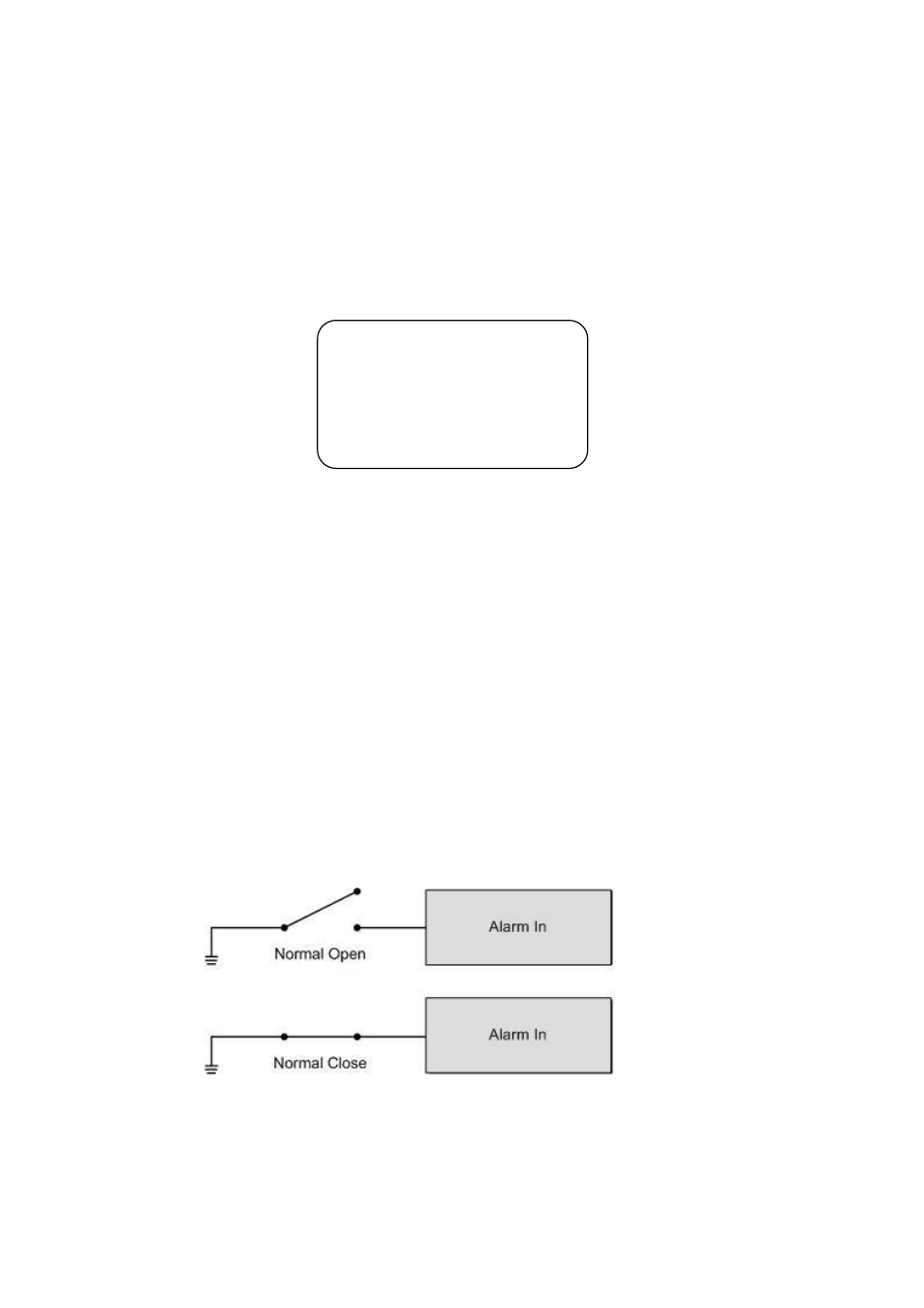

There are two kinds of alarm types: Normal Open and Normal Close, which
are illustrated as below. Select an alarm type that corresponds with the alarm
application.
ALARM SETTING
ALARM PIN 1
ALARM SWITCH OFF
ALARM TYPE N.C.
ALARM ACTION PRESET
PRESET POINT 001
DWELL TIME ALWAY
EXIT YES
