31
A-8-2 Corner Thin/Wide Box Mounting
The thin/wide corner box is designed to be installed with a gooseneck tube. Follow
the steps to mount the dome camera with the corner box and gooseneck tube.
1) Make a cable entry hole on the wall to recess the cables. Otherwise, cables can
be threaded through the cable entry hole on the tube
2) Fix the suspension bracket on the wall
3) Attache the gooseneck tube to the firmly fixed bracket
4) For installation of the cables, Indoor Mount kit and the dome unit, refer to
section A-7-1 as the steps are the same as for gooseneck mounting.

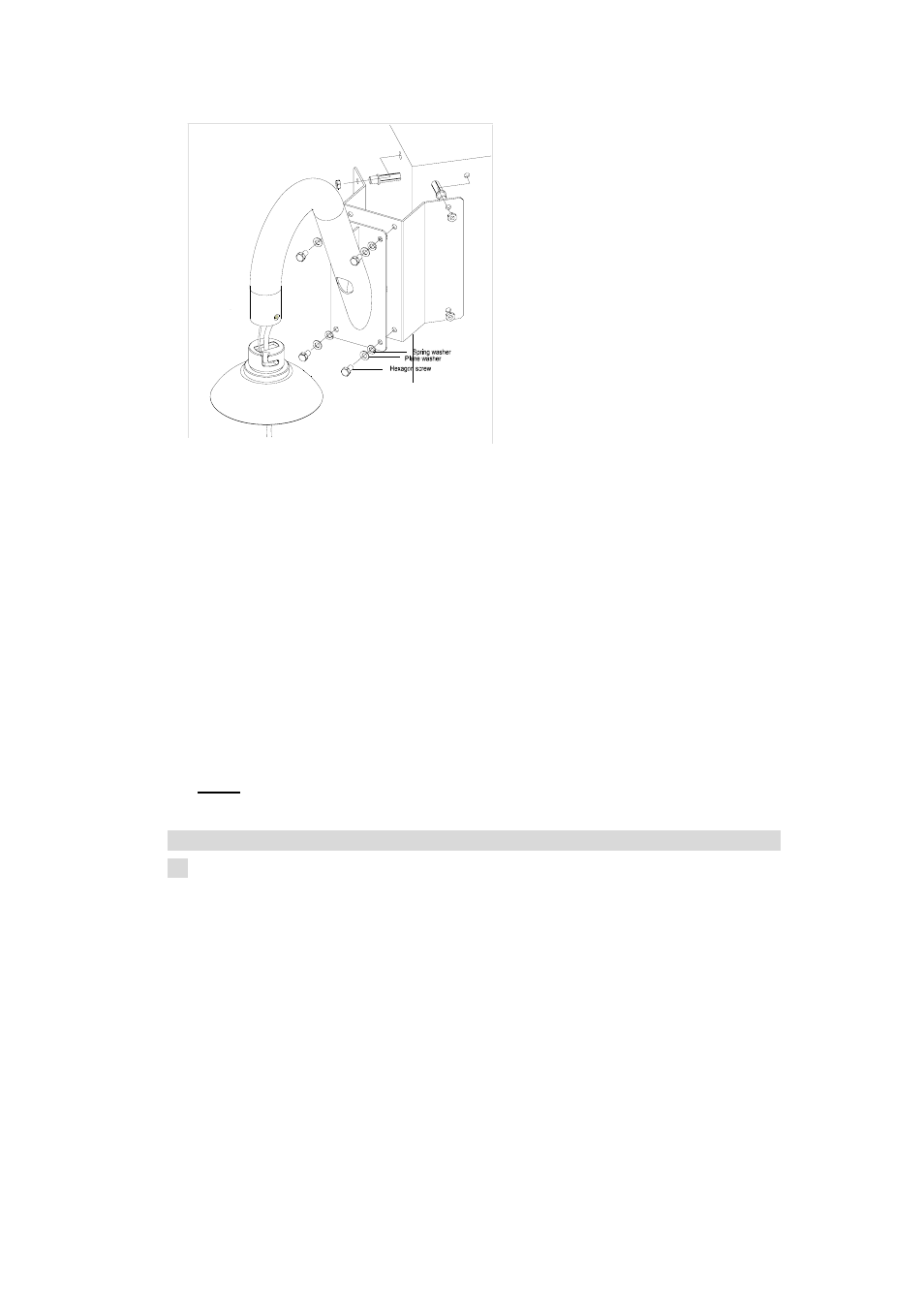

Corner Box Mounting: Corner Thin/Wide Box + Gooseneck Tube + Indoor Mount
Kit
