iDM70

EN - 18

4.12. Distance

measurement with thresholds

The instrument measures distance continuously by
fixing two thresholds (a) and (b) in order to precisely
define the position of objects along a radial line

1. With the instrument in stand-by, press the

key to

select the type of reference (see § 4.2)

2. Press and hold the

key for 2 seconds to enter

the measuring section with dimensions. A flashing
indication of the size (a) appears on the display

3. Use the

keys to set the value of size (a)

between 5cm and 60m. Keep the keys pressed to
carry out a quick setting of the values. Confirm the

value of size (a) with key

. A flashing indication of

the size (b) appears on the display

4. Use the

keys to set the value of size (b)

between 5cm and 60m. Keep the keys pressed to
carry out a quick setting of the values. Confirm the
value of size (b) with key

. A flashing indication of

the dimension (a) appears on the display

5. Press the

key or the side MEAS key to

measure. The value of distance in real time is shown
on the resulting display

6. Slowly move the instrument along the radial line,

observing the measured value (see Fig. 13). The
instrument shows the arrows

 or  to indicate the

direction in which to proceed and starts sounding at
a distance of 0,1m from the thresholds (a) and (b)
fixed, giving out a continuous sound when threshold
is reached. Measurement has a duration of approx.

1 minute and may be stopped by pressing the

key

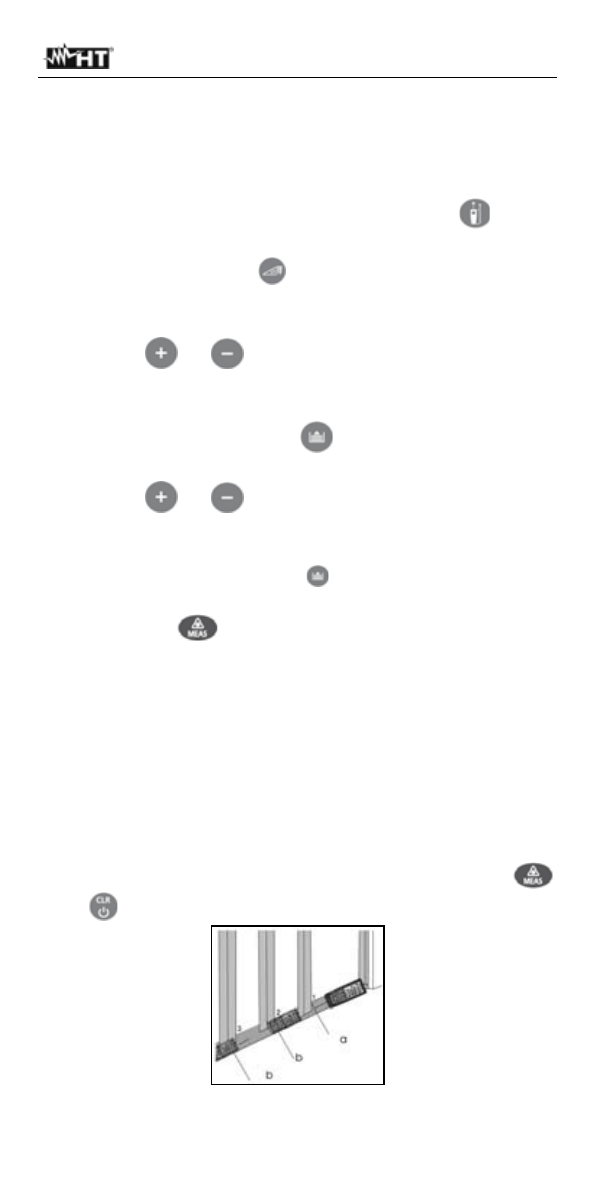

Fig. 13: Distance measurement with thresholds
