4.9. Indirect 3-point measurement
The instrument performs indirect 3-point measurement
in two different modes, described below.
Mode “ ”
1. With the instrument in stand-by, press the key
to select the desired type of reference (see § 4.2)
2. Press the key twice to enter the indirect 3-point
measuring section. The symbol “ “ appears on the
display with side “1” flashing
3. Position the instrument in the lowest point (1) of
measurement (see Fig. 10) and press the key
or the side MEAS key. The result appears on the
first partial display. The symbol “ “ appears on the
display with side “2” flashing
4. Position the instrument as horizontally as possible
(2) and press the key or the side MEAS key to
measure. The result appears on the second partial
display. The symbol “ “ appears on the display
with side “3” flashing
5. Position the instrument in the highest point (3) of
measurement (see Fig. 10) and press the key
or the side MEAS key to measure. The result
appears on the second partial display
6. The final value of the result obtained with the
combination of previous measures is shown on the
resulting display
7. Measuring result is automatically saved in the
instrument's memory

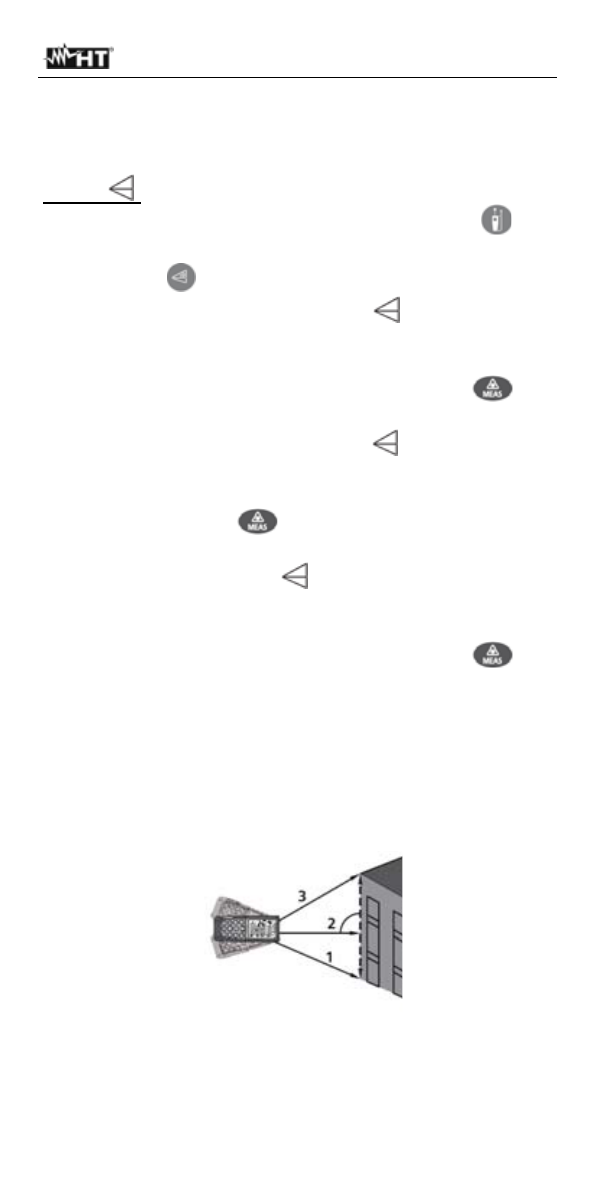

Fig. 10: Misura Indiretta a 3 punti – Modo 1
