H200/H200HF Diagnostic and History Screens provide the
water treatment operator with a wealth of information.
DIAGNOSTIC 5
DIAGNOSTIC 6
DIAGNOSTIC 7
DIAGNOSTIC 7-B
WS2H Control Valve Manual Page 21

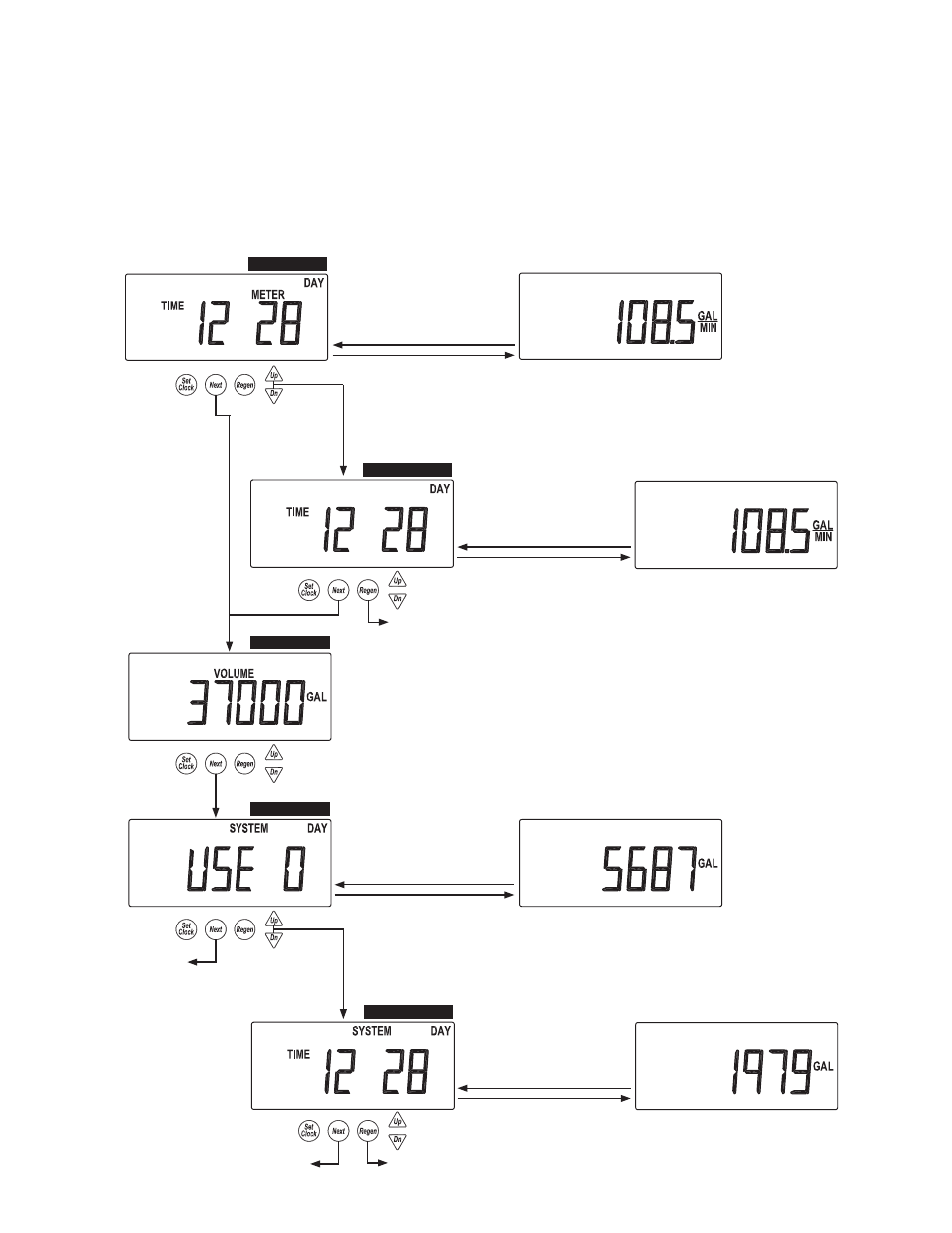

Diagnostic Screens (continued)
DIAGNOSTICS 5
Maximum fl ow rate
for the last 28 days.
Max fl ow rate of the day
DIAGNOSTICS 5-B
Hourly history of maximum
fl ow rate. Use the UP and
DOWN arrow to select the
hours of the day from screen 5.
Max fl ow within the selected hour
DIAGNOSTICS 6
Total volume through the unit.
DIAGNOSTICS 7
System totalizer for the last
63 days. Only displays in a
master unit.
System use for that day
DIAGNOSTICS 7-B
Hourly system totalizer. Use
the UP and DOWN arrow to
select the hour of the day from
screen 7.
Total system fl ow for the selected hour
Simultaneously press
UP and DOWN.
Automatically Toggles
Automatically Toggles
Automatically Toggles
Simultaneously press
UP and DOWN.
Return To
Normal Operation
Automatically Toggles
Return To
Normal Operation
Diagnostics 7
DIAGNOSTIC 5-B
Diagnostics 5
