Hellenbrand H200HF Series User Manual

Page 10

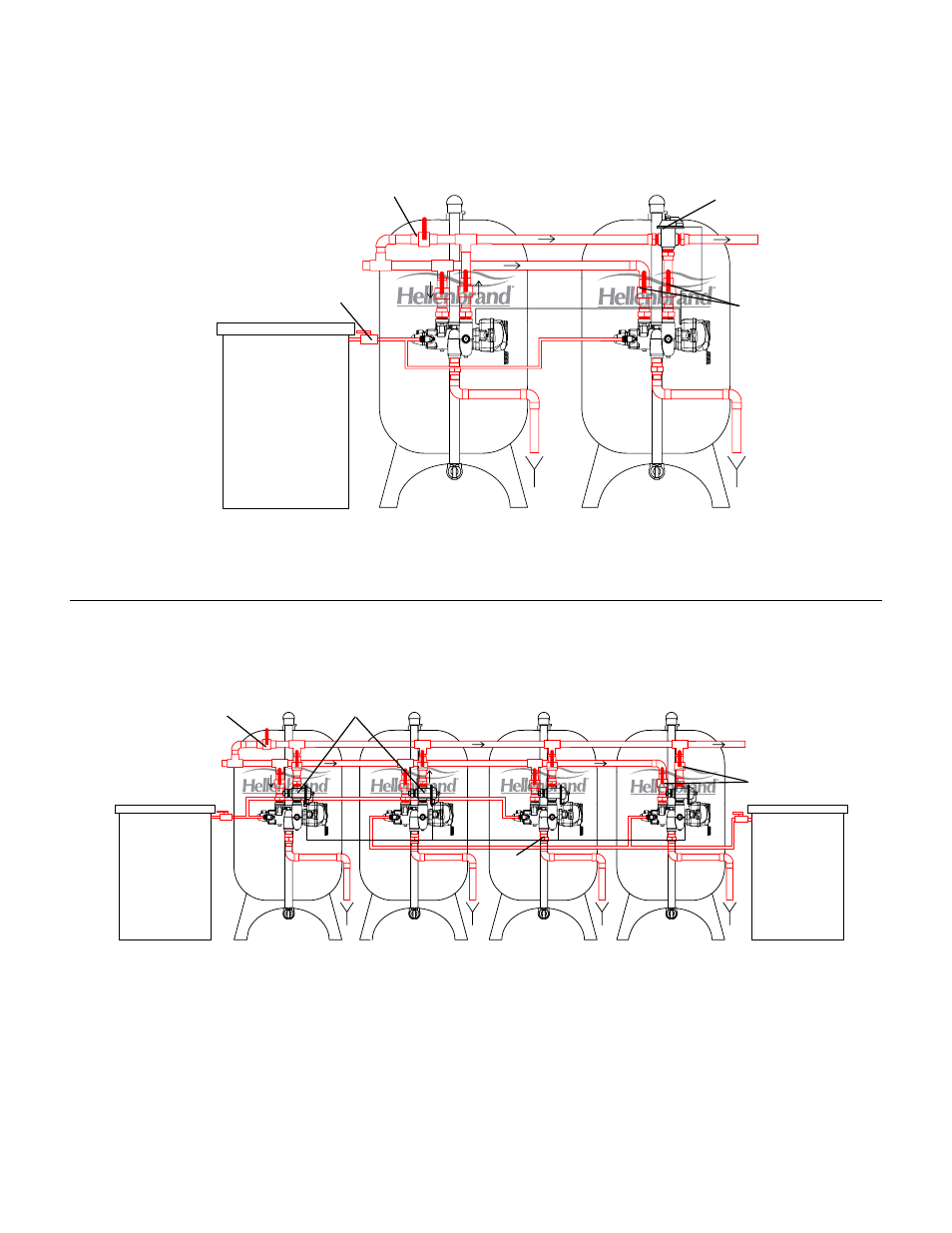

H200 Twin Alternating - Side Mount

H200 Twin/Triplex/Fourplex Installation - Side Mount
First-in, Last-Out Piping Arrangement.

Brine Tank

See NOTE Figure 7

Figure 6

Brine Tank(s)

Figure 7

NOTE:

System connections to the tank must accommodate longitudinal movement between side, top and bot-

tom openings, flexibility in piping or flex connectors are recommended.

Red colored piping, fittings, and connectors are for reference only and are not included. Must be fur-

nished by others.

Union type connectors are recommended on the inlet and outlet connections.

1" Brine Line must be hard-piped, secured and supported for proper operation. CPVC or Schedule 80 PVC

recommended.

Inlet

Bypass Valve

Outlet

Isolation

Valves

MAV Valve

Inlet

Bypass Valve

MAV Valves

DLFC

Outlet

Isolation

Valves

Shut-Off Valve

MAV = Motorized Alternating Valve.

Brine Tank(s)
