• Solid state microprocessor can control from
one to four units allowing you system add on
capabilities as your needs grow.
• Regeneration may be initiated with a time
clock, meter delayed or meter immediate.
• Up to nine fully programmable cycle times, that
can be moved around and repeated in various
orders for your particular application needs.
• Soft water brine refill reduces build up in brine
tank from hardness and iron present in the raw
water supply.
• Easy to use user screen shows Time of Day,
Current Flow Rate, Total Gallons Processed
and Volume/Days until Regeneration.
• Solid state microprocessor has a removable
POD display allowing you to remote mount the
POD on top-mounted systems for easy access.
• Economical built-in electronic meter on H200
Series requires no extra piping.
• Economical remote mount electronic meters
are available in a wide variety of sizes for the
H200HF Series.
• Both two-inch FPT and 2.5” Victaulic Inlet/
Outlet are standard on the H200 Series.
• Lead free brass body with NSF Approved Food
Grade Electro-Deposited Epoxy Coating to pro-
tect internally and externally against corrosion.
• Corrosion free Noryl® backplate.
• Nema 3 Enclosure
• Optional Calendar Day Override from 1-28 days.
The H200 / H200HF is powerful, easy to use and packed with benefits
• 24-Volt output AC adapter is safe, comes with
a 15-foot cord for easy installation.
• Reliable and proven DC drive from our family
of H-Series Systems.
• Capacitor back-up with up to 24-hour power
carry over.
• Optional System Control Board enables the
addition of a third and fourth unit to be imple-
mented into the system design. In addition
the system board can be utilized to operate
external devices like chemical feed pumps,
booster pumps, and to lock out an R.O. sys-
tem. The available two sets of normally open
& normally closed auxiliary outputs can be
activated after the start of a regeneration, after
the start of a specified regeneration cycle, on
a set number of gallons during service, on a
set number of gallons during service, on a set
number of gallons during service & regenera-
tion mode, while in standyby & regeneration
mode with a multi-tank system, or if a unit
would be in an Error Mode.
• Motorized Alternating Valve "MAV" Provides:
• Twin Alternating for H200 Top or Side
Mount Systems.
• Provides for no Raw Water By-Pass
during regeneration for H200 Top or
Side Mount Systems.
• Provides choices of treated or non-
treated water for regeneration.
• Separate source regeneration.
3

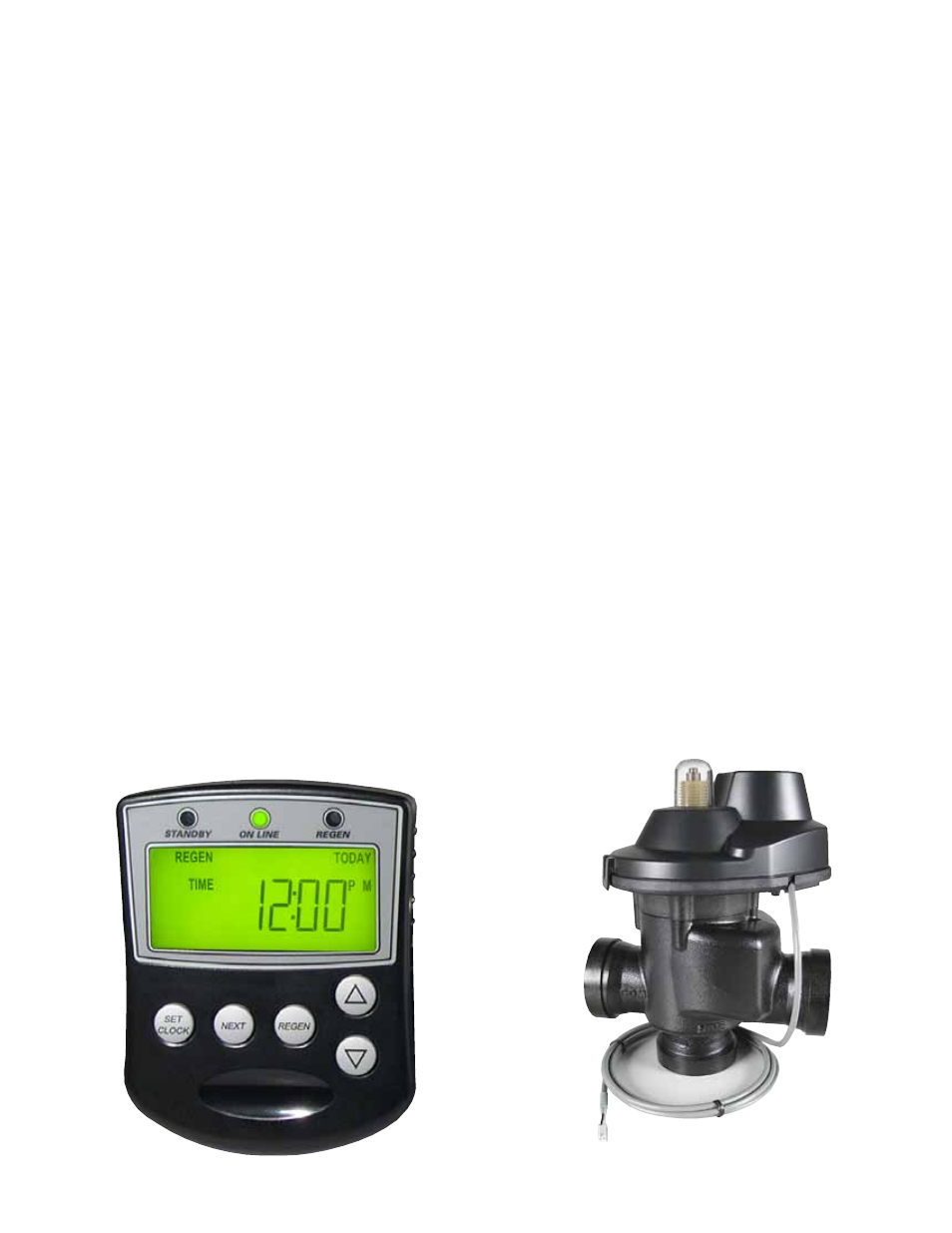

2" Motorized Alternating Valve "MAV"
Requires System Board For Operation
Removable POD Display
