PPC-37xxA-N26 Panel PC
Page 29
Step 3: Attach the HDD to the HDD bracke t. To do this, align the four retention screw
holes in the HDD bracket with the retention screw holes on the bottom of the
HDD. Insert four retention screws into the HDD bracket and fasten them.
(Figure 3-13).

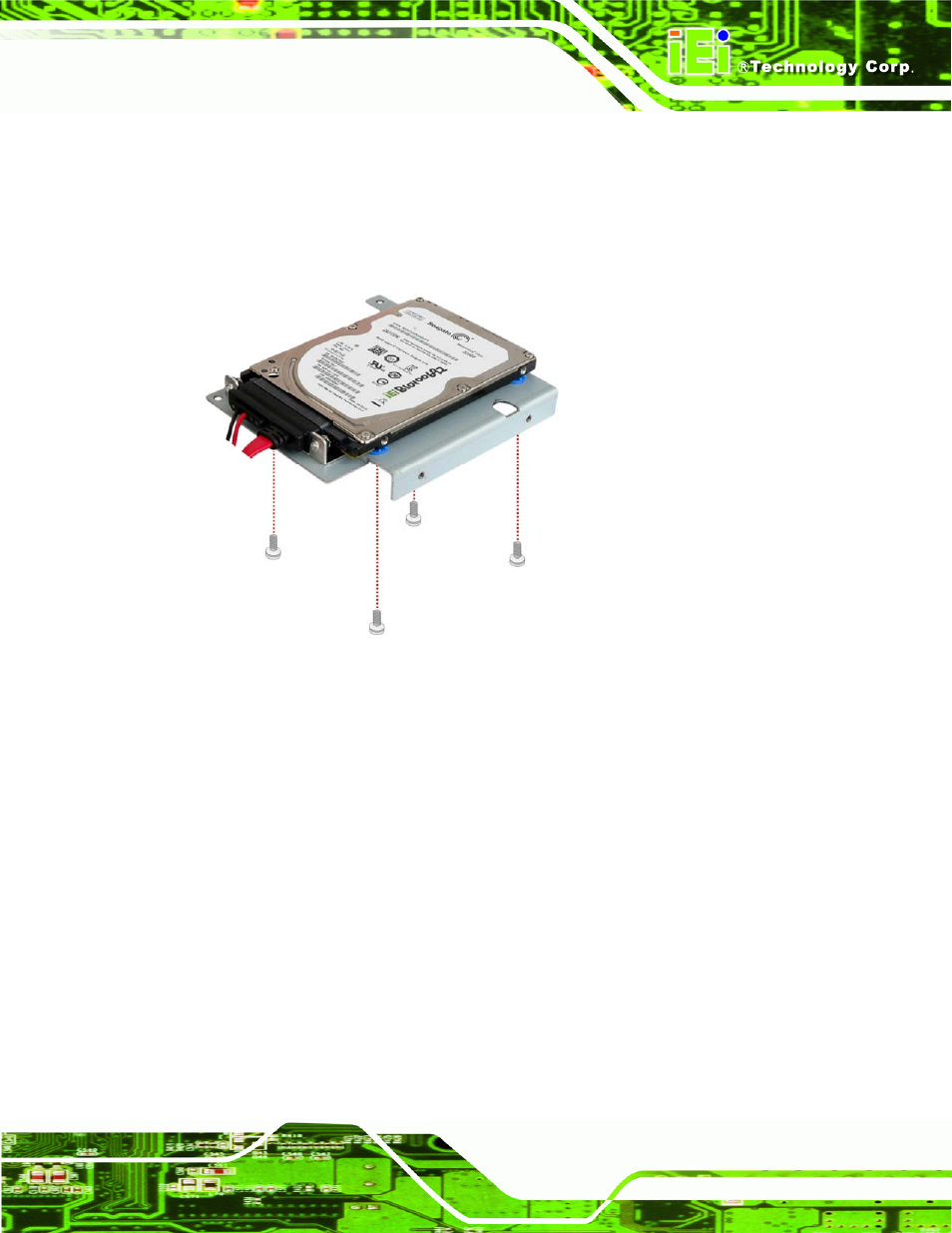

Figure 3-13: PPC-3708A-N26 HDD Retention Screws
Step 4: Install the HDD bracket (with hard drive and SATA cable attached) into the
PPC-3708A-N26 and fasten the four HDD bracket screws. (Figure 3-14.)
