1.4 External Overview

The PPC-37xxA-N26 panel PC is comprised of an LCD screen, aluminum front panel and

heavy duty steel rear and side panels. The rear panel provides screw holes for wall and an

arm mounting. The bottom panel provides access to external interface connectors that

include GbE, USB 3.0, USB 2.0, audio, serial port connectors, VGA port and HDMI port.

1.4.1 Front Panel

The front panel of the PPC-37xxA-N26 (Figure 1-2) is a flat panel TFT LCD screen

surrounded by an aluminum frame.

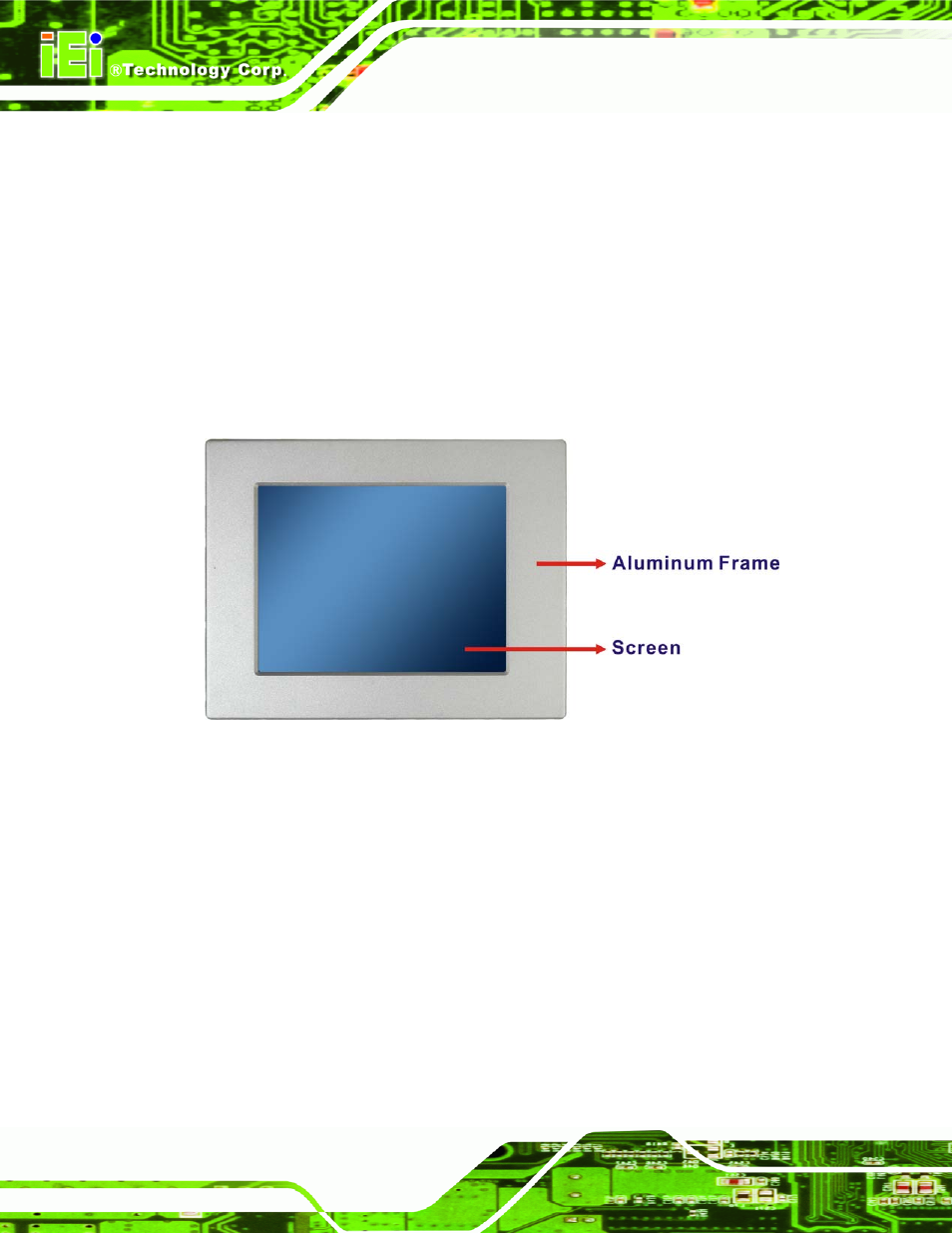

Figure 1-2: Front View

1.4.2 Rear Panel

The rear panel contains some vents for ventilation, four VESA standard mounting holes

and several retention screw holes. The VESA mounting holes are circled in Figure 1-3.
