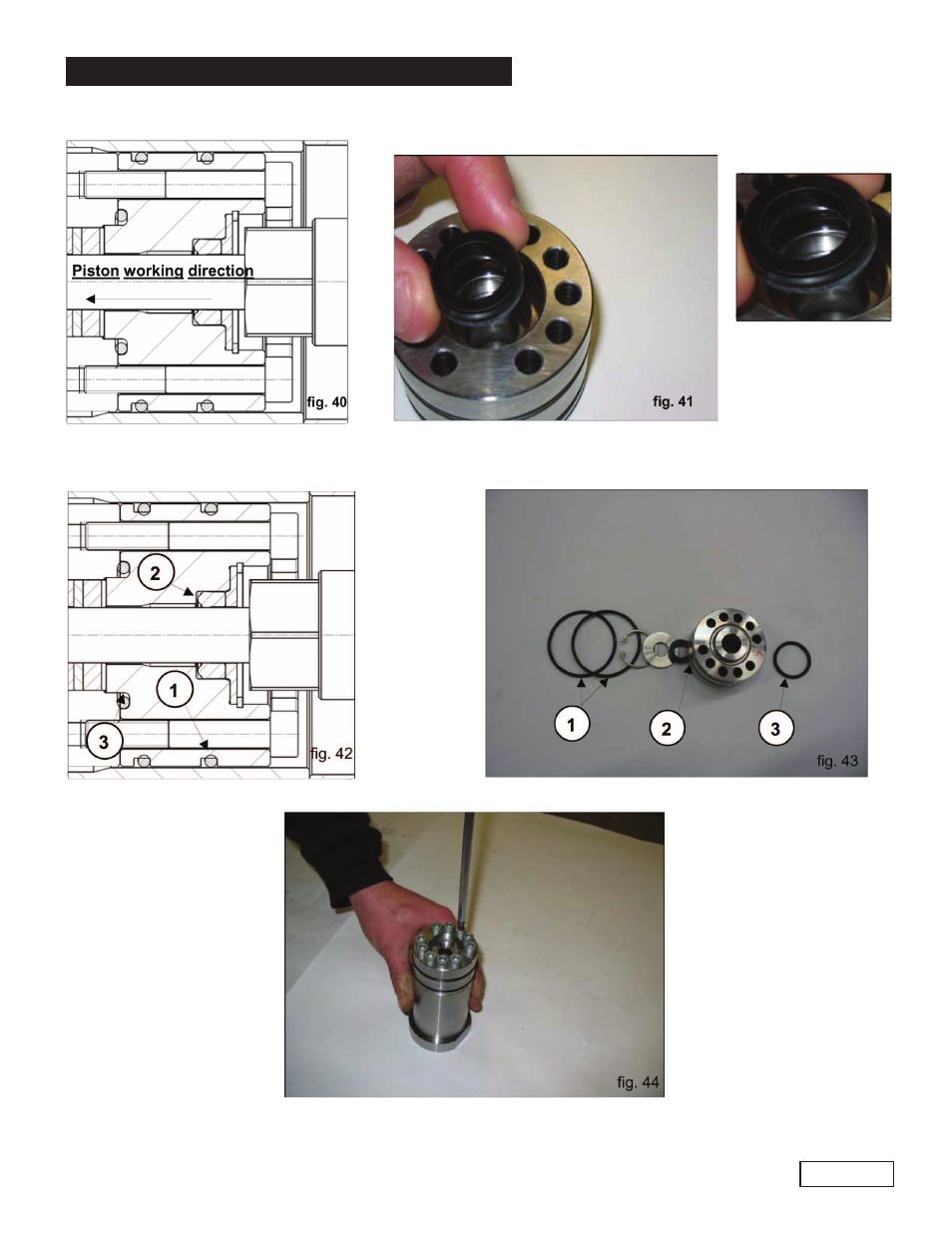

Reassemble the seals support unit as shown in Fig. 42 and fig. 43, replacing #1, #2 and #3.
E)
Assemble the support-liner unit by manually screwing the M6 x 40 screws as shown in
fig. 44, then proceed with calibrations using a torque wrench as indicated in 3.
