Vf series – General Pump VF Repair Manual User Manual
Page 13
GENERAL PUMP
A member of the Interpump Group
VF SERIES
B)

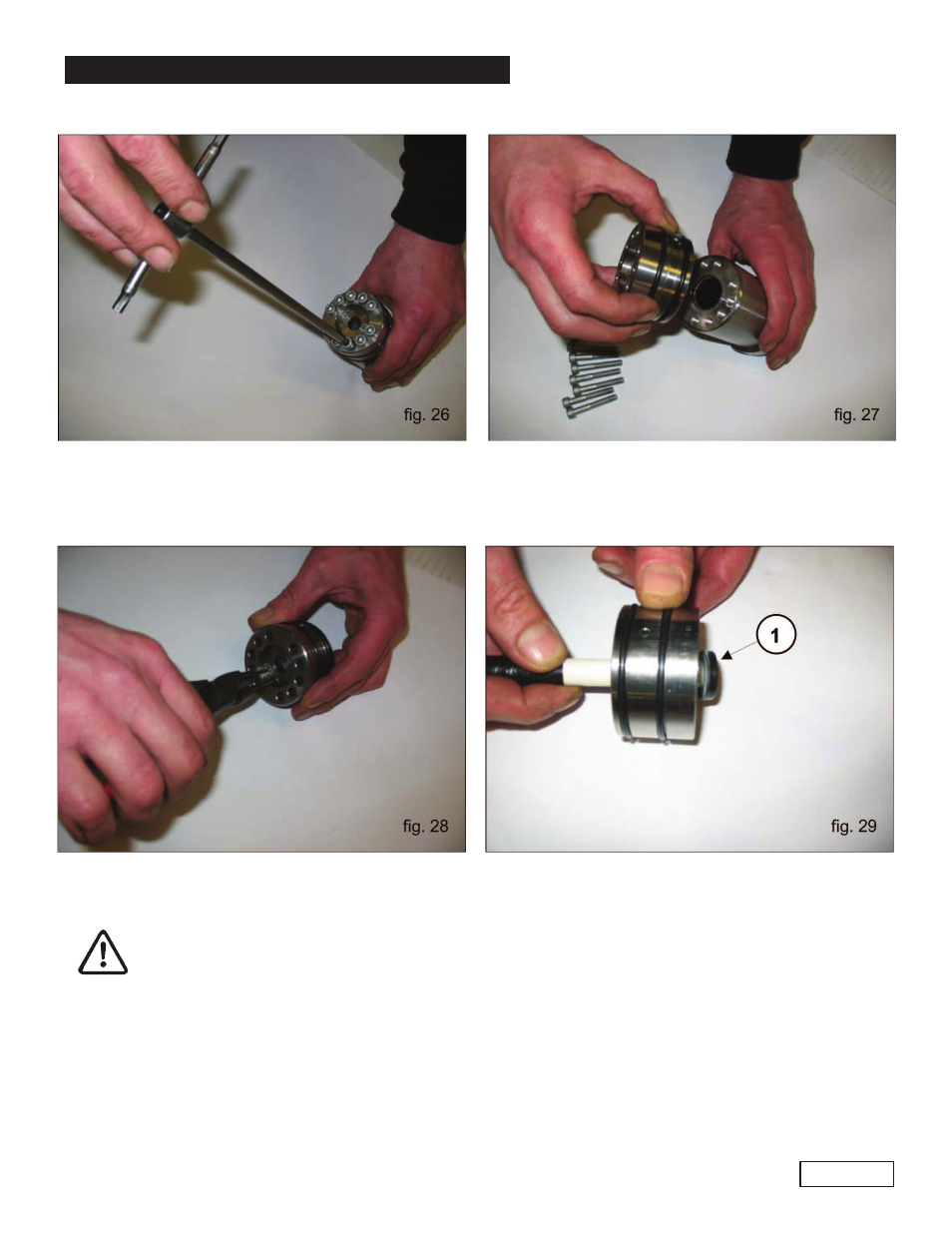

Remove the seeger ring and the seal retainer ring as shown in fig. 28, and with an opposite
pin extract the L.P. (low pressure) gasket, #1 as shown in fig. 29.
At each disassembly, the low pressure seals and all O-rings must be replaced.
Page 13
B)
Remove the M6 x 40 screws of the liner support as indicated in fig. 26, and separate as
Shown in Fig. 27
