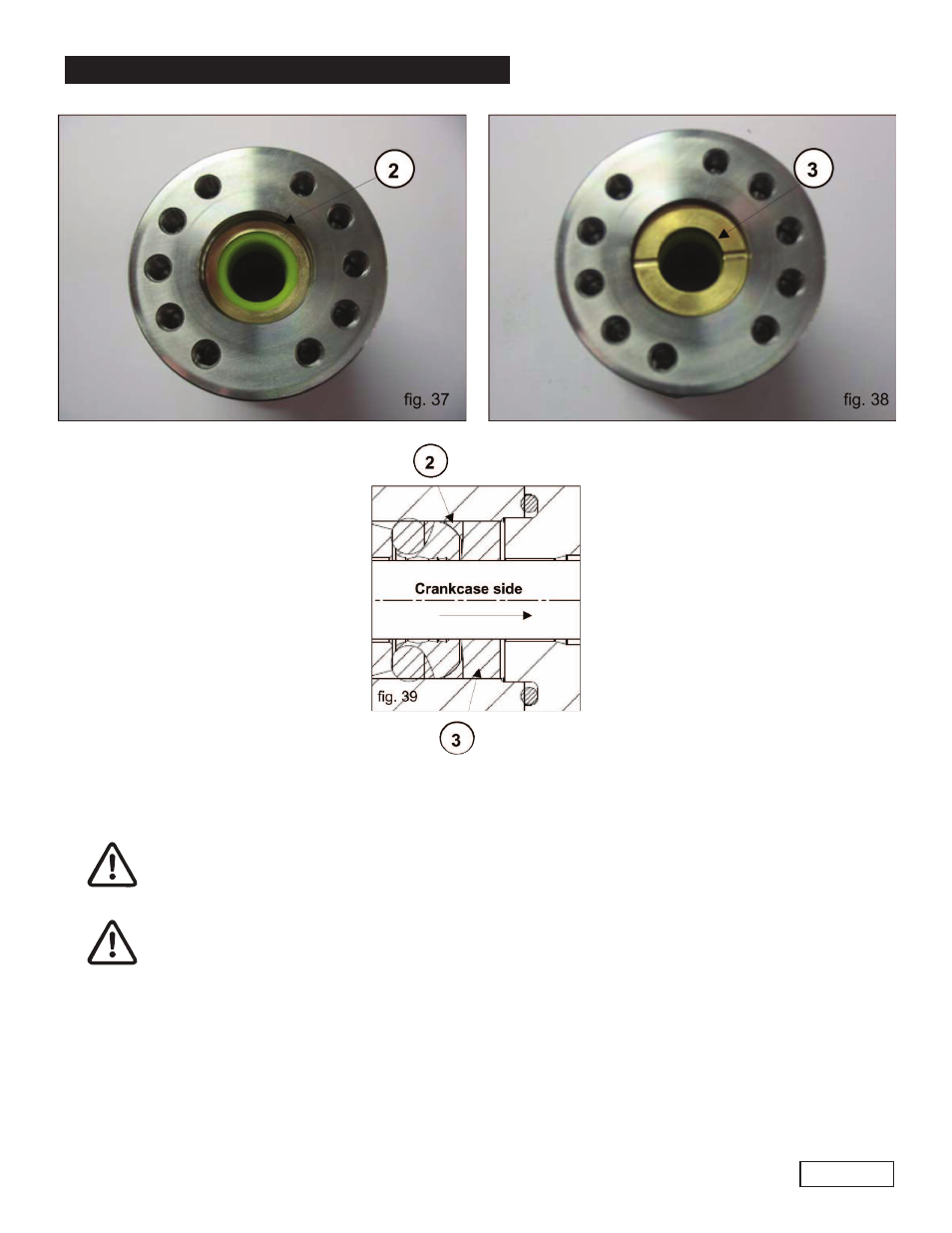

C) Insert the anti-extrusion ring, #2, and the gasket bushing, #3, arranged as shown in
fig. 37 - 38 - 39.
The gasket bushing, #3, must be introduced into the liner with the outlets facing
outward (crankcase side) as shown in fig. 38 and in fig. 39.
The L.P. seal must be inserted into the liner with the sealing lip in the plunger
working direction as shown in fig. 40 and fig. 41, slightly lubricating the external
diameter with silicone grease type OKS1110.
