Typical Power Supply Wiring
Typical Power Supply Wiring
Typical Power Supply Wiring
Typical Power Supply Wiring

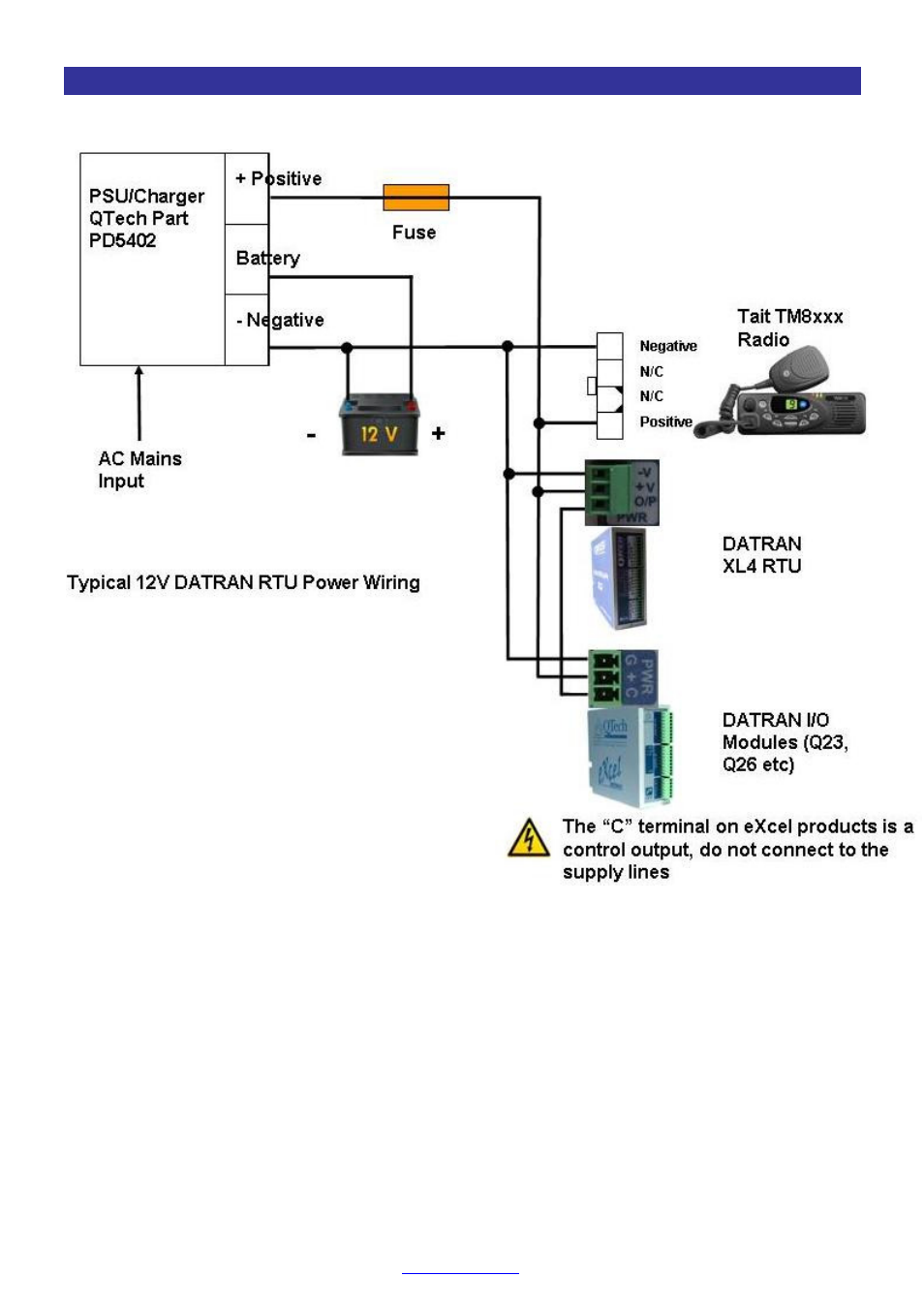

The following is a typical DC power connection for a DATRAN XL4 including expansion modules and radio power
supply.
