Yamaha TDM900P - Manual (Page 62)

E
15

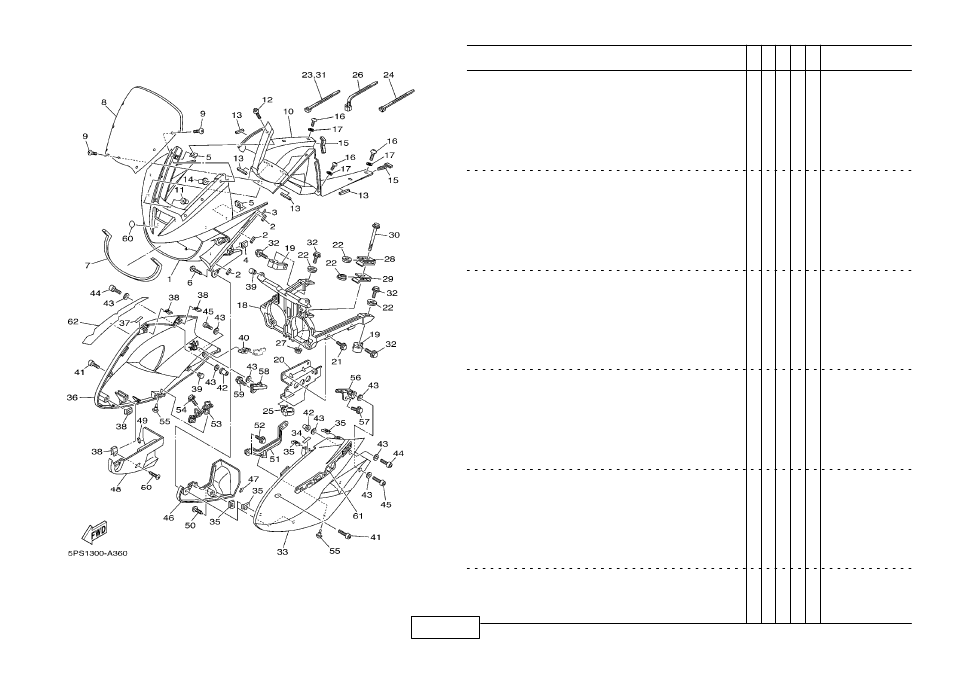

FIG. 36 COWLING 1
26 90464−15195 CLAMP 3 3
27 95707−08500 NUT, FLANGE 1 1
28 5PS−28396−00 PLATE 1 1 1
29 5PS−28397−00 PLATE 2 1 1
30 5PS−28331−00 BOLT, LEG SHIELD 1 1
31 90465−10098 CLAMP 1 1
32 95817−08025 BOLT, FLANGE 4 4
33 5PS−2835U−00−P0 PANEL 1 1 1 UR VDBMA
5PS−2835U−00−P1 PANEL 1 1 1 UR S3
5PS−2835U−00−P2 PANEL 1 1 1 UR RYC1
34 5PS−2178A−00 LABEL 1 1
35 90183−05042 NUT, SPRING 4 4
36 5PS−2835V−00−P0 PANEL 2 1 1 UR VDBMA
5PS−2835V−00−P1 PANEL 2 1 1 UR S3
5PS−2835V−00−P2 PANEL 2 1 1 UR RYC1
37 5PS−2178A−00 LABEL 1 1
38 90183−05042 NUT, SPRING 4 4
39 90338−10132 PLUG 4 4
40 15A−21717−00 DAMPER 2 2
41 90110−05201 BOLT, HEXAGON SOCKET HEAD 2 2
42 90179−05523 NUT 2 2
43 90202−05224 WASHER, PLATE 8 8
44 90149−05299 SCREW 2 2
45 90110−05201 BOLT, HEXAGON SOCKET HEAD 2 2
46 5PS−2837N−00 GRILL, AIR INTAKE 1 1 1
47 4TX−21717−00 DAMPER 1 1
48 5PS−2837R−00 GRILL, AIR INTAKE 2 1 1
PART NO. DESCRIPTION REMARKS
REF.
NO.
5PS1 5PS2
