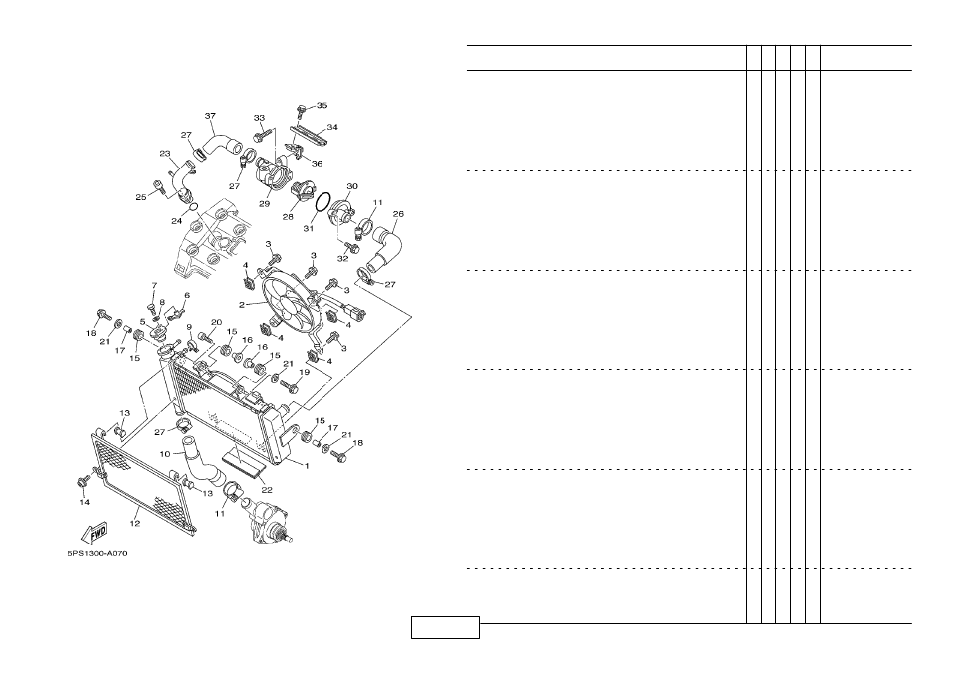

FIG. 7 RADIATOR. HOSE
1 5PS−12461−00 RADIATOR ASSY 1 1
2 5PS−12405−00 BLOWER ASSY 1 1
3 90119−06044 BOLT, WITH WASHER 4 4
4 1AA−12535−00 PLATE 4 4
5 4FL−12462−00 CAP, RADIATOR 1 1
6 1KT−12437−00 STOPPER 1 1
7 97007−05012 BOLT 1 1
8 92907−05600 WASHER, PLATE 1 1
9 90467−10038 CLIP 1 1
10 5PS−12578−00 HOSE 3 1 1
11 90450−38040 HOSE CLAMP ASSY 2 2
12 5PS−12467−00 COVER, RADIATOR 1 1
13 1UF−12435−00 GASKET 2 2
14 90111−06037 BOLT 2 2
15 90480−15363 GROMMET 4 4
16 90387−0614M COLLAR 2 2
17 90387−0714B COLLAR 2 2
18 95807−06025 BOLT, FLANGE 2 2
19 95807−06030 BOLT, FLANGE 1 1
20 91317−06025 BOLT 1 1
21 90201−06071 WASHER, PLATE 3 3
22 5PS−12465−00 DAMPER, RADIATOR 1 1
23 4NX−12482−00 PIPE 2 1 1
24 93210−18417 O−RING 1 1
25 91317−06016 BOLT 1 1
26 5PS−12576−00 HOSE 1 1 1
27 90450−32015 HOSE CLAMP ASSY 4 4
PART NO. DESCRIPTION REMARKS
REF.
NO.
5PS1 5PS2
