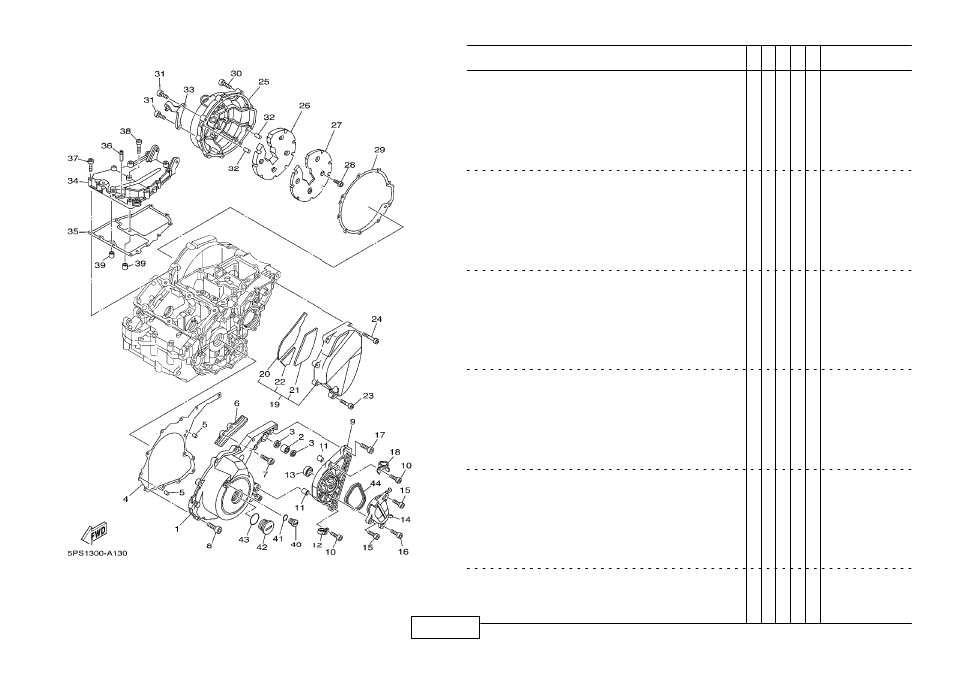

FIG. 13 CRANKCASE COVER 1
1 5PS−15411−00 COVER, CRANKCASE 1 1 1
2 93317−21288 BEARING 1 1
3 93109−12075 OIL SEAL 2 2
4 5PS−15451−00 GASKET, CRANKCASE COVER 1 1 1
5 99530−08012 PIN, DOWEL 2 2
6 5PS−17653−00 SLIDER 1 1
7 90109−065A8 BOLT 2 2
8 91314−06025 BOLT 9 9
9 5PS−1541E−00 STAY, COVER 1 1
10 91317−06030 BOLT 2 2
11 99530−10114 PIN, DOWEL 2 2
12 90465−08125 CLAMP 1 1
13 93106−15034 OIL SEAL 1 1
14 5PS−15419−00 COVER, SHIFTER 1 1 1
15 91317−06014 BOLT 2 2
16 91317−06010 BOLT 1 1
17 91317−06020 BOLT 1 1
18 90465−08034 CLAMP 1 1
19 5PS−15420−00 CRANKCASE COVER ASSY 2 1 1
20 5PS−15326−00 .DAMPER, ENGINE MOUNT 2 1 1
21 5PS−15335−00 .DAMPER 3 1 1
22 5PS−15337−00 .DAMPER 4 1 1
23 91314−06025 BOLT 1 1
24 91314−06050 BOLT 4 4
25 5PS−15431−00 COVER, CRANKCASE 3 1 1
26 5PS−15316−00 DAMPER, ENGINE MOUNT 1 1 1
27 5PS−15427−00 COVER, CAP 2 1 1
PART NO. DESCRIPTION REMARKS
REF.
NO.
5PS1 5PS2
