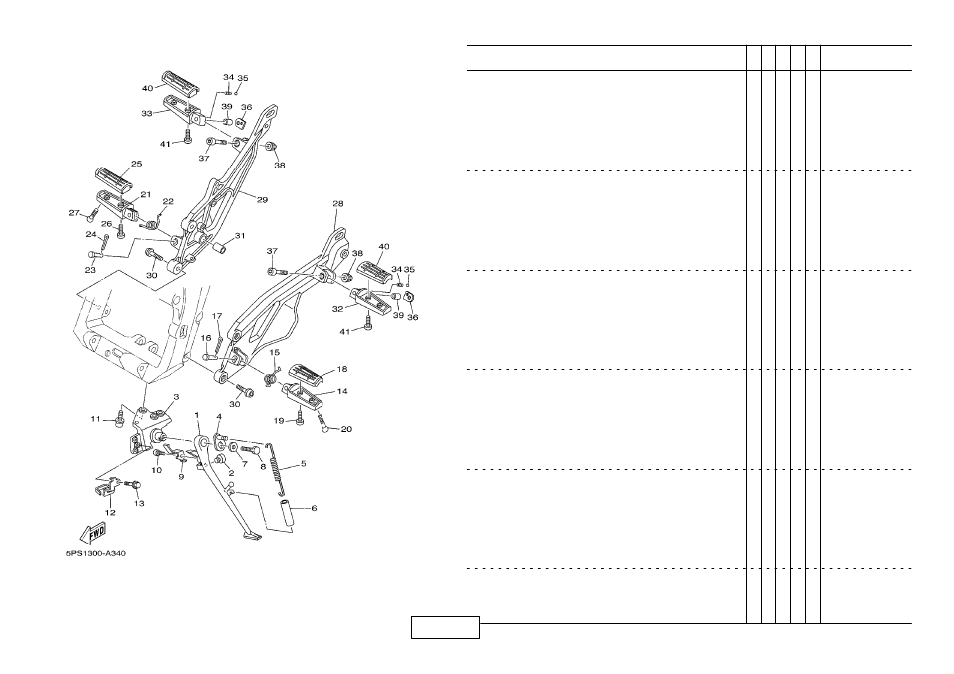

FIG. 34 STAND. FOOTREST
1 5PS−27311−00 STAND, SIDE 1 1
2 128−27114−00 STOPPER, MAIN STAND 1 1
3 5PS−27321−00 BRACKET, SIDE STAND 1 1
4 5PS−27352−00 HOOK, SIDE STAND 1 1
5 90506−20008 SPRING, TENSION 1 1
6 90445−197J2 HOSE (L60) 1 1
7 90201−081R9 WASHER, PLATE 1 1
8 90101−08662 BOLT 1 1
9 5JJ−27315−00 LINK, SIDE STAND 1 1
10 90110−06226 BOLT, HEXAGON SOCKET HEAD 1 1
11 90109−082F5 BOLT 3 3
12 5PS−27323−00 BRACKET 1 1 1
13 95027−06010 BOLT, FLANGE 1 1
14 4BH−27451−01 FOOTREST 1 1
15 90508−20572 SPRING, TORSION 1 1
16 90240−08084 PIN, CLEVIS 1 1
17 91401−25015 PIN, COTTER 1 1
18 3YX−27413−00 COVER, FOOTREST 1 1
19 90157−05079 SCREW, PAN HEAD 2 2
20 90109−083E2 BOLT 1 1
21 4BH−27461−01 FOOTREST 1 1
22 90508−20572 SPRING, TORSION 1 1
23 90240−08084 PIN, CLEVIS 1 1
24 91401−25015 PIN, COTTER 1 1
25 3YX−27413−00 COVER, FOOTREST 1 1
26 90157−05079 SCREW, PAN HEAD 2 2
27 90109−083E2 BOLT 1 1
PART NO. DESCRIPTION REMARKS
REF.
NO.
5PS1 5PS2
