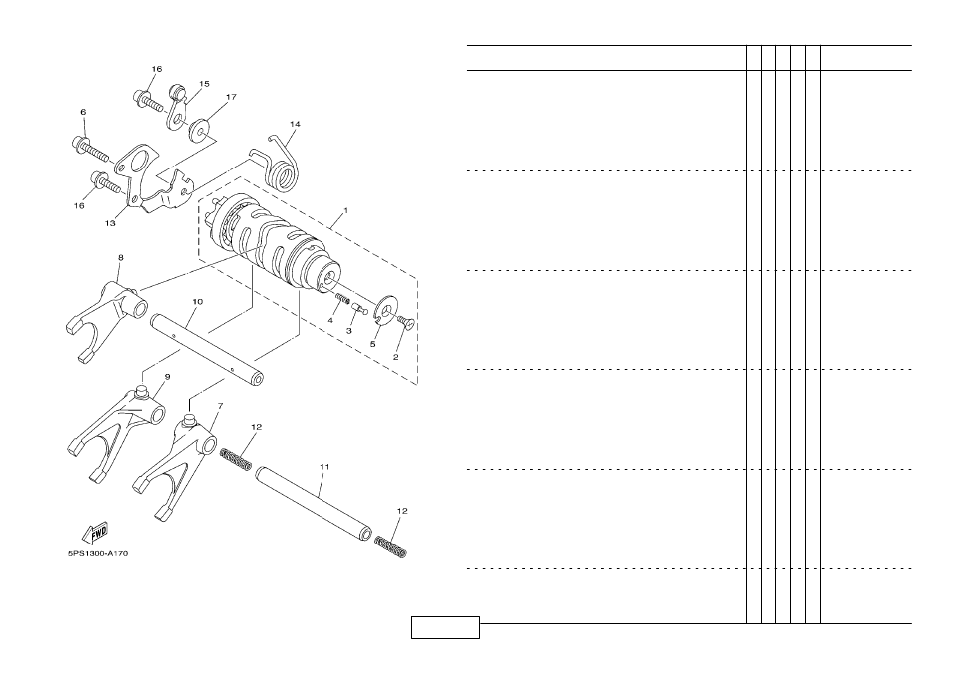

FIG. 17 SHIFT CAM. FORK
1 5PS−18540−00 SHIFT CAM ASSY 1 1
2 90149−05321 .SCREW 1 1
3 4UN−18542−00 .POINT, NEUTRAL 1 1
4 90501−06022 .SPRING, COMPRESSION 1 1
5 4UN−18566−00 .PLATE, SIDE 2 1 1
6 90110−06060 BOLT, HEXAGON SOCKET HEAD 1 1
7 5PS−18511−00 FORK, SHIFT 1 1 1
8 5PS−18512−00 FORK, SHIFT 2 1 1
9 5PS−18513−00 FORK, SHIFT 3 1 1
10 5PS−18531−00 BAR, SHIFT FORK GUIDE 1 1 1
11 4XV−18531−00 BAR, SHIFT FORK GUIDE 1 1 1
12 90501−064L1 SPRING, COMPRESSION 2 2
13 3LD−18536−00 STOPPER, SHIFT BAR 1 1
14 90508−29016 SPRING, TORSION 1 1
15 4SV−18140−00 STOPPER LEVER ASSY 1 1
16 90110−06027 BOLT, HEXAGON SOCKET HEAD 2 2
17 4NX−18175−00 SPACER 1 1
PART NO. DESCRIPTION REMARKS
REF.
NO.
5PS1 5PS2
