BRICK INSTALLATION
(PRE-INSTALLED AT FACTORY)
NOTE: Prior to operation, be sure to remove brick
retaining strips.
FIREBOX:
The firebrick must be inserted on each side resting on the
grate frame. First, place cut brick in each back corner. Place
remaining brick in place.
SMOKE CHAMBER:
1. Place #1 firebrick in the back of smoke chamber.
2. Slide baffle plate into smoke chamber, flat side down.
3. Place remaining firebrick in smoke chamber as
1
2
3

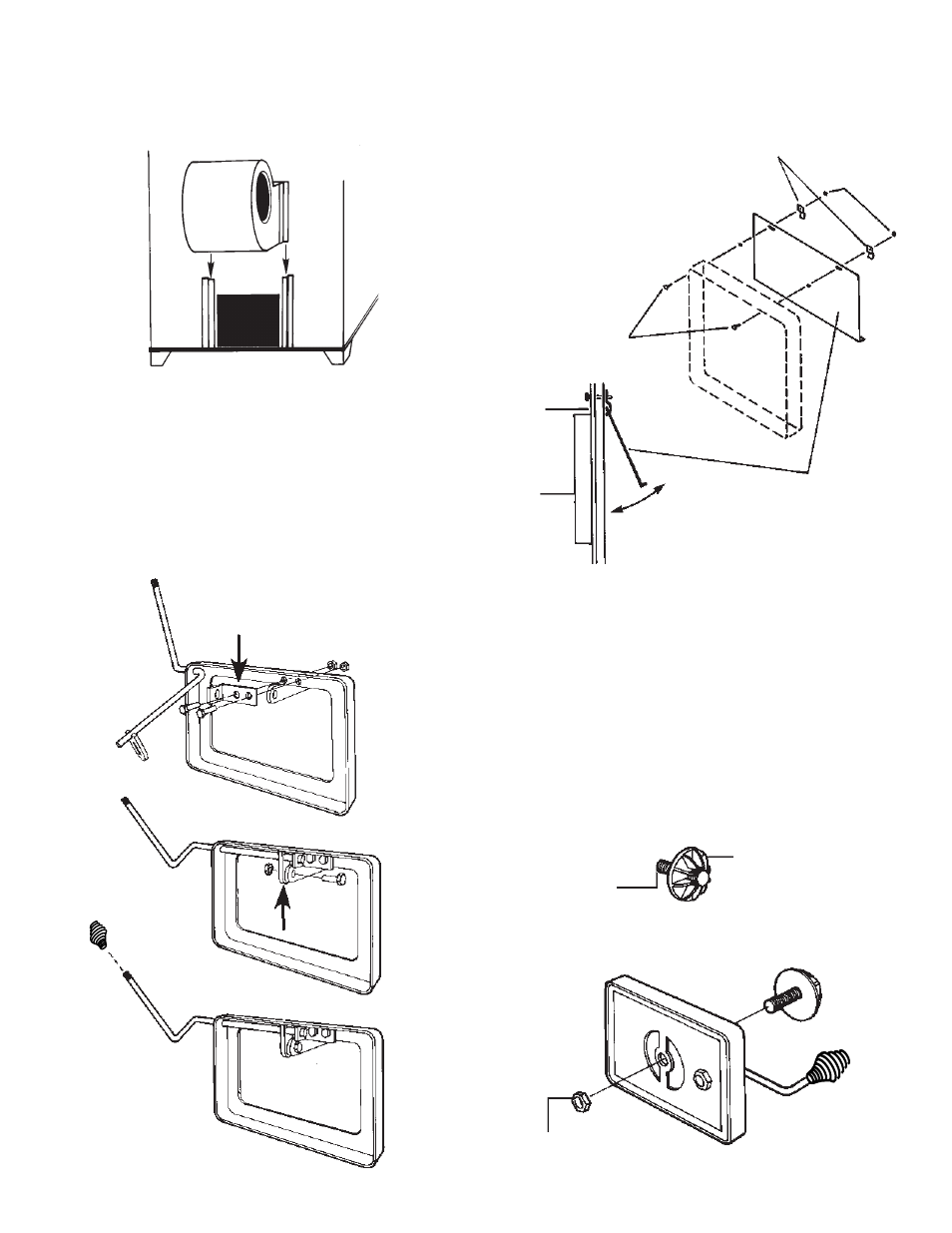

SPIN DRAFT CAP
1/2" X 2-1/2"
CARRIAGE
BOLT
SMOKE DOOR
SMOKE DOOR CLIPS
1/4" X 1-1/4"
CARRIAGE BOLTS
FRONT
OF
FURNACE
FUEL
LOADING
DOOR
FRAME
1/4" LOCK
NUTS
7
1/2" LOCK NUT
