United States Stove Company 1800 - Manual (Page 17)

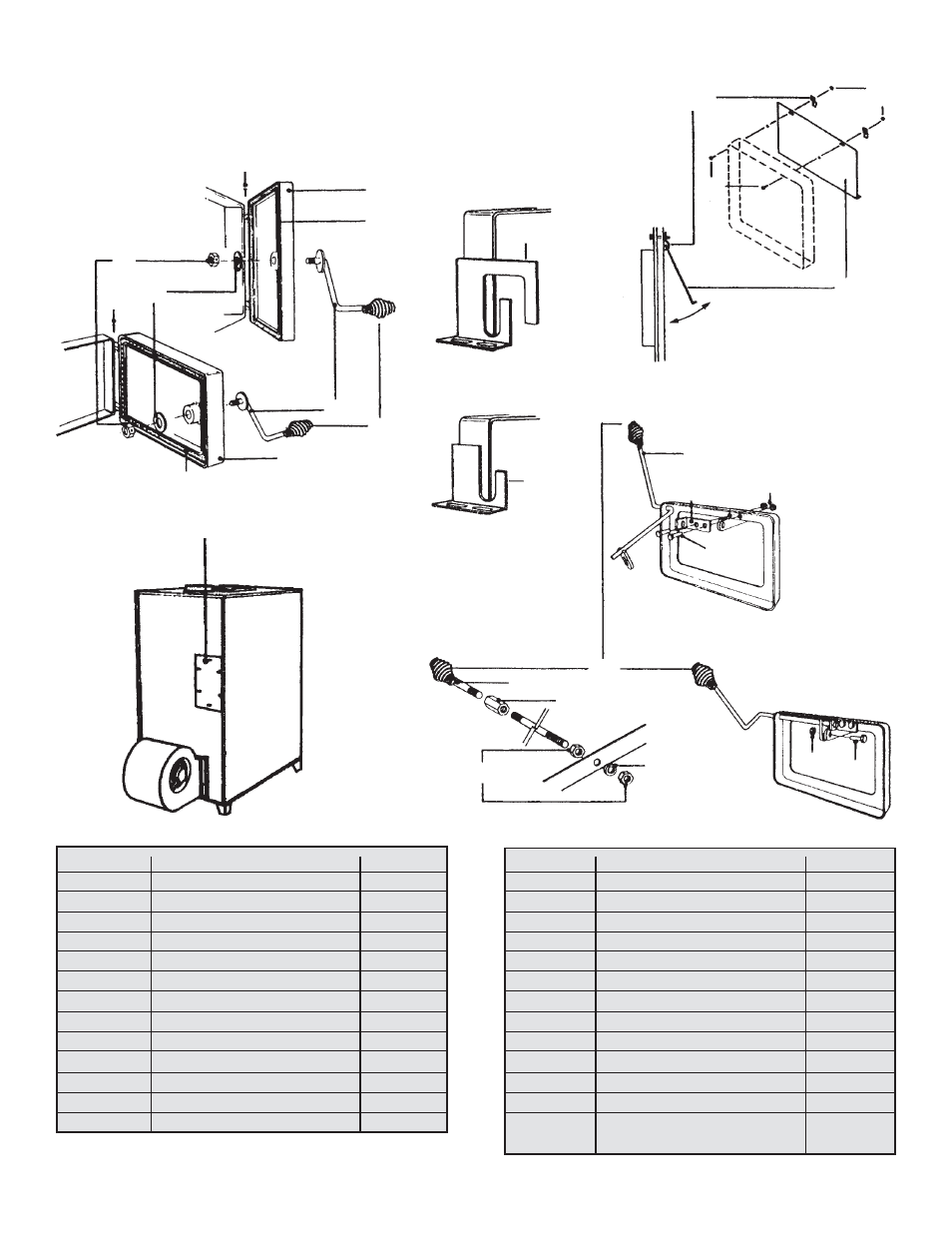

PARTS LIST
MODEL 1600/1800
29
35
39
33
27
34
26
30
45
42
44
43
37
38
40
48
46
47
50
49
40
41
ITEM DESCRIPTION PART#
26 Top Safety Latch 23786
27 Feed Door (Drilled) 69091
28 Ash Door (Drilled) 68880
29 Door Latch Handle 24179(2)
30 Ash Door Latch 23823
31 1/2" Flat Washer 83835(2)
32 1/2" Lock Nut 83444(3)
33 5/16" x 1" Hinge Pin C21399(4)
34 1/2" Rope for Fire Door 52" 88057
35 1/2" Rope for Ash Door 32" 88057
36 Aqua-Siphon Cover 23819
37 Shaker Grate Handle C000177
38 Hinge Bracket 24204
ITEM DESCRIPTION PART#
39 1/4" x 3/4" Hex Bolt 83339(6)
40 1/-20 Kep Nuts 83250(8)
41 1/4" x 1" Hex Bolt 83379
42 1/4" x 1-1/4" Carriage Bolt 83445(2)
43 1/4-20 Kep Nut 83250(2)
44 Smoke Door Curtain 23800
45 Smoke Door Clip 23787(2)
46 1/2" x 1-1/2" Hex Connector C21899
47 Baffle Rod Extension C000089
48 1/2" Hex Nut 83276(2)
49 1/2" Coupling C21899
50 Brass Coil Knob 89574(4)
Feed Door Assembled 68829
Ash Door Assembled 68880
