DOOR HANDLE INSTALLATION
Insert door handle into door. From rear side of door place
1/2" washer over threaded part of door handle. Then attach
1/2" lock nut, being careful not to over tighten. Handle should
turn freely.
FUEL & ASH DOOR LATCH INSTALLATION
With two 1/4" x 3/4" hex bolts, attach the door latch to the

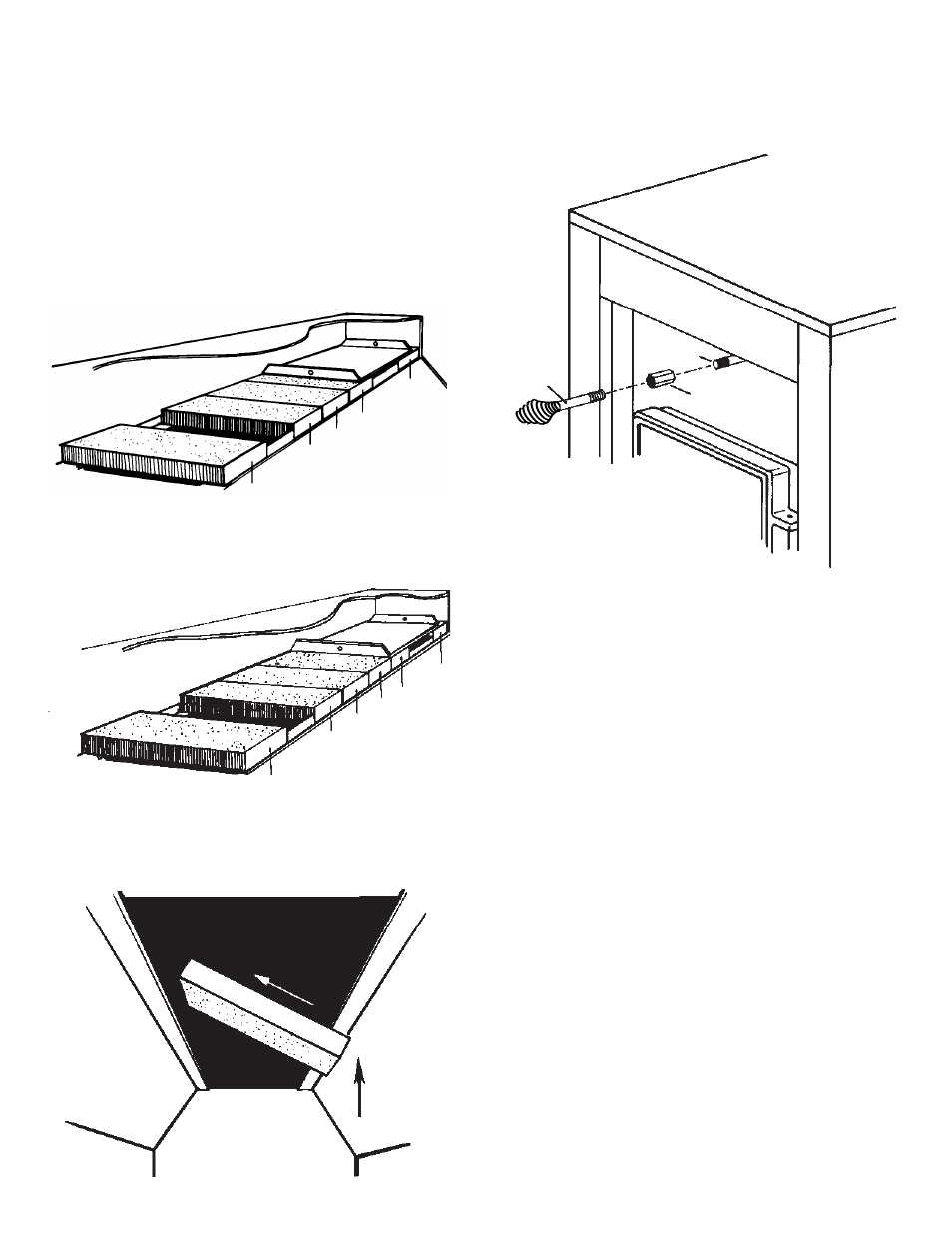

REAR OF
FIREBOX
TOP
BAFFLE
ROD
EXTENSION
HEX COUPLING
BAFFLE
ROD
6
1-1/2"
2
1
3
5
4
6
1/2 BRICK
MODEL 1600
(4
1 /
2
) BRICKS
MODEL 1800
(6) FULL BRICKS
7
1
3
4
5
6
2
THE MODELS 1600 AND 1800 HAVE BEEN
EQUIPPED WITH DIFFERENT PLENUM
OPENINGS, THEY ARE AS FOLLOWS:
door latch mounting bracket on the left side of door frame as
illustrated. Adjust latch until door closes securely.
MODEL 1800
18"x18" Square Plenum Opening
