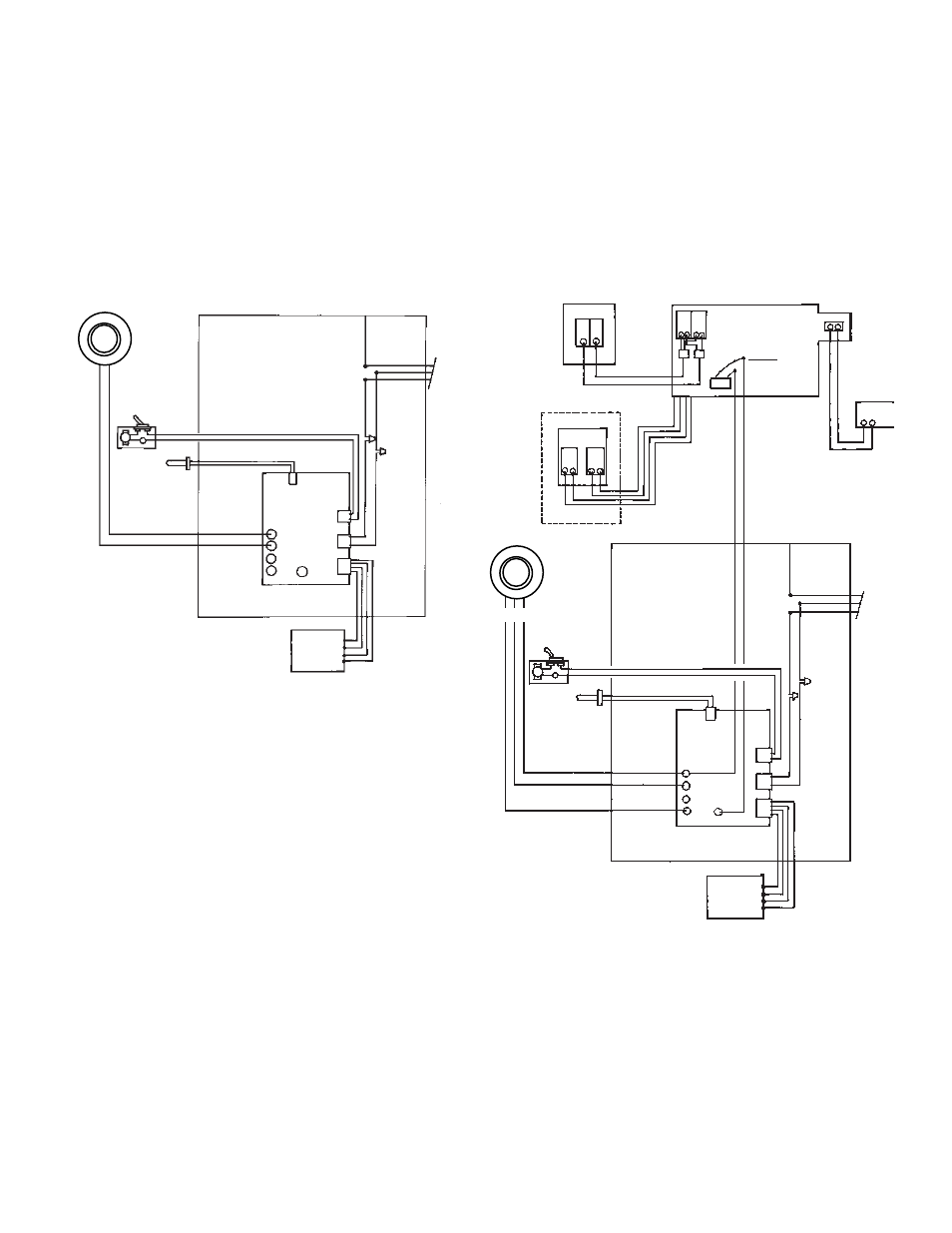

WIRING DIAGRAMS FOR ELECTRONIC CONTROL SYSTEM
For Model 1600 / 1800
STANDARD WIRE
(Diagram #1)
HEATING OPTION
(Diagram #2)
POWER
SUPPLY
ELECTRONIC
CONTROL BOARD
R
W
Y
G
DRAFT
FAN
OR
MOTORIZED
DRAFT
BLOWER MOTOR
PLENUM
HEAT
SENSOR
AUX.
FAN
THERMOSTAT
DRAFT
FAN
OR
MOTORIZED
DRAFT
POWER
SUPPLY
BLUE
WHITE
BLACK
RED
BLOWER MOTOR
AUX.
FAN
R
W
Y
G
THERMOSTAT
ELECTRONIC
CONTROL BOARD
PLENUM
HEAT
SENSOR
W R
WALL
THERMOSTAT
(WOOD)
BLUE
WHITE
BLACK
RED
WALL
THERMOSTAT
(WOOD)
CB CB
CB
ELECTRICAL
SERVICE
PANEL SEE
TABLE 1
FOR CB
SIZE
SEE TABLE 1 FOR
CONTACTOR SIZE
OPTIONAL DOUBLE
FEED METHOD
240V HEATER
POWER INPUT
ELECTRIC WALL
THERMOSTAT
MOUNT UNIT IN
PLENUM
DIRECTLY
ABOVE WOOD
WIRES MUST BE
CONNECTED TO
FURNACE FOR
BLOWER CONTROL
"G" IS
FOR
MANUAL
FAN
OPTION
NOTE:
SEE PLENUM
HEATER
INSTRUCTIONS
G W R
