United States Stove Company 1800 - Manual (Page 12)

10
ALL WIRING MUST BE DONE
BY A QUALIFIED ELECTRICIAN
LOAD
FAN
LINE LOAD
LIMIT
LINE
BREAK OFF
JUMPER FOR
LOW VOLTAGE
FAN "OFF"
INDICATOR
(100)
FAN "ON"
INDICATOR
(150)
LIMIT
INDICATOR
(200)
Honeywell
LIMIT SWITCH
2
2 3 4 5 1
L1
3 3-SPEED SWITCH
(Two Models are available
Model "A" and Model "B".
Check your switch to see
which model you have
and wire accordingly)
RED
RED
RED
RED
RED
WHITE
WHITE
WHITE
WHITE
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLUE
BLUE
BLUE
GREEN
1400 CFM
1250 CFM
1100 CFM TO
"R" TO
"G"
BLOWER MOTOR
SETTING LIMIT CONTROL
WALL THERMOSTAT
DRAFT
MOTOR
FAN CENTER
ELECTRICAL
BOX
POWER SUPPLY

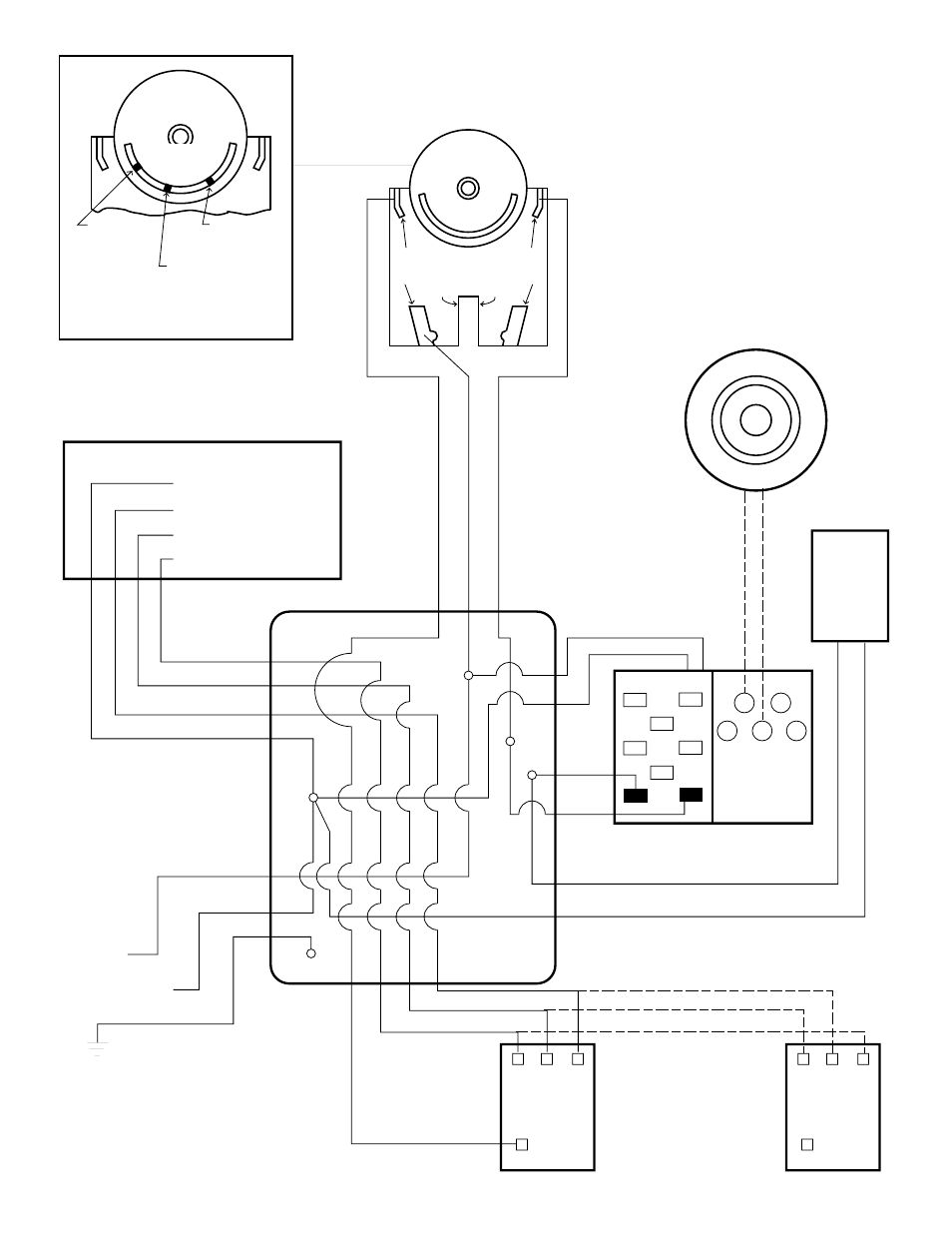

WIRING DIAGRAM
BACK VIEW
FRONT VIEW
R C
W G Y
Model "A" Model "B"
