United States Stove Company 1800 - Manual (Page 19)

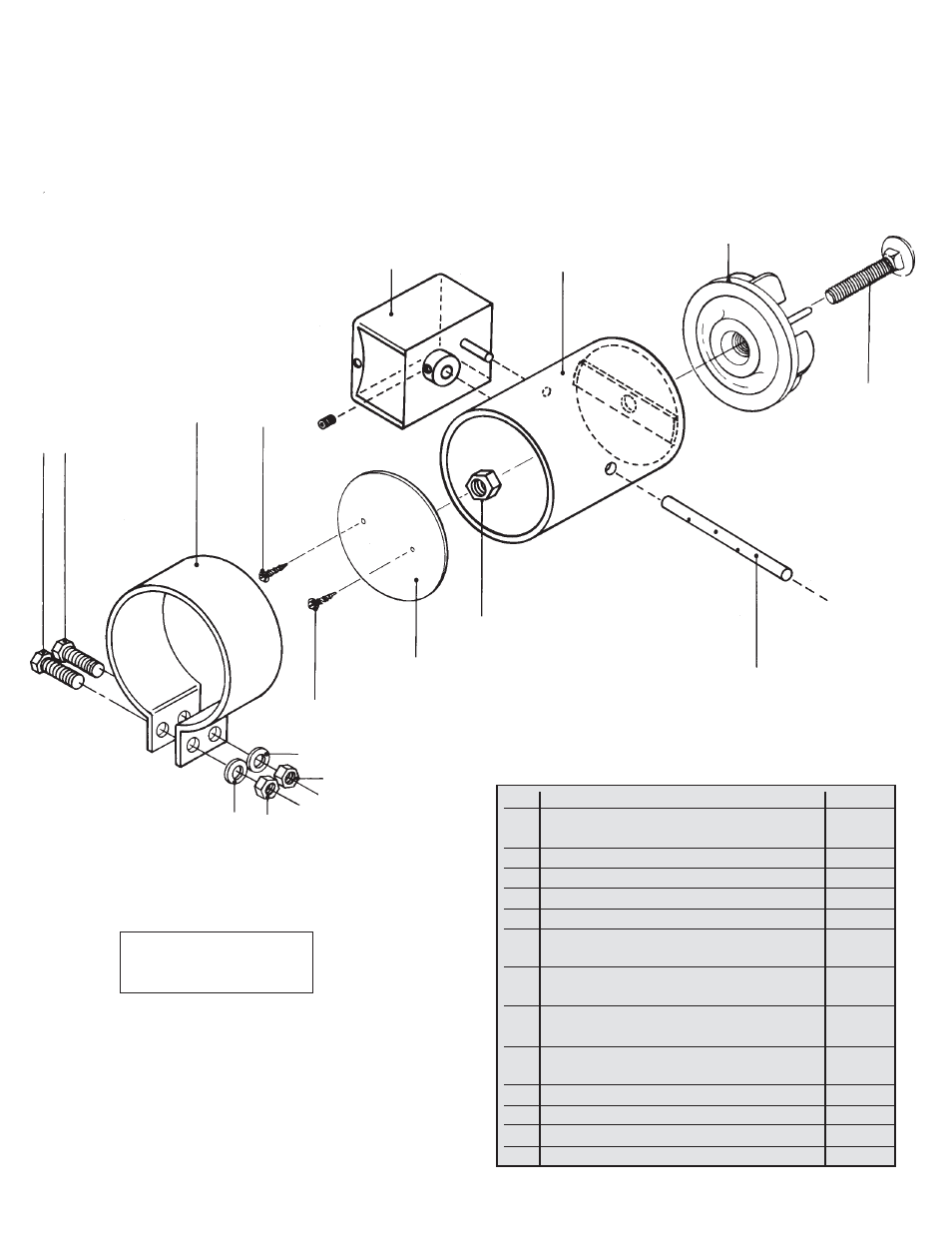

MOTORIZED NATURAL DRAFT PARTS LIST
PRE-ASSEMBLED AT FACTORY
(OPTIONAL KIT)
3
3
4
11
9
10
8
2 2
1
11
7 5
12
6
17
ITEM DESCRIPTION PART#
1 Draw Band 23888
2 1/4" x 1" Bolt 83379
3 1/4" Lock Washer 83414
4 1/4" Hex Nut 83072
5 Erie Motor-120v C45099
6 Draft Cap 23859
7 Draft Tube Weldment 68872
8 Flipper Tube 23899
9 Flipper 23898
10 1/2" - 13 Hex Lock Nut 83444
11 #8 x 1/2" Tek Screw 83455
12 1/2 x 2-1/2 Carriage Bolt C20599
* Thermostat 80129
MODEL 1600 / 1800
MODEL 1600/1800
MND KIT #C60357M
4
