Connector Configurations
124
PT2000™ & TopGun™
Bar Code & Magnetic Stripe Reader Connector

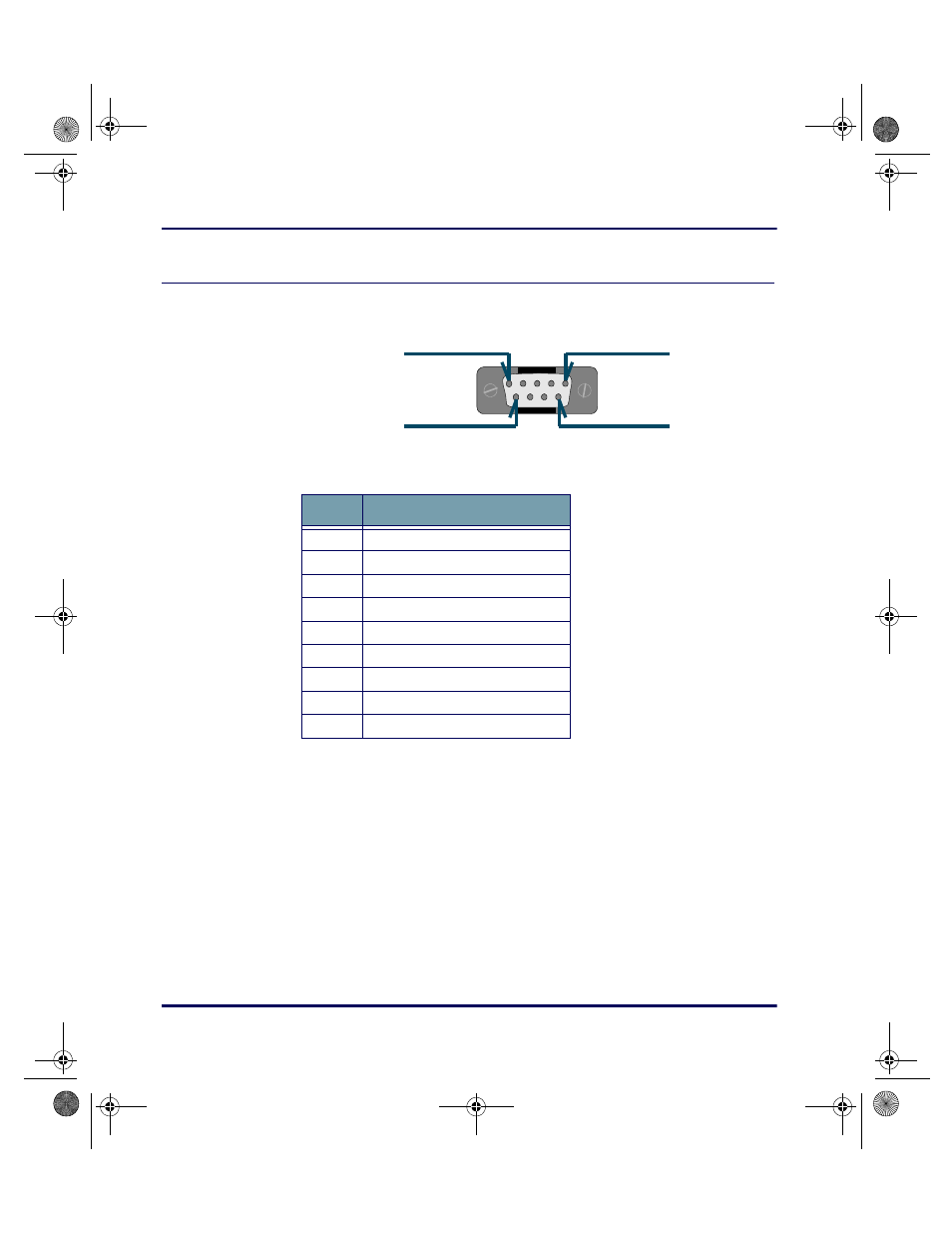

Figure F-1: Bar Code & Magnetic Stripe Reader Pinouts
Table F-1: Bar Code & Magnetic Stripe Reader Pinouts
Pin #1
Pin #5
Pin #6
Pin #9
Pin #
Description
1
Laser sync in
2
Bar code data in
3
Good-read out
4
Mag stripe information in
5
Laser trigger in
6
Laser-scan enable out
7
Ground
8
Ground
9
+5V
