Names and Functions of Parts of the Control Panel
Chapter 2
Men
us and Control P
a
nel
DVS-9000/9000SF
3-704-674-01 (1)

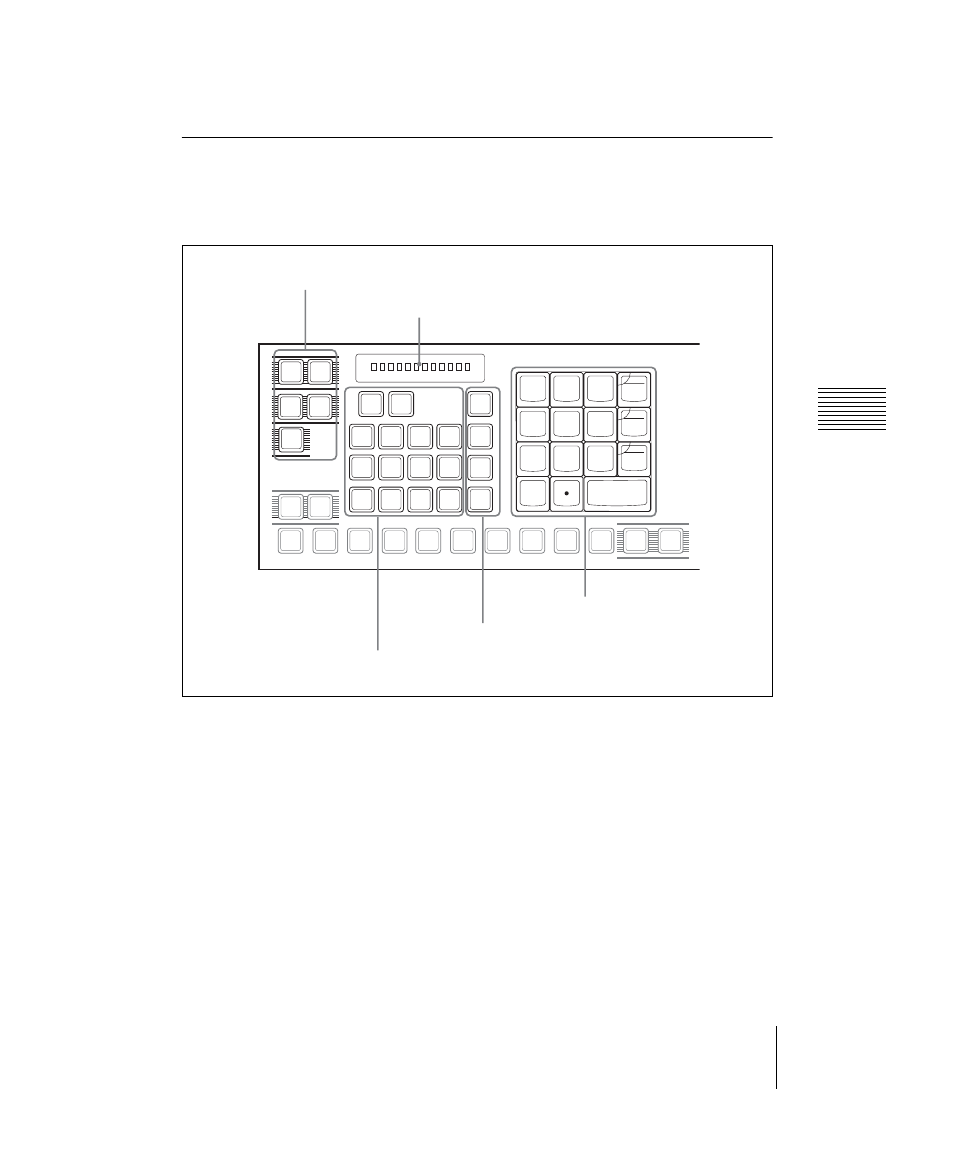

Numeric Keypad Control Block
The numeric keypad control block is used
for region selection, for saving and
recalling snapshots and effects, for shot box
recall, for entering numeric values for
trackball operation and keyframe operation,
and for transition rate entry.
a Mode selection buttons
EFF (effect): Press to save or recall effects.
SNAPSHOT: Press to save or recall
snapshots.
SHOT BOX: Press to carry out a shot box
recall.
MCRO (macro):
TRANS RATE (transition rate): Press to
set the transition rate. Hold down this
button, and press one of the key row
delegation buttons [KEY1] to [KEY4]
in the cross-point control block to set
an independent key transition rate.
b Region selection buttons
These select the functional block (“region”)
of the control panel to which operations
apply.
You can select more than one region at the
same time.
The first button you press is taken as the
reference region, and lights green,
while the next pressed button lights amber.
MASTR:
ALL: Select all of the preselected regions.
When any region is already selected,
pressing this button makes all regions
unselected.
EFF
SNAP
SHOT
SHOT
BOX
MCRO
TRANS
RATE
UNDO
STORE
STATS
MASTR
ALL
P-BUS
GP1
STORE
RCALL
7
8
9
4
5
6
1
2
3
0
+/-
EFF
TRIM
CLR
AUTO
DISS
TRANS
ENBL
GPI
ENTER
DME
1
DME
2
DME
3
DME
4
M/E
1
USER
1
USER
2
P/P
P/P
M/E
1
AUX
1
AUX
2
AUX
3
AUX
4
AUX
5
AUX
6
AUX
7
FMS
1
FMS
2
EDIT
PVW
KEY
SHIFT
1
Mode selection buttons
5
Display
2
Region selection buttons
3
Function selection buttons
4
Numeric keypad
