Intel® Server Chassis SC5400 User’s Guide

Installing Hot Swap Drive(s)

1. Press in on the green latch (see letter “A” in the following figure) at the end of the

drive carrier to disengage it from the hot swap drive cage.

2. Pull out on the black lever (see letter “B”) to fully open the drive carrier. When the

lever reaches a fully opened position, it will push the drive carrier out from the hot

swap drive cage. Slide the drive carrier out of the drive cage (see letter “C”).

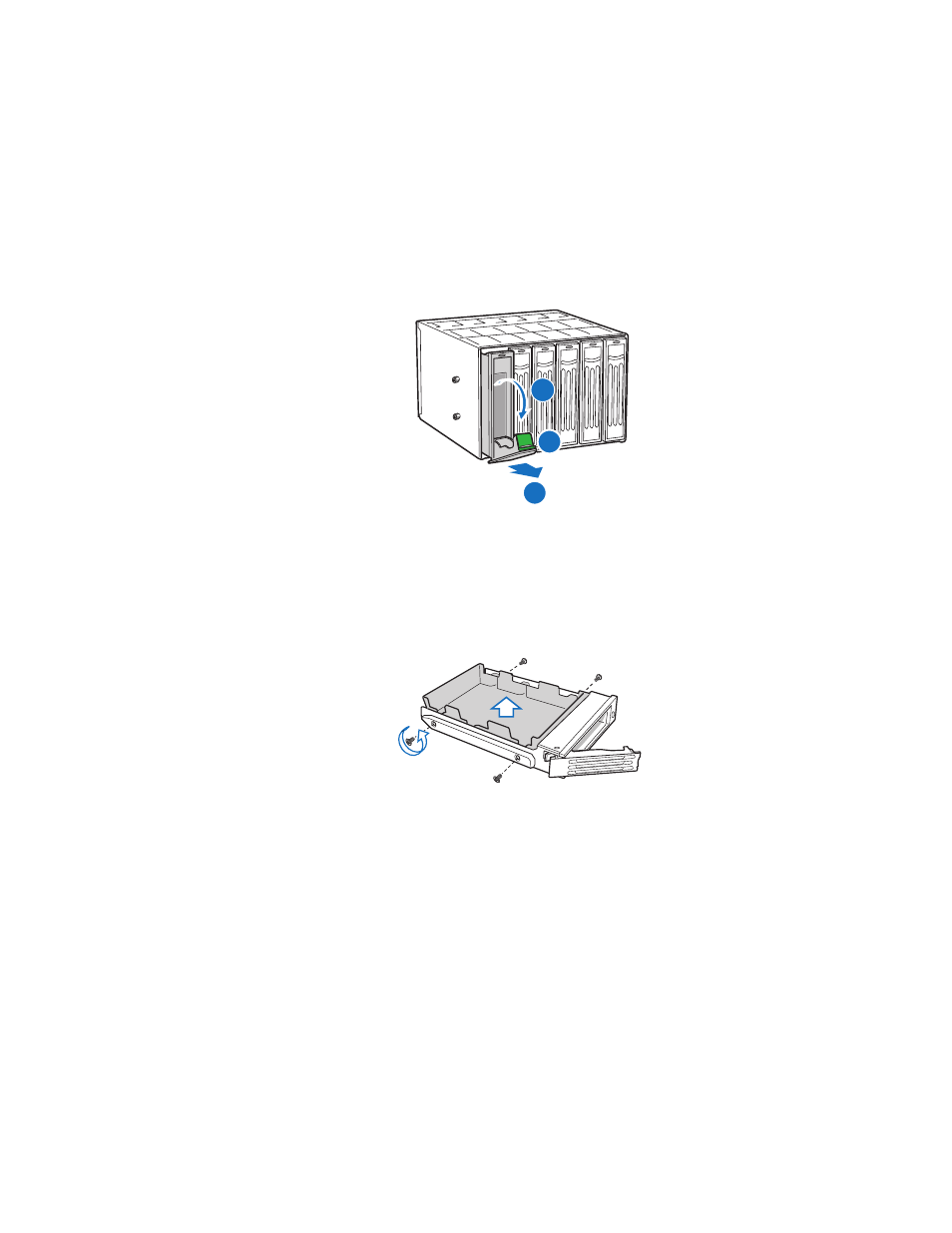

Figure 45. Removing Drive Carrier from Hot Swap Cage

3. Remove the four screws that secure the plastic air baffle to the drive carrier.

Remove the plastic air baffle.

Figure 46. Removing Plastic Air Baffle

4. Secure the hard drive to the drive carrier using the four screws that were formerly

attached to the plastic air baffle. Ensure that the connector end of the hard drive is

facing the back of the drive carrier. The label side of the hard drive should be facing

up in the drive carrier.
