Intel® Server Chassis SC5400 User’s Guide 23
Replacing a Fixed Fan (Intel
®
Server Chassis
SC5400Base SC5400BRP only)
Note: This procedure applies only to the Intel
®
Server Chassis SC5400 BASE and Intel
®
Server
Chassis SC5400BRP configurations. The Intel
®
Server Chassis SC5400LX and
SC5400LXi ship with hot-swap fans.
1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see
“Removing the Chassis Cover” on
page 16 .
4. Disconnect the appropriate fan power cable from the server board.
5. Remove the 92-mm (see letter “A” in the following figure) or 120-mm (see letter
“B”) fixed fan from its snap-in bracket.

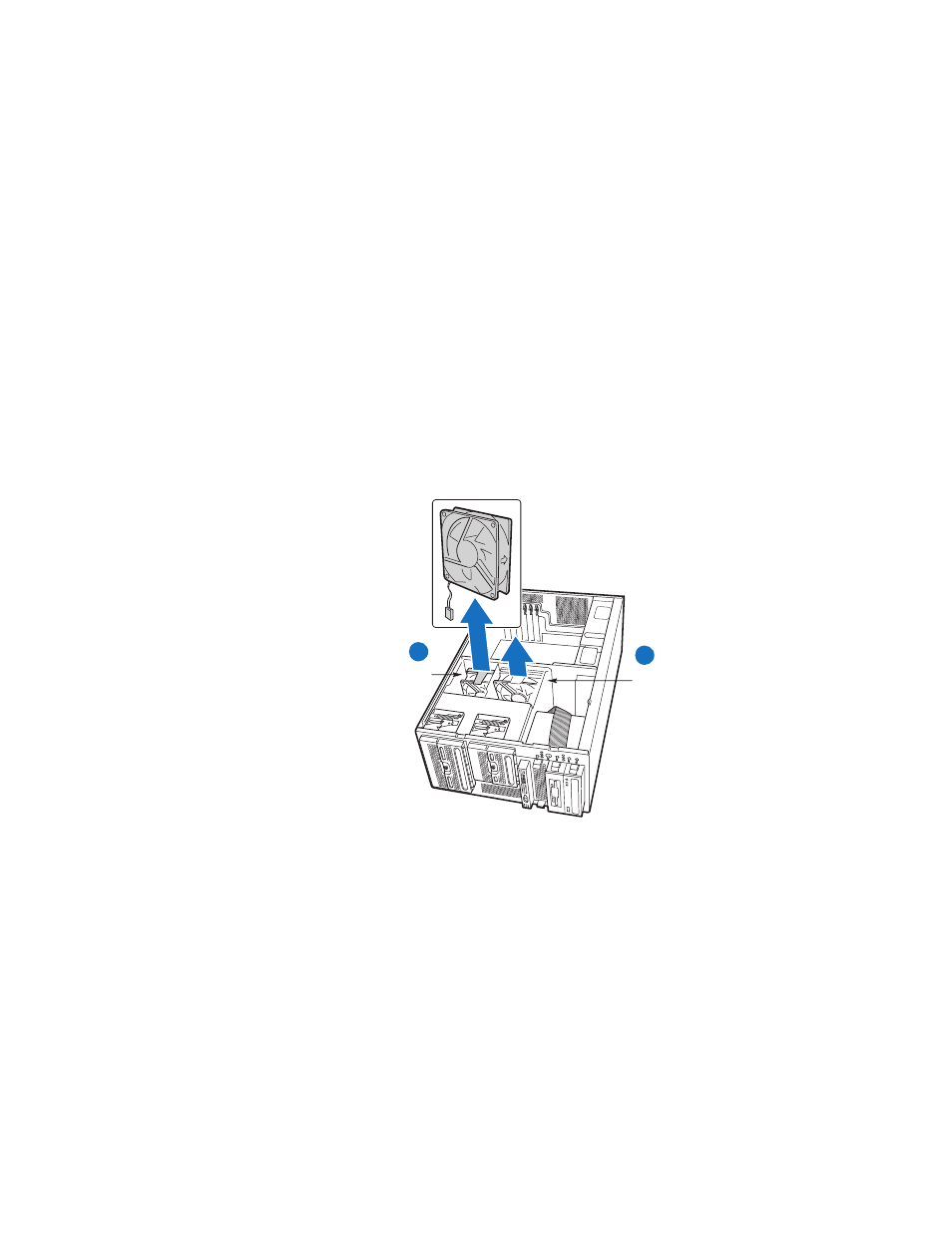

Figure 14. Removing a Fixed Fan
6. Install new 92-mm or 120-mm fixed fan.
7. Connect fan power cable to the server board. See the Intel
® server board Quick
Start User’s Guide or User Guide for appropriate connection location.
8. Re-install the chassis cover. For instructions, see “Installing the Chassis Cover” on
page 17 .
9. Plug all peripheral devices and the AC power cable into the server and then power
up the server.
TP00991
B A
120-mm
Fixed Fan
92-mm
Fixed Fan
