Intel® Server Chassis SC5400 User’s Guide
41
Routing Data Cables to Fixed Drives
Note: Front panel, USB and one IDE cable are pre-routed by the factory. SAS or SATA cables
are supplied with the server board and hot-swap drive accessory kits. No cables are
supplied with the fixed drive bay kit.
•
Route SAS/SATA data cables through the chassis openings located near the bottom
of the drive cage.
•
Connect data cables to the respective fixed drive and to the appropriate connector on
the server board.

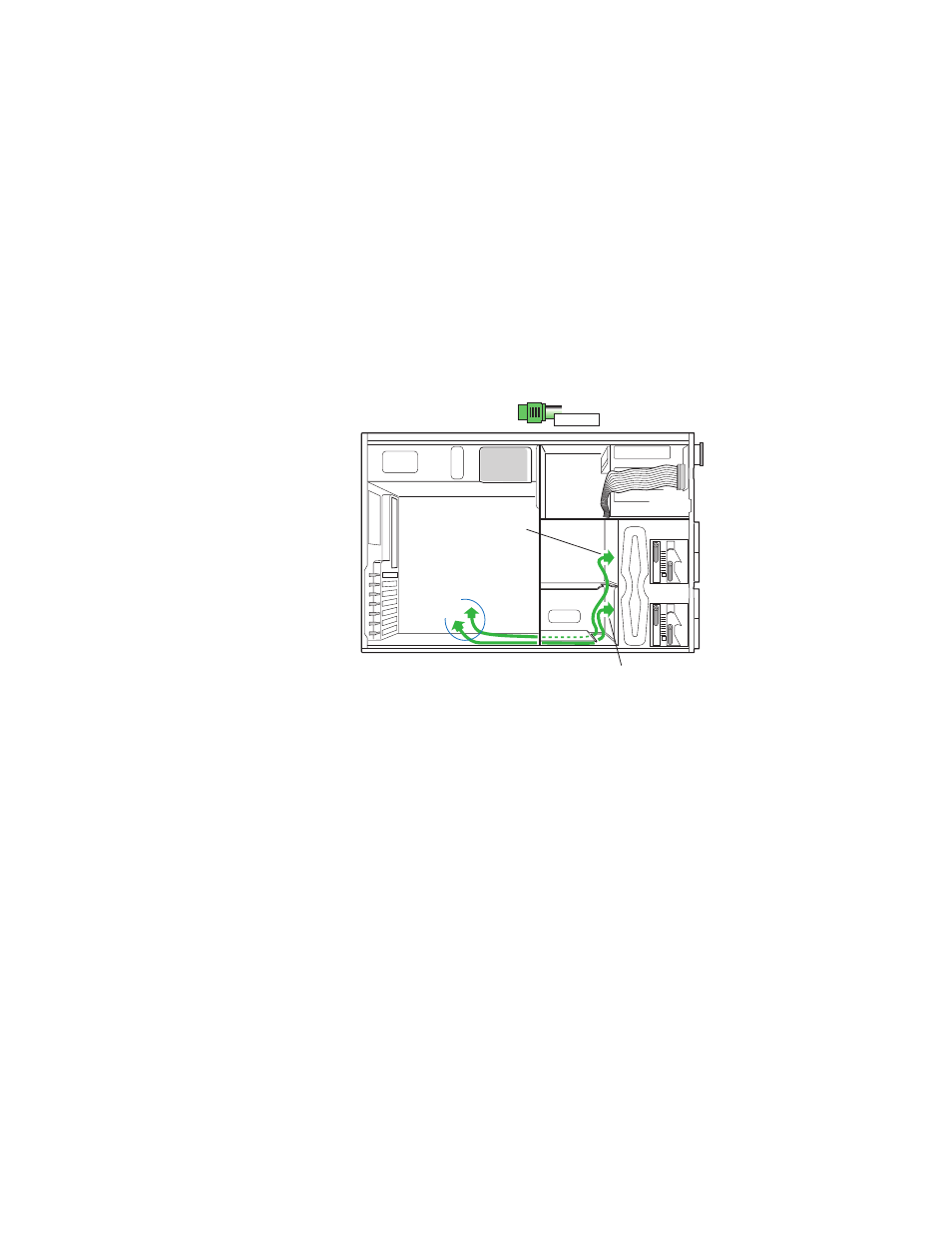

Figure 40. Routing SAS/SATA Data Cables
To 4-Drive
Cage
To 6-Drive Cage
SAS/SATA Cable Routing
Chassis Primary Side View
Chassis Primary Side View
IDE/USB/Front Panel Cables
4/6 Drive
Bay Cables
SAS/SATA
AF000509
