2.6 JPEG CMOS Camera 550710

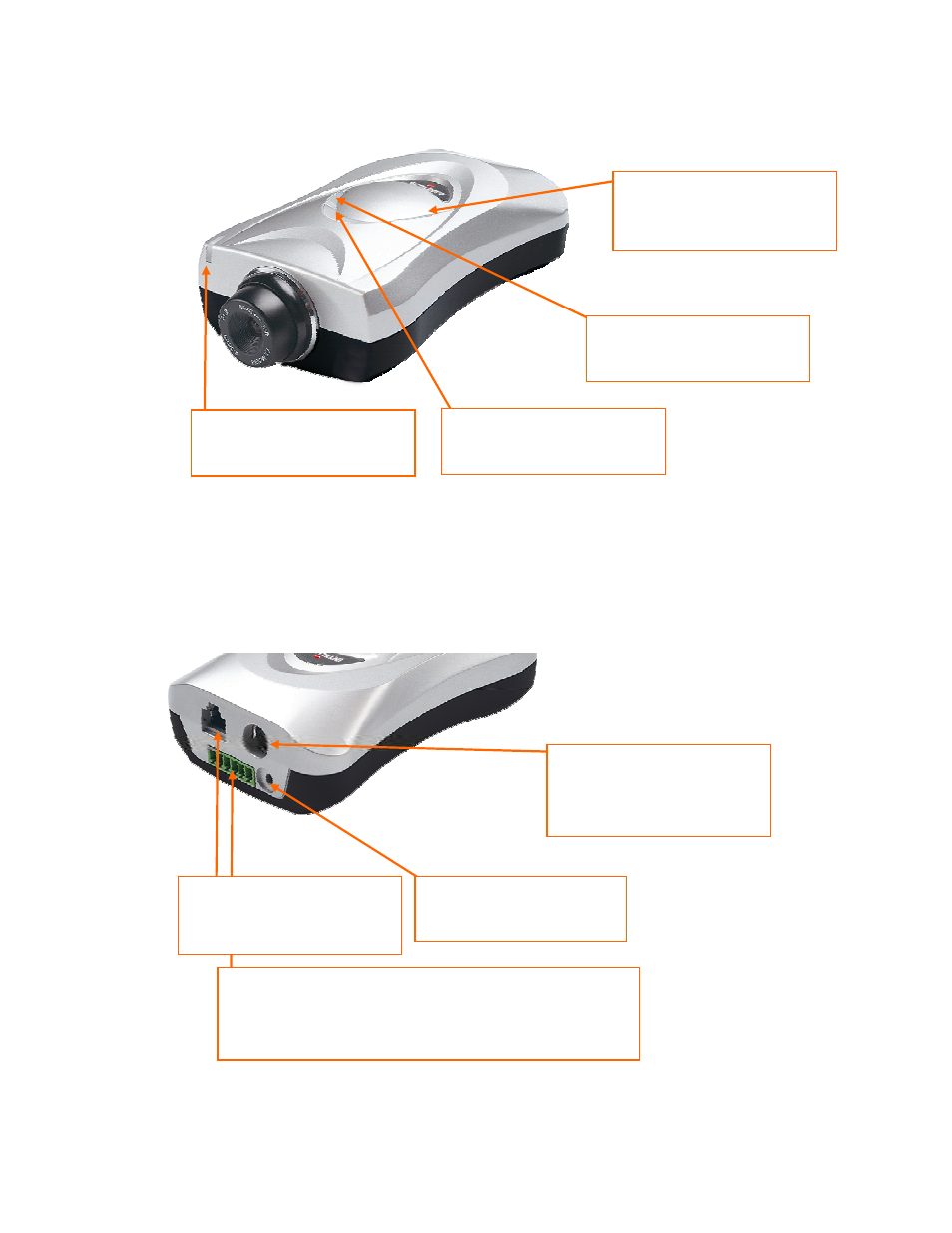

Front/Top View
Rear View
Network Connector
Connect 10Base-T Ethernet or
100Base-TX Fast Ethernet
cable.
Power Connector
Input connector for external
12 V DC Power supply.
RS232 Connector
Serial port connection for
HyperTerminal access; See
Appendix B.
Terminal Block
Connect external devices such as sensors and alarm
devices, or power external devices through the camera; See
Appendix F for details.
Image Capture LED
Flashes when image data is
transmitted over the network.
Operation Status LED
Flashes once every second
during normal operation.
Power LED
Flashes once every second
during normal operation.
Network Activity LED
Solid green indicates an active
network link, flashing green
indicates data traffic.
