IPSO T30 - Manual (Page 9)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Tumblers – T30 and T45
8 4-08-43

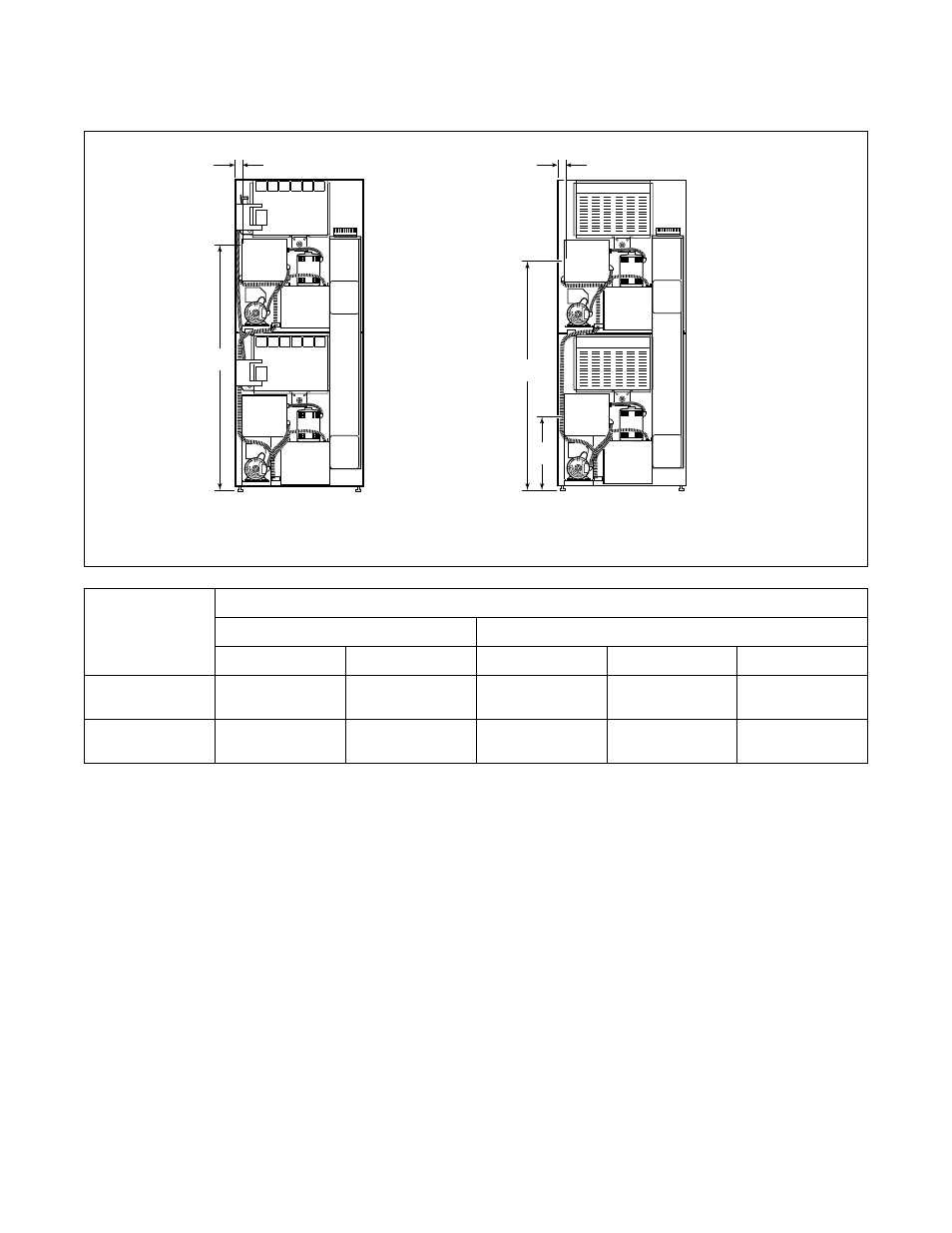

Electrical Connection Locations
TMB1971N
TMB1971N
A
B E
D
C
GAS AND STEAM ELECTRIC
Models
Electric Service
Gas and Steam Models Electric Models
A B C D E
T30
59 in.
(1498 mm)
1.75 in.
(44 mm)
35.63 in.
(905 mm)
73.21 in.
(1859 mm)
2.28 in.
(58 mm)
T45
62.5 in.
(1588 mm)
1.75 in.
(44 mm)
N/A N/A N/A
N/A = Not Applicable
