Tumblers – T30 and T45
4-08-43 7

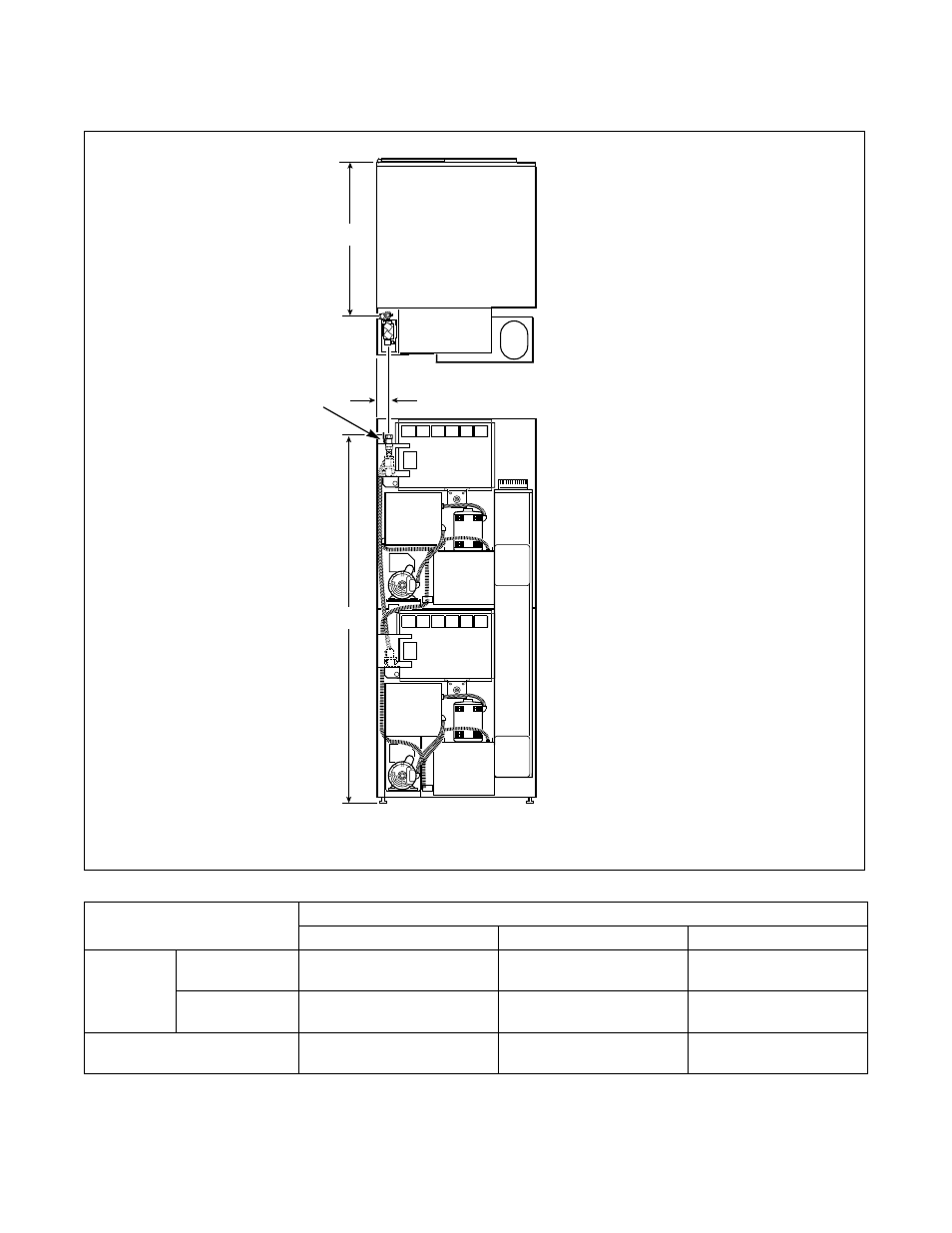

Gas Connection Locations
TMB1970N
1 1/2 in. NPT
TMB1970N
A
B
C
1
Models
Gas Connection
A B C
T30
Non-CE and
Non-Australian
75.20 in.
(1910 mm)
1.74 in.
(44 mm)
36.84 in.
(936 mm)
CE and
Australian
75.28 in.
(1912 mm)
2.5 in.
(64 mm)
30.60 in.
(777 mm)
T45
78.75 in.
(2000 mm)
4.12 in.
(105 mm)
42.88 in.
(1089 mm)
