Viglen SX220 User Guide 46
NOTE: Using the legacy IDE connector on the SCB2 server board to support an IDE
peripheral device in the SX220 server is not a supported configuration.
Using this connector in the SX220 server may produce unreliable operation
of the IDE device and may result in data loss.
If you install a SCSI tape drive, you can connect it one of two ways:
•
To the on-board SCSI controller. This requires that you connect the backplane
to an add-in RAID or SCSI controller.
•
To an add-in SCSI controller board. This allows you to leave the backplane
connected to the on-board SCSI controller.
Mounting the Tape Drive
1. Remove the chassis cover.
2. Remove the blank panel from the bay.
3. Push on the retainer clip at the rear of the carrier (A) to release it from the
chassis.
4. Remove the carrier by sliding it toward the front of the chassis.
5. Set any jumpers and/or switches on your tape drive (B) according to the drive
manufacturer’s instructions.
6. Install the tape drive in the carrier.
7. Insert the carrier/drive assembly in the empty bay and slide it toward the rear of
the chassis until the retainer clip latches.

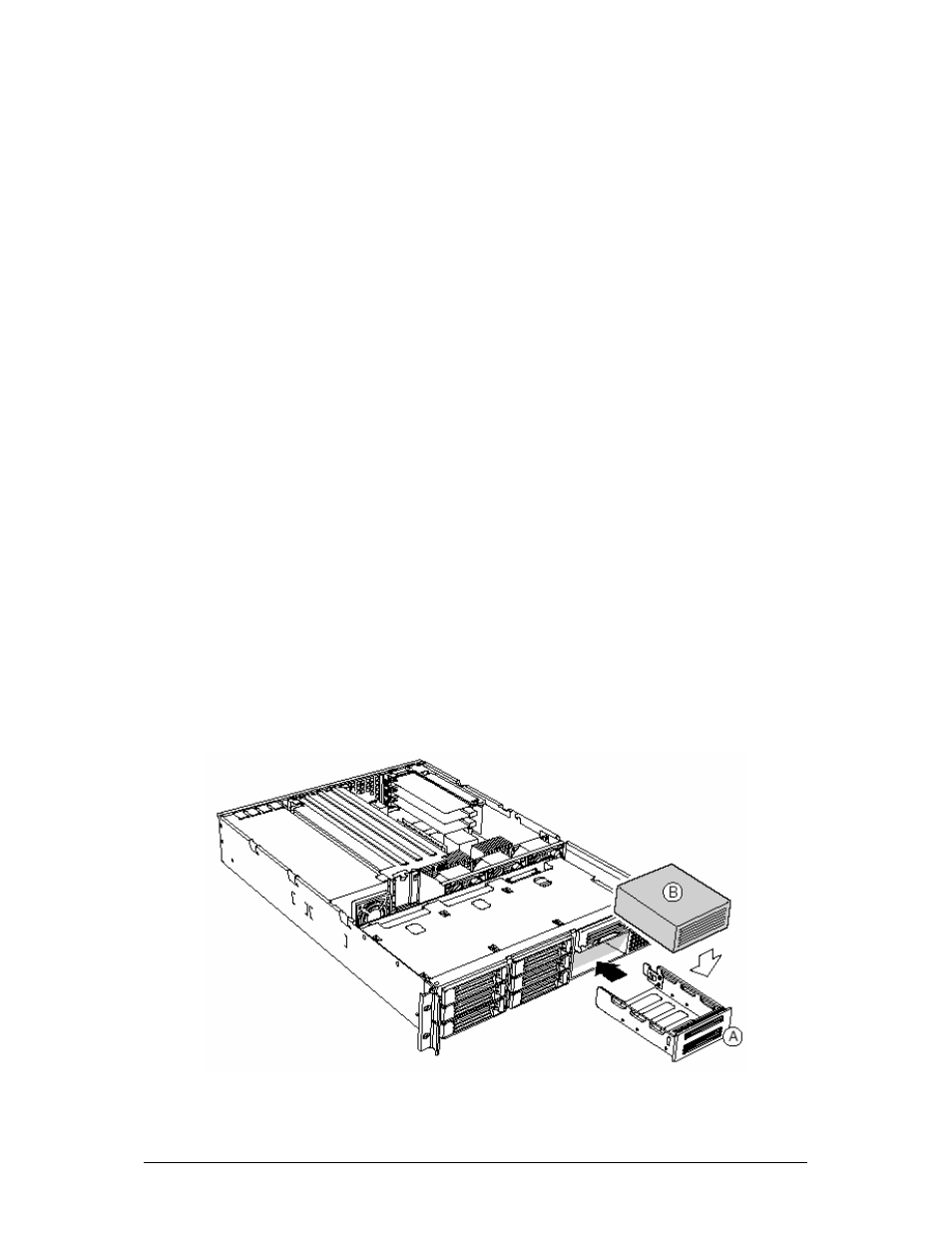

Figure 28: Mounting a Tape Drive
