Viglen SX220 User Guide

11.

Reinstall a carrier/air baffle in any bays where you are not installing a
carrier/drive.

Installing a CD-ROM Drive/FDD Module

The SX220 server is supplied with a CD-ROM drive and a floppy disk drive already
installed in the Flex Bay. The blow steps will help you to re-install the unit if it has
been removed to make way for an additional SCSI hard disk drive.

1. Remove the filler panel and plug from the front of the chassis.

2. Ensure the handle bar (A) on the front of the module is rotated to the down

position.

3. Insert the module into the flex bay and slide it back until you feel the connectors

touch.

With your thumbs positioned above the handle bar indentations (B), push the
module in until it locks in place.

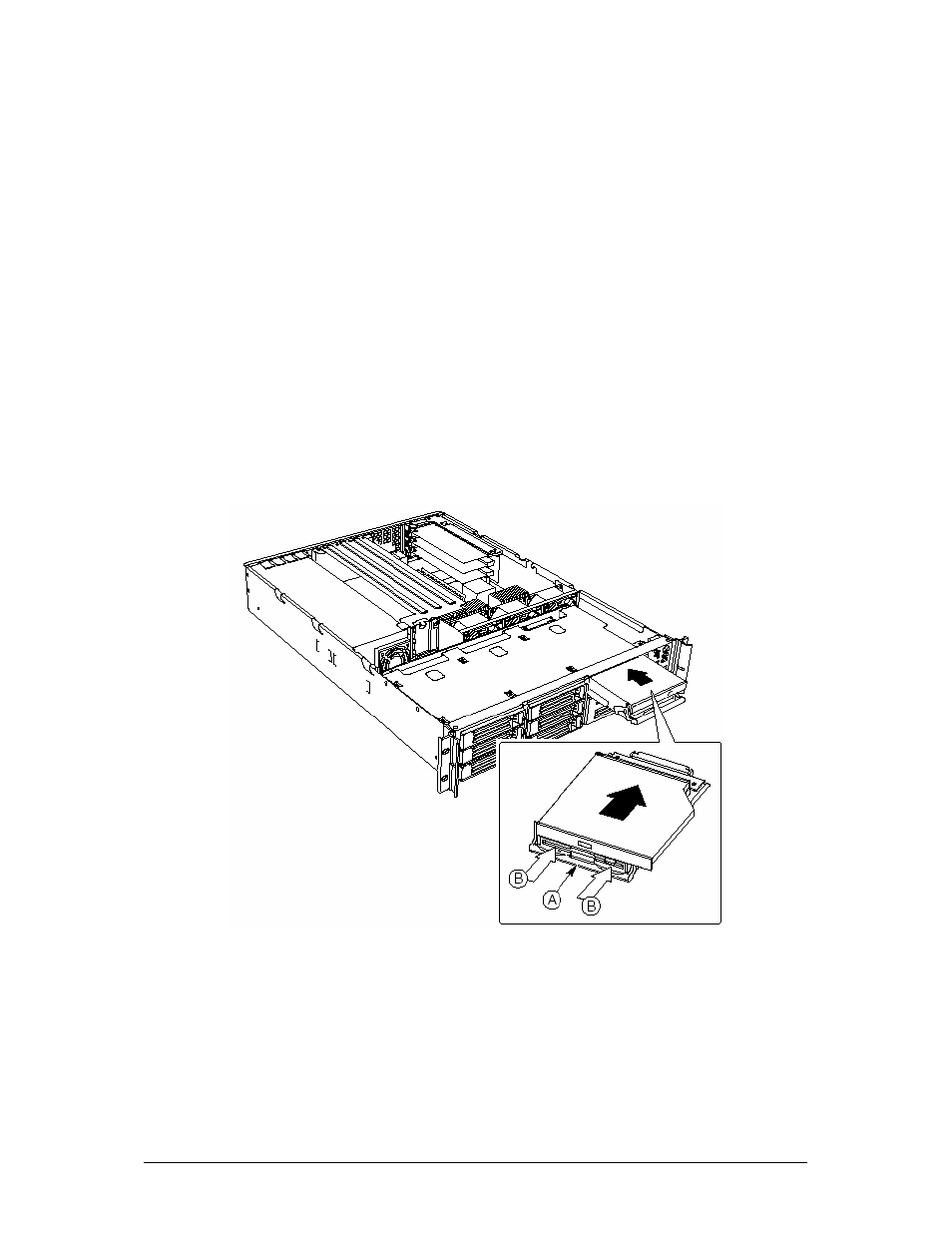

Figure 27: Installing a CDROM/FDD Module

Installing a Tape Drive

You may purchase a tape drive and install it in the 3.5-inch drive bay using the
carrier provided. SCSI tape drives are recommended due to the cable length
required. If you install an IDE tape drive, you must install an IDE add-in controller
card. The cable routing will be similar to what is shown for a SCSI tape drive.
