Viglen SX220 User Guide
14
Back Panel Connectors

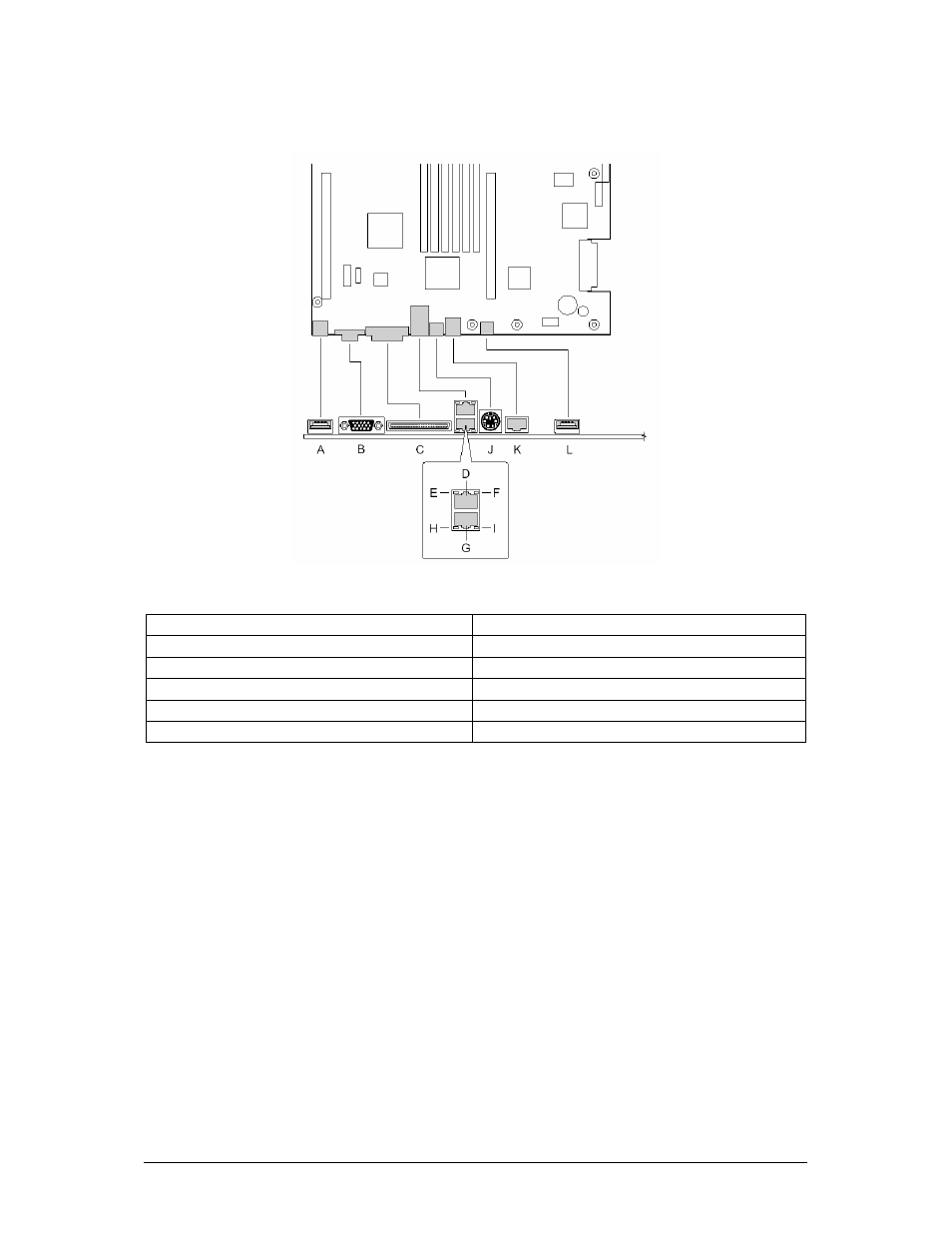

Figure 5: Back Plane Connectors
A – USB 1 connector
G – NIC 1 RJ-45 connector
B – Video connector
H – Green Status LED
C – SCSI connector
I – Yellow Status LED
D – NIC 2 RJ-45 connector
J – PS/2 keyboard/mouse connector
E – Green Status LED K
– RJ-45 serial port
F – Yellow Status LED L
– USB 2 connector
