Viglen SX220 User Guide 9
Chassis Back I/O Ports and Features
The back panel provides connectors for the server board, slots for add-in cards, and
the power supply for the server. Figure 3 identifies the features of the back panel.

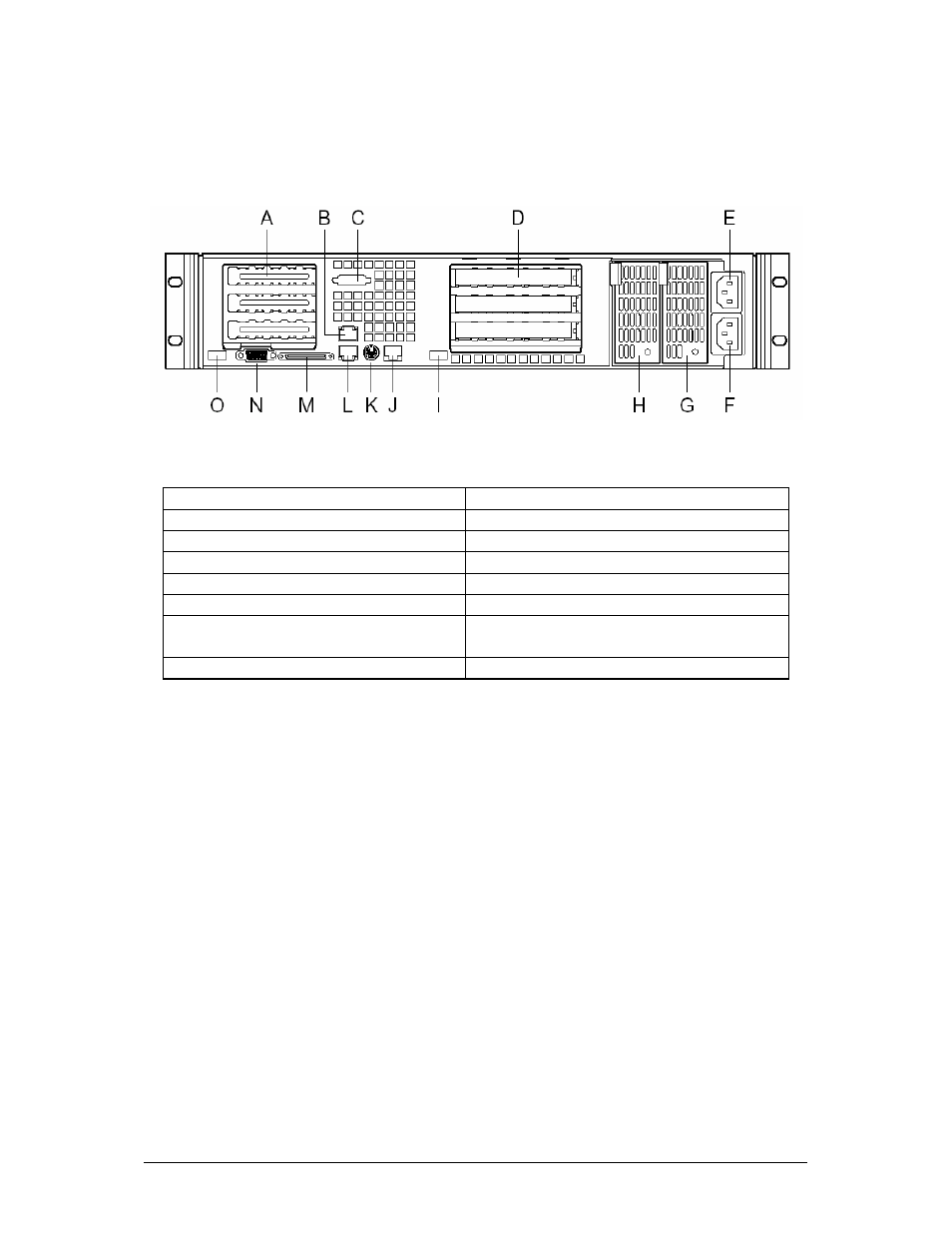

Figure 3: Chassis Back I/O Ports and Features
A – PCI card bracket (low profile) I – USB connector 2
B – RJ45 NIC 2 connector J – RJ45 serial 2 port
C – Serial 1 port mounting hole K – PS/2* mouse/keyboard connector
D – PCI card bracket (full-height) L – RJ45 NIC 1 connector
E – AC power input (primary) M – SCSI connector
F – AC power input (redundant) N – Video connector
G – Power supply module,
redundant O – USB connector 1
H – Power supply module, primary
