If the actual transfer amount differs from the amount indicated by TL, the
target creates the following status and sense data:

Status: B©00001π (CHECK CONDITION)

Sense key: X©0π (NOSENSE)

Sense data (VALID) : 1

Sense data (ILI) : 1

(Difference in transfer amount)

Sense data (INFORMATION) : TL indicated transfer amount subtracted

by actual transfer amount

Note:

For the read sequence, see Section 4.7.3.

(2)

DATA IN phase (target Æ initiator)

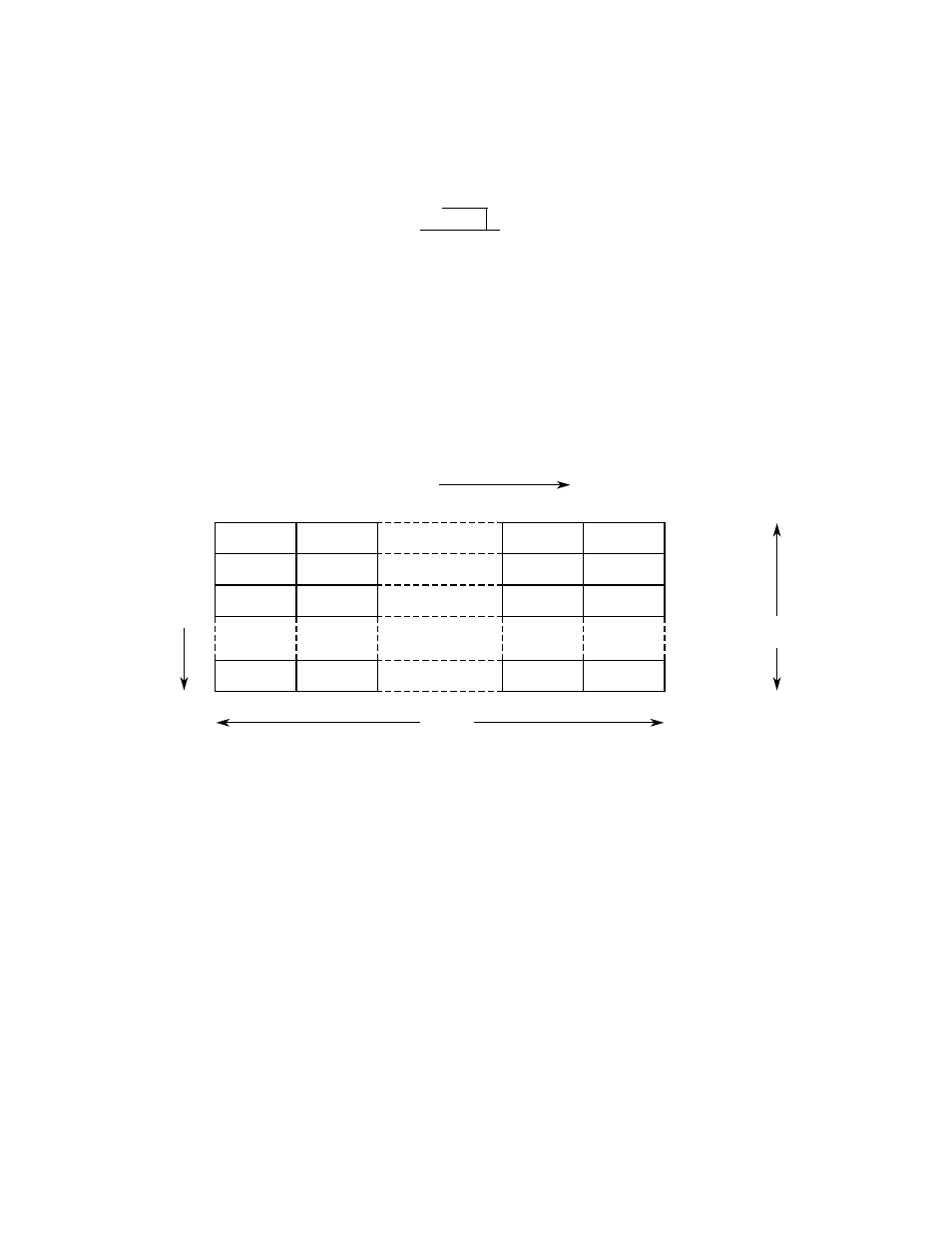

a. Image data:

(DATA TYPE CODE = X©00π)
(Not compressed)

ULX

Pixel 1

Pixel 2

i + 1

i + 2

2i + 1

2i + 2

i (j-1) + 1

i (j-1) + 2

i - 1

2i - 1

3i - 1

ij - 1

Pixel ij

Raster line 1

Raster line 2

Raster line 3

Raster line j

Vertical
scan
direction

ULY

i pixels

j pixels

Horizontal scan direction

The following format is the data format that this scanner uses when
transferring the image data of a window comprising i ¥ j pixels.
