PREPARATION FOR USE

PREPARATION

FOR

USE

CABLE CONNECTIONS

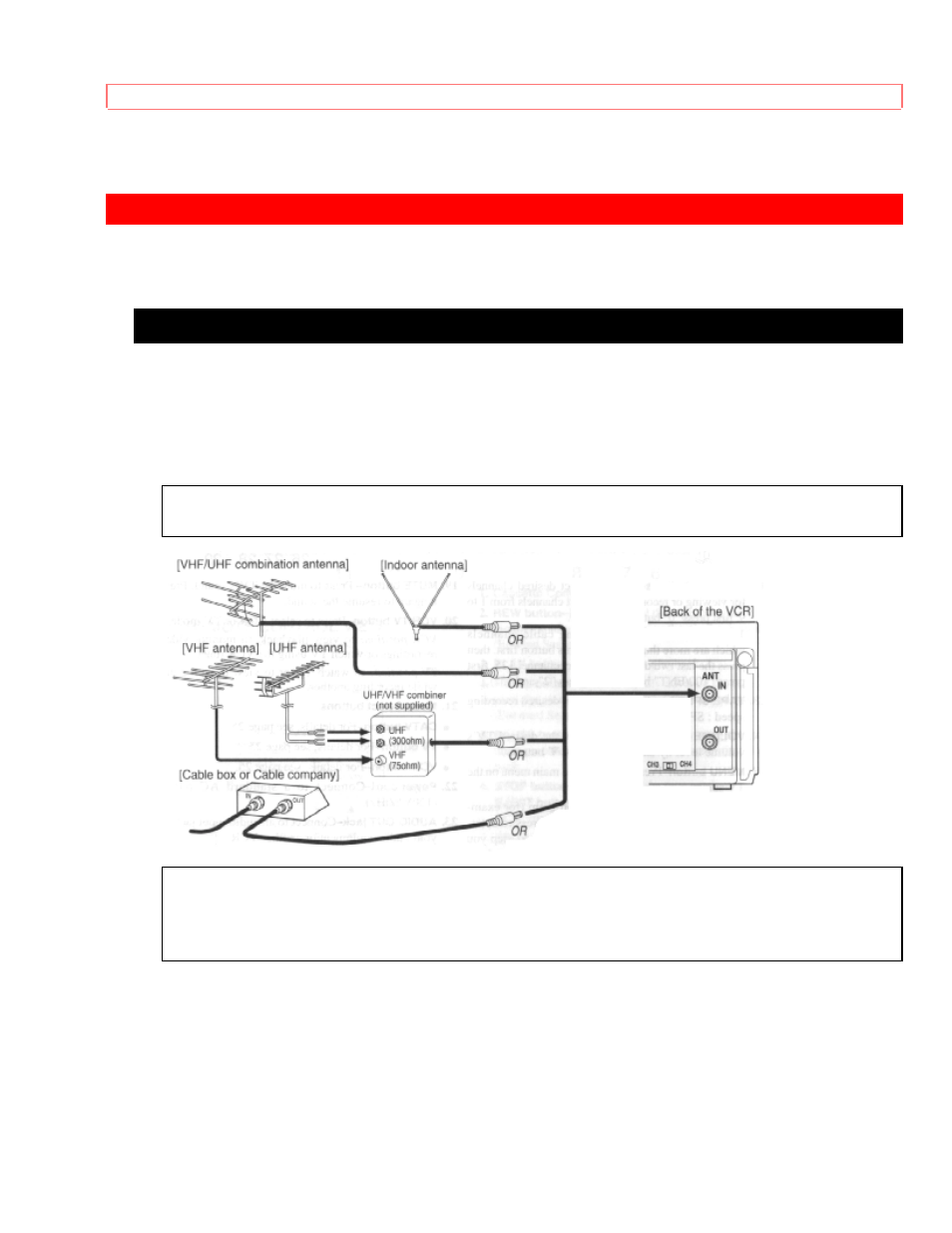

For some of the most common types of connections, see the following drawings. Use
only one connection. For any further complex connections, please contact your local
dealer or other qualified persons. (You may need additional accessories which are not
supplied).

1 Disconnect the antenna or cable from your TV.
2 Connect the antenna or cable to the ANT.IN jack of your VCR.

3 Connect one end of the coaxial cable (supplied) to the ANT.OUT jack of your
VCR.
4 Connect the other end of the coaxial cable (supplied) to the UHF/VHF antenna
jacks.
