15
Model Description For which HP UPS Part number
UPS options – for HP 3Phase Rack and Parallel UPS
Model Description Part number
Power cords/Jumper cables
HP 5' IEC309 516P
intl Jumper Cable Power Cord – Jumper Cable IEC309 16A, 5Pin 1.65 m 460153-005
HP 10' IEC309 516P
intl Jumper Cable Power Cord – Jumper Cable IEC309 16A, 5Pin 3.3 m 460153-010
HP 15' IEC309 516P
intl Jumper Cable Power Cord – Jumper Cable IEC309 16A, 5Pin 4.95 m 460153-015
Power distribution rack (PDR)
New decentralised power distribution on rack row level (using a single industry standard rack)
• Allows shorter, smaller cable runs – increases airflow, uses less cooling power and improves ROI
• Preconfigured power cables (whips) – save installation labour and improve change management
• Fully redundant, dual high amperage inputs and outputs – up to 2 x 200 A/2 x 138 kVA
• Input options – facility power, facility UPS, HP 3Phase Parallel UPS
• Output options – capable of mixing high voltage and 3Phase outputs, short preconfigured whips from
PDR to racks/rack PDUs
• Improved power monitoring – individual branch circuit monitoring
• Independent surge suppression – dual transient voltage surge suppression (TVSS)

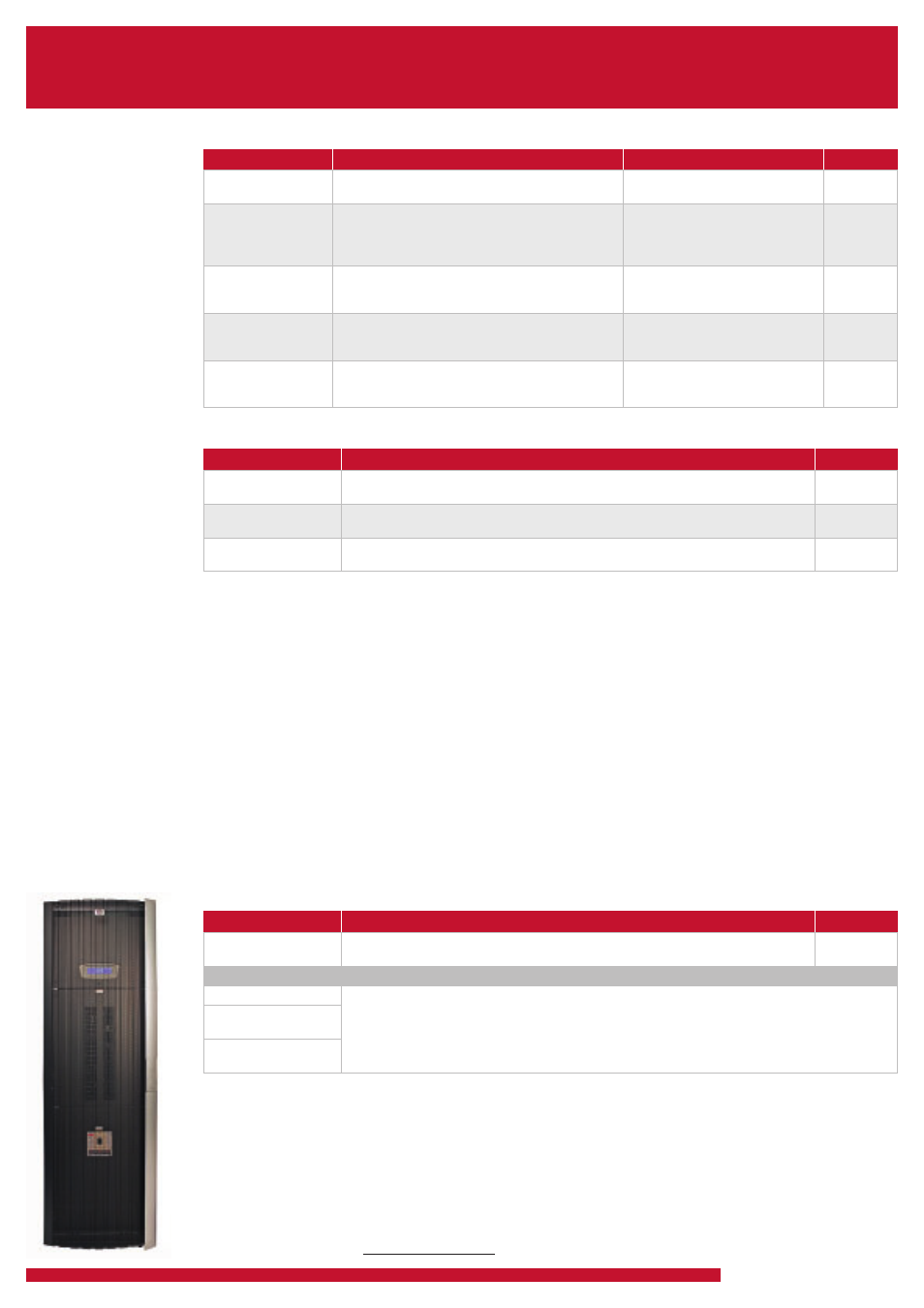

HP Power Distribution Rack (PDR)
Model Description Part number
HP Power Distribution Rack,
intl 200 Amp Dual Input Power Distribution Rack, intl AF515A
Related options
Circuit brakers (intl) For further info, see quick specs
Preconfigured power cabling
(intl)
Startup and commissioning
service
For more information, visit www.hp.com/go/pdr
HP R12000/3 intl UPS
Output Module Rackmount UPS Output Module, with 2 x IEC309 16A
connectors (3Phase) RP12000/3
(this module is included with R12000/3) AF441A
HP 3Phase UPS ERM
Module UPS Expansion Runtime Module (extended battery)
3U extends backup time up to four (4) ERMs per UPS R8000/3
R12000/3
RP36000/3
RP12000/3 AF434A
HP 3Phase 16A intl Mod
PDU, Core unit Core unit only, input: 3Phase, IEC309 16A 4Pin, attached
input cord, connects into 3Phase facility input or to a 3Phase
UPS; Output: 6 x IEC320 C19 (single phase) R8000/3
R12000/3 AF513A
HP 11 kVA S1316
Monitored PDU (intl) Single input, 3Phase, 16A, intl
Input: 1 x IEC309, 5Pin 16A
Output: 39/36 C13 (10A) plus 3 C19 (16A) R8000/3
R12000/3 AF508A
HP 22 kVA S2316
Monitored PDU (intl) Dual input, 3Phase, 16A, intl
Input: 2 x IEC309, 5Pin 16A
Output: 78/72 (2 x 36) C13 (10A) plus 6 (2 x 3) C19 R12000/3
RP12000/3 and 36000/3 – with
additional UPS output module (option) AF507A
