14

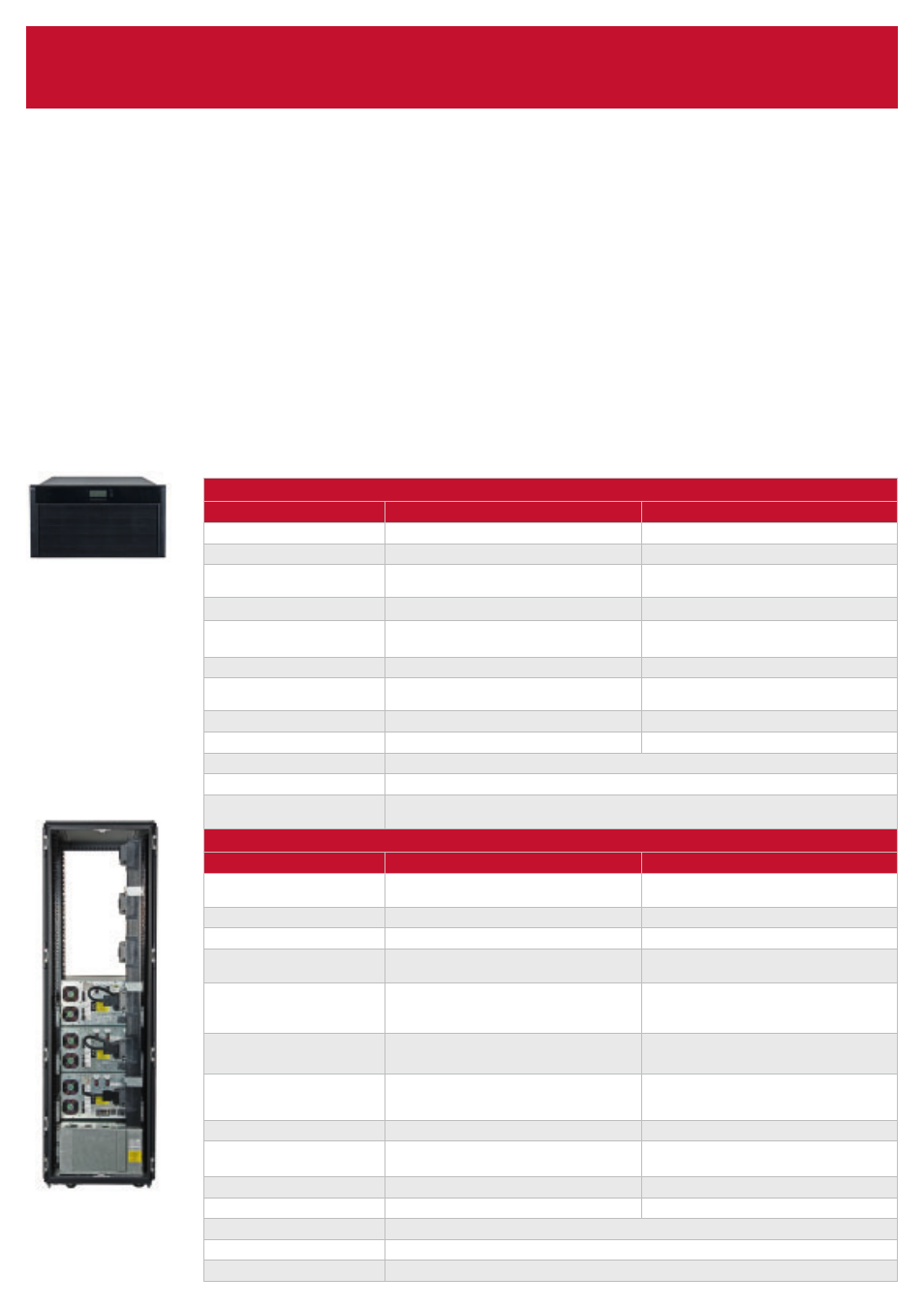

3Phase power solutions (UPS, PDR)
HP 3Phase UPS Modules (Rackmount)
Model R8000/3 Intl R12000/3 Intl
Part number AF432A AF430A
Form factor Rack module/6U Rack module/6U
INput power
INput connections (INTL model) 400 V 3phase
1 x IEC 309 16A (3phase power) 400 V 3phase
1 x IEC 309 32A (3phase power)
OUTput power rating/capacity 8 kVA/8 kW; 400 V 3phase 12 kVA/12 kW; 400 V 3phase
OUTput connections (INTL model) 1 x IEC 309 16A (3phase power) 2 x IEC 309 16A (3phase power) = UPS output module
(AF434A)
Backup time at 80% load 1 12 mins 6 mins
Hot-swap electronic modules & batteries Yes Yes
Weight (kg) 140 140
Optional ERM/part number max. 4/AF434A max. 4/AF434A
Communication HP UPS Management module (AF401A) included; module with one ethernet port and five serial ports (RJ45)
Communication software Embedded HP Power Management software on HP UPS Management module (AF401A)
Warranty 3-Year HP warranty (3-1-1), HP battery pre-failure warranty and integrated Care Pack Support at no additional
cost
HP 3Phase Parallel UPS (preconfigured Rack & module)
Model RP36000/3 Intl RP12000/3 Intl
Description Preconfigured parallel rack UPS
Rack 42U with three UPS modules and power bar Additional 12 kVA UPS module for RP36000/3 (to be
added into the parallel rack UPS (RP36000/3))
Part number AF439A AF437A
Form factor Rack 42U (HP 10000 Series G2, 10642) Rack module/6U
INput power
INput connections (intl model) 400 V 3phase
Hard wire terminal 400 V 3phase
to power bus bar (on RP36000/3)
OUTput power rating/capacity non-redundant: 36 kVA/36 kW
n+1 redundant: 24 kVA/24 kW – expandable up to
60 kVA (n+1) 12 kVA/12 kW; 400 V 3phase
OUTput connections (intl model) Hard wire terminal; Optional (add on): HP R12000/3
Intl UPS Output Module (AF441A) Connector to power bus bar (on RP36000/3) or
optional: UPS output module (AF441A)
INput power
INput connections (intl model) 400 V 3Phase
1 x IEC309 16A (3Phase power) 400 V 3Phase
1 x IEC309 32A (3Phase power)
Backup time at 80% load 1 12 mins 6 mins
Hot-swap electronic modules & batteries Yes Yes
Weight (kg) 578 140
Optional ERM/part number AF434A max. 4/AF434A
Communication HP UPS Management module (AF401A) included; module with one ethernet port and five serial ports (RJ45)
Communication software Embedded HP Power Management software on HP UPS Management module (AF401A)
Warranty 3-Year HP warranty (3-1-1), HP battery pre-failure warranty
HP 3Phase power solutions
New zoned power approach with power protection and power distribution for zone/rack row level
• Adding power protection and distribution capacity when and where needed
• Getting the reliability of large central systems in a rack footprint
• Enable adding capacity to otherwise full data centres
• High energy-efficiency (97% efficient)
HP 3Phase UPS solutions – 3Phase UPS modules and Parallel UPS (preconfigured UPS Rack)
• UPS modules with 8 kVA and 12 kVA capacity
• Parallel UPS with 36 kVA capacity – scalable up to 60 kVA in a single 19" rack
• High-density design, lightweight, hot-swappable battery and electronics modules
• Intelligent automated maintenance bypass in each UPS module/chassis
• Integrated Care Pack Support for the single Rack UPS modules (R8000/3 and R12000/3) – HP Server
and Storage Care Pack supports HP UPSs up to 12 kVA at no additional cost
