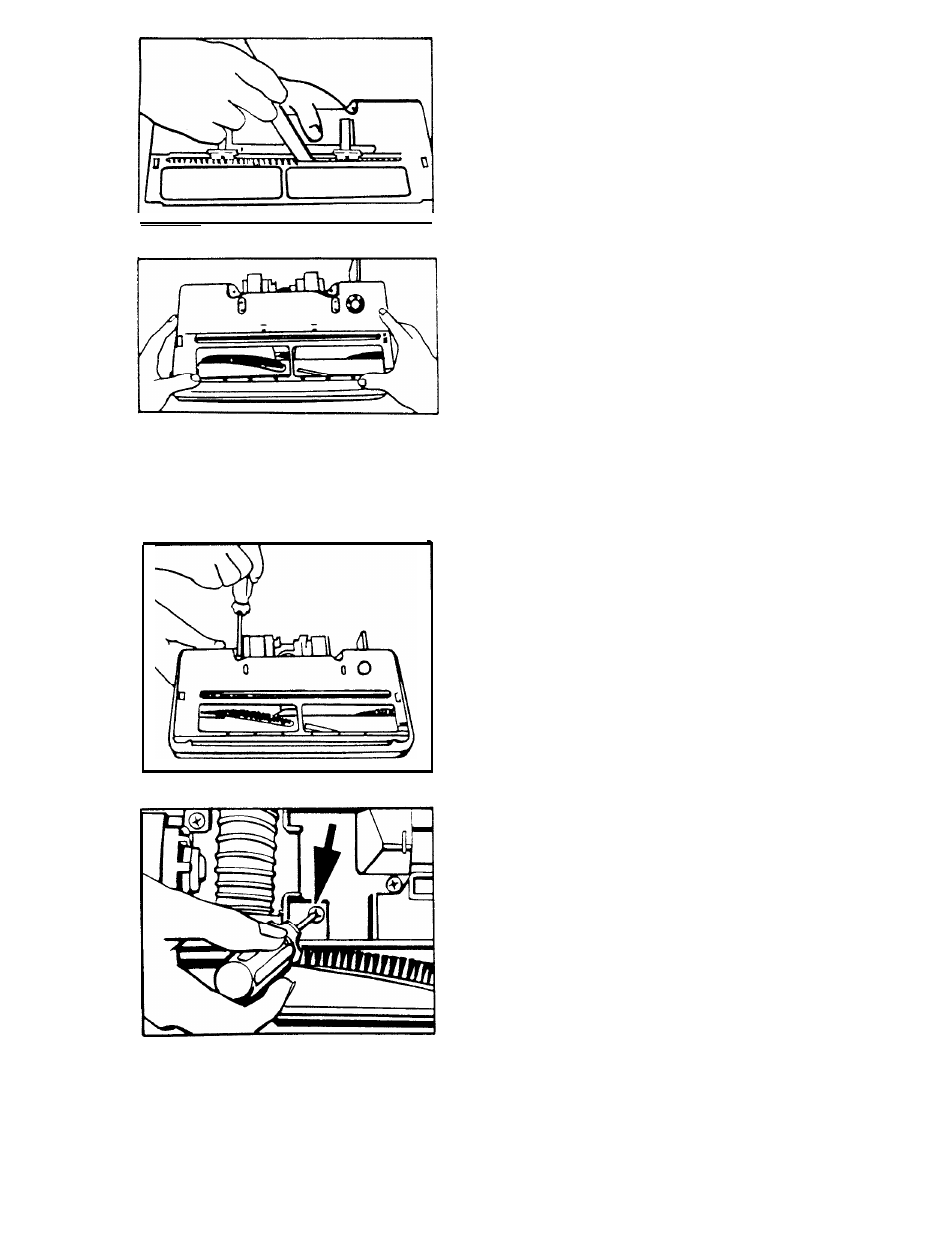

Run a thin utensil such as a table
knife around the brush to make
certain all the bristles enter the
slot in the bottom plate.
Replace bottom plate by fitting
the plate over the lip at the front
of the nozzle housing. Line up
the slots over the wheels and
position holes in bottom plate
over screw mountings. Replace
screws.
Power nozzle with headlight
The headlight located on top of the power nozzle operates when the
cleaner is turned on.
How to replace the
headlight
Disconnect cleaner from
electrical outlet and
disconnect power nozzle from
extension wand.
1. Turn power nozzle over.
Remove metal bottom plate by
unscrewing the 2 Phillips head
screws at the back of the nozzle.
Lift plate off to release from
nozzle housing.
2. Remove screw on right side of
nozzle hose as shown, to release
headlight cover and lens.
