37

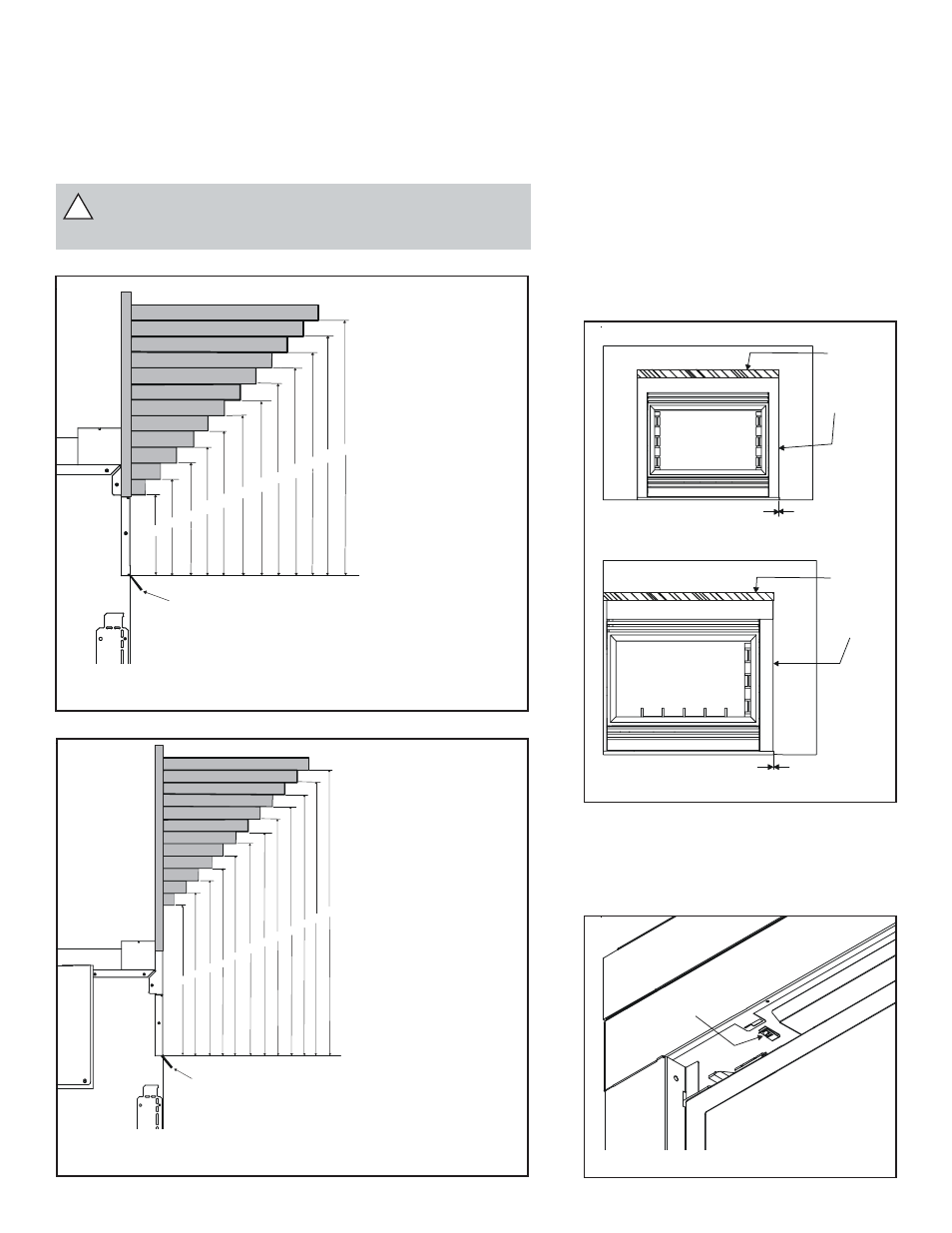

Step 9. Finishing
Figures 38 and 39 show the minimum vertical and corresponding
maximum horizontal dimensions of fireplace mantels or other
combustible projections above the top front edge of the fireplace. See
Figures 4 and 5 for other fireplace clearances. Only non-combustible
materials may be used to cover the black fireplace front.
WARNING: WHEN FINISHING THE FIREPLACE, NEVER
OBSTRUCT OR MODIFY THE AIR INLET/OUTLET GRILLES
IN ANY MANNER.
!
Figure 38.
CAUTION: IF JOINTS BETWEEN THE FIN-
ISHED WALLS AND THE FIREPLACE SUR-
ROUND (TOP AND SIDES) ARE SEALED, A
300°
F. MINIMUM SEALANT MATERIAL
MUST BE USED. THESE JOINTS ARE NOT
REQUIRED TO BE SEALED. ONLY NON-
COMBUSTIBLE MATERIAL (USING 300° F.
MINIMUM ADHESIVE, IF NEEDED) CAN BE
APPLIED AS FACING TO THE FIREPLACE
SURROUND. SEE THE DIAGRAM BELOW.
NOTE: Sheetrock or other combustible
material such as wood can be placed on
the top edge and sides of the fireplace.
Hearth Extensions
A hearth extension may be desirable for
aesthetic reasons. However, ANSI or CAN/CGA
testing standards do not require hearth
extensions for gas fireplace appliances.
Figure 40. Sealant Material
ST-HVB-IPI
TOP EDGE
SIDE EDGE
PIER-HVB-IPI and L&RCOR-HVB-IPI
TOP EDGE
SIDE EDGE
0” GAP
0” GAP
Figure 39.
NOTE: 12” mantel
at 16” above hood.
NOTE: 12” mantel at
23” above hood.
4”
5”
6”
7”
8”
9”
10”
11”
12”
2”
3”
5”
6”
7”
8”
9”
10”
11”
12”
1”
HOOD
13”
14”
15”
16”
MANTEL
*
Mantel dimensions shown are
for standard hood on models:
PIER-HVB-IPI, LCOR-HVB-
IPI, and RCOR-HVB-IPI. *
To use mantel dimensions
shown the fireplace must have
the standard hood replaced
with a larger hood (060-143)
on model: ST-HVB-IPI. *
Minimum Vertical and Maximum Horizontal
Dimensions of Combustibles above Fireplace
Minimum Vertical and Maximum Horizontal
Dimensions of Combustibles above Fireplace
4”
5”
6”
7”
2”
3”
8”
9”
10”
11”
12”
1”
HOOD
MANTEL
12”
13”
14”
15”
16”
17”
18”
19”
20”
21”
22”
23”
Mantel dimensions shown are
for standard hood on model:
ST-HVB-IPI *
*
Figure 41. Hood Clip
HOOD CLIP
