Hearth and Home Technologies Heat & Glow Pier-HVB-IPI User Manual
Page 23
23

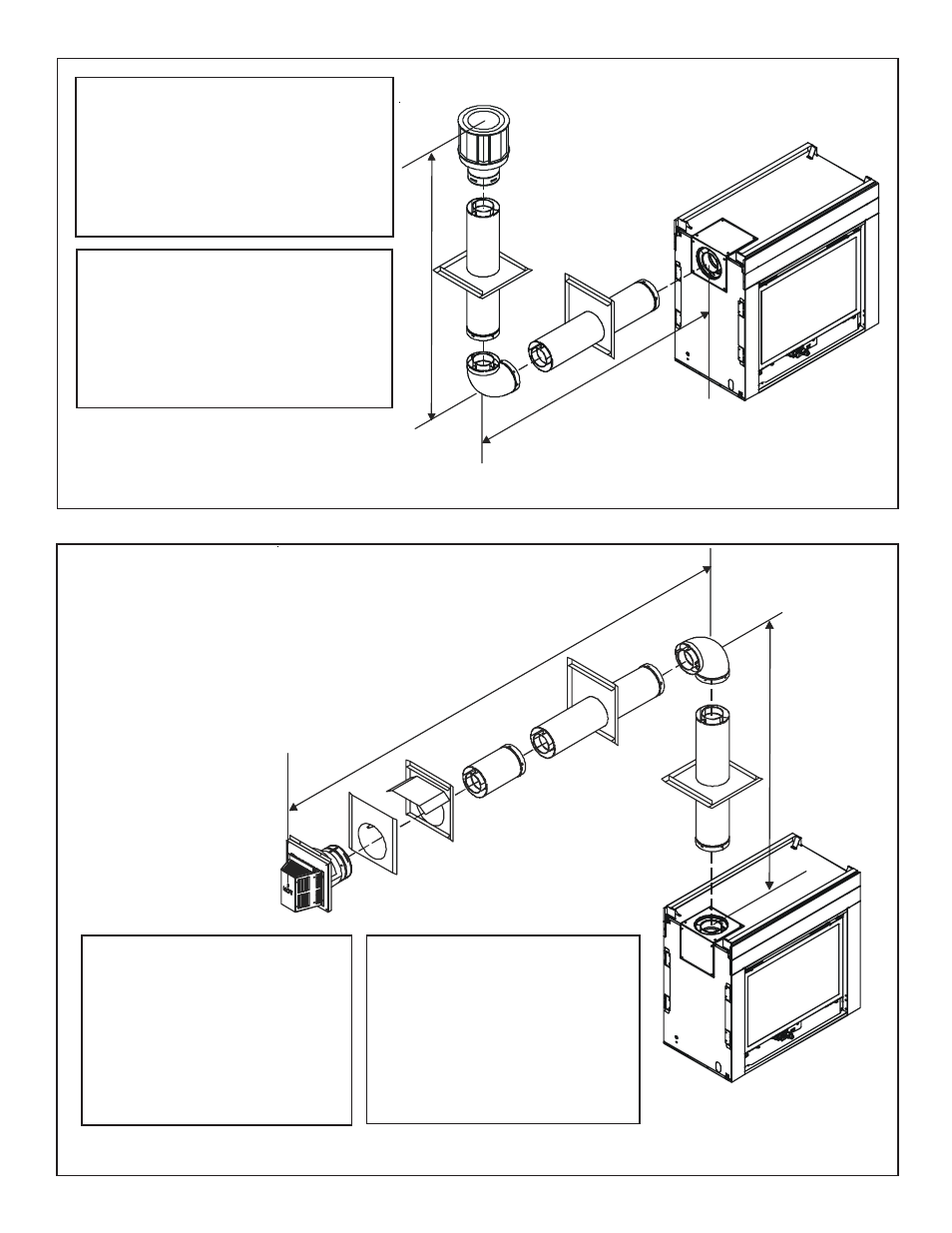

Figure 14. Venting with One 90° Elbow
Figure 13. Venting with One 90° Elbow
V
H
H
V
NATURAL GAS - VENTING WITH ONE 90° ELBOW
V (FT.)
H (FT.)
1' MIN. (305mm)
3' MAX. (914mm)
2' MIN. (610mm)
6' MAX. (1.83m)
3' MIN. (914mm)
9' MAX. (2.7m)
4' MIN. (1.22m)
12' MAX. (3.6m)
5’ MIN. (1.5m)
15’ MAX. (4.5m)
6’ MIN. (1.83m)
18’ MAX. (5.5m)
V + H = 50’ MAX. (15.2m)
(11.3m)
PROPANE - VENTING WITH ONE 90° ELBOW
V (FT.)
H (FT.)
1' MIN. (305mm)
2' MAX. (610mm)
2' MIN. (610mm)
4' MAX. (1.22m)
3' MIN. (914mm)
6’ MAX. (1.83m)
4' MIN. (1.22m)
8' MAX. (2.4m)
5’ MIN. (1.5m)
10' MAX. (3.0m)
6’ MIN. (1.83m)
12' MAX. (3.6m)
V + H = 50’ MAX. (15.2m)
NATURAL GAS
VENTING WITH ONE 90° ELBOW
V (FT.)
H (FT.)
90
0
Elbow on top 2.5’ MAX. (64mm)
1' MIN. (305mm)
3' MAX. (914mm)
2' MIN. (610mm)
6' MAX. (1.83m)
3' MIN. (914mm)
9' MAX. (2.7m)
4' MIN. (1.22m)
12' MAX. (3.6m)
5’ MIN. (1.5m)
15’ MAX. (4.5m)
6’ MIN. (1.83m)
18’ MAX. (5.5m)
V + H = 50’ MAX. (15.2m)
PROPANE
VENTING WITH ONE 90° ELBOW
V (FT.)
H (FT.)
90
0
Elbow on top 2’ MAX. (610mm)
1' MIN. (305mm)
2' MAX. (610mm)
2' MIN. (610mm)
4' MAX. (1.22m)
3' MIN. (914mm)
6’ MAX. (1.83m)
4' MIN. (1.22m)
8' MAX. (2.4m)
5’ MIN. (1.5m)
10' MAX. (3.0m)
6’ MIN. (1.83m)
12' MAX. (3.6m)
V + H = 50’ MAX. (15.2m)
